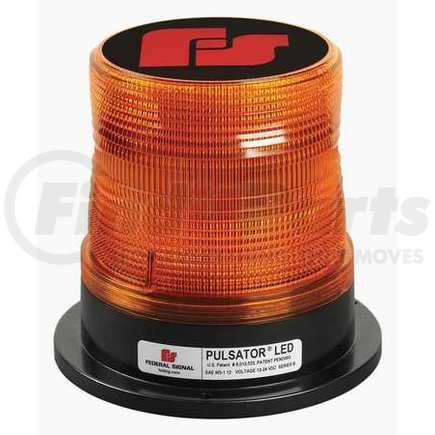

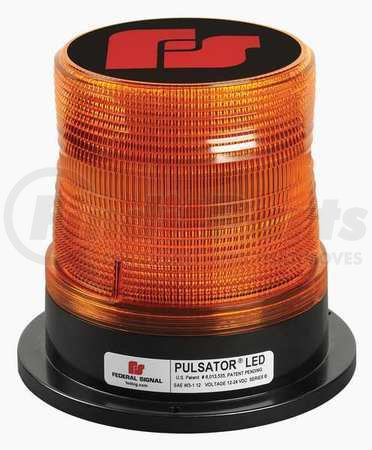

Federal Signal 212650-02SB - PULSATOR LED, PERM./PIPE MNT
- Part Number
- 212650-02SB
- Manufacturer
- FEDERAL SIGNAL
- Description
-
PULSATOR LED, PERM./PIPE MNT
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
FEDERAL SIGNAL part description
- Permanent/1-inch pipe mount
- 12-24VDC
- Amber dome
- Class 2
- LEDNode? technology for zero maintenance
- Black polycarbonate plastic base
- Ten selectable "strobing" flash patterns
- Permanent mount kit included
- Meets SAE J845 Class 1 and SAE J845 Class 2 approved models
- Five-year LED warranty
Technical Specification
| Operating Voltage | 12/24/2010 |
| Amp Draw | 0.80A @ 12.8 V 0.40A @ 25.6 V |
| FPM | Various |
| Flash Patterns | 14 |
| Approvals | Class 1 & 2 |
| Base Material | Polycarbonate |
| Dome Colors | Amber, Blue, Clear, Green and Red |
| Dimensions (D x H) | 6.5" x 6.0" |
| Ship Weight (lbs) | 1.9 |
| Warranty (years) | 5 |
Product Description
LED Pulsator
Product Attributes
| Base Material | Polycarbonate |
| Current Drawn | 0.8 68 |
| Diameter - Vehicle Lighting | 6-1/2 IN |
| Features | Perm/Pipe Mt |
| Flashes Per Minute | 14 |
| Height - Vehicle Lighting | 6 IN |
| Housing Material | Polycarbonate |
| Includes | Pigtail |
| Includes | 1 Pipe Bottom IN |
| Lens Color - Vehicle Lighting | Amber |
| Lens Design | Round |
| Lens Material | Polycarbonate |
| Light Type - Vehicle Lighting | Flashing |
| Lighting Technology - Vehicle Lighting | LED |
| Mounting - Vehicle Lighting | Permanent |
| Number Of Flash Patterns - Vehicle Lighting | 14 |
| Number of LEDs | 2 |
| Part Type | Led Pulsator |
| Voltage | 12 - 24 2H |
| Width - Vehicle Lighting | 6-1/2 IN |
| Wiring Connection - Vehicle Lighting | Pigtail |
