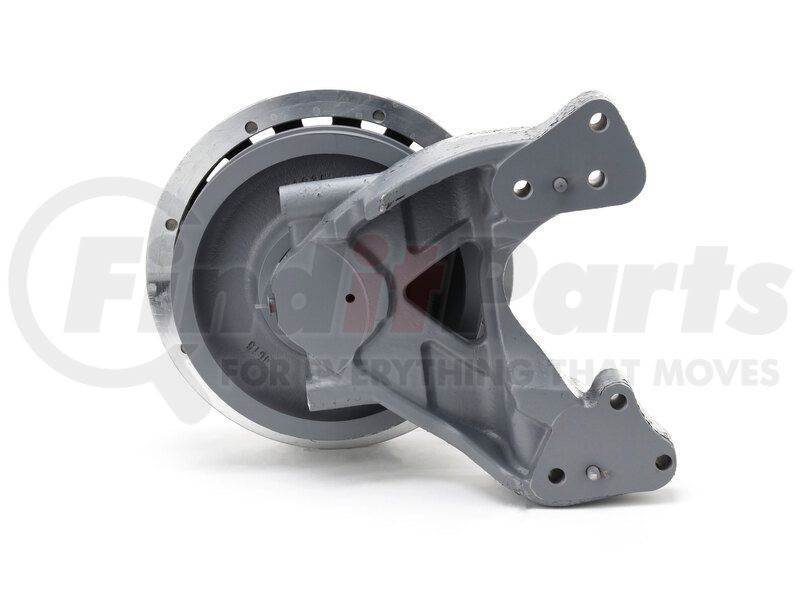

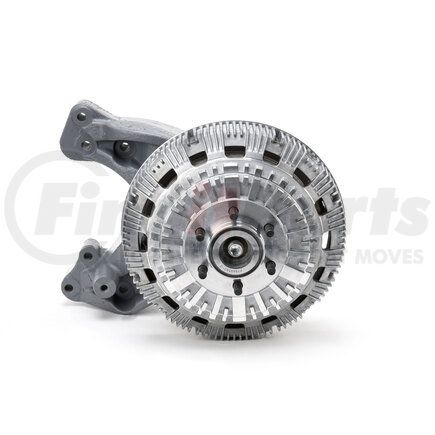

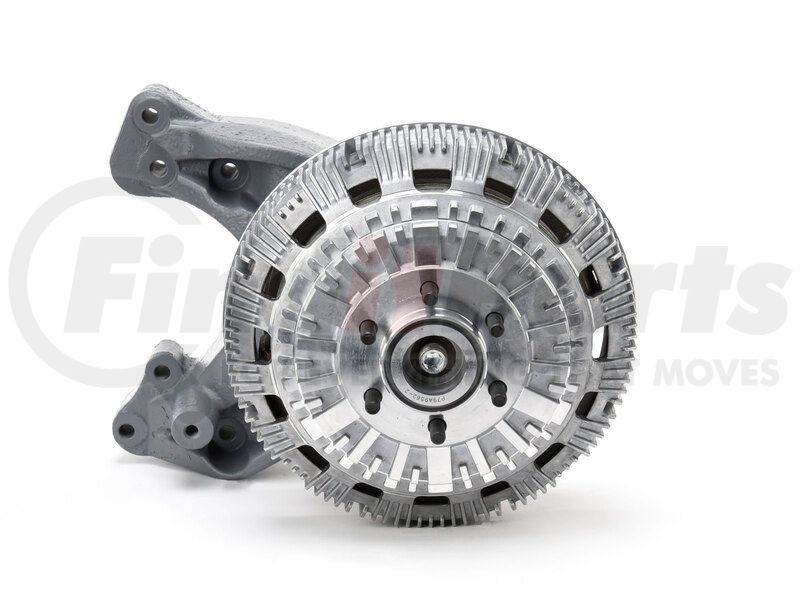

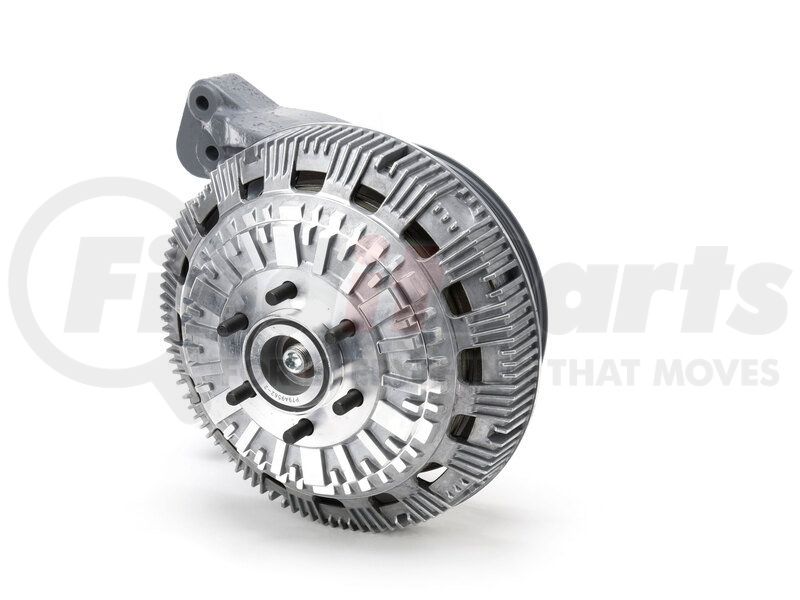

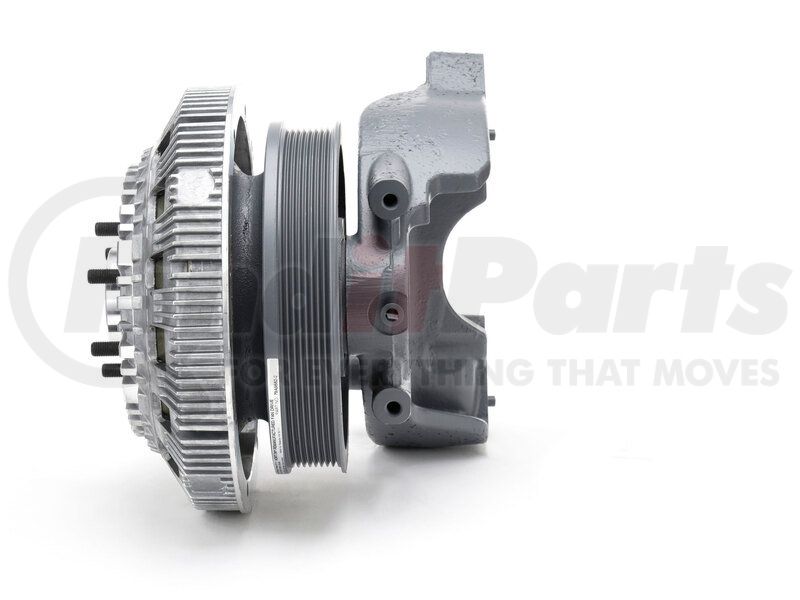

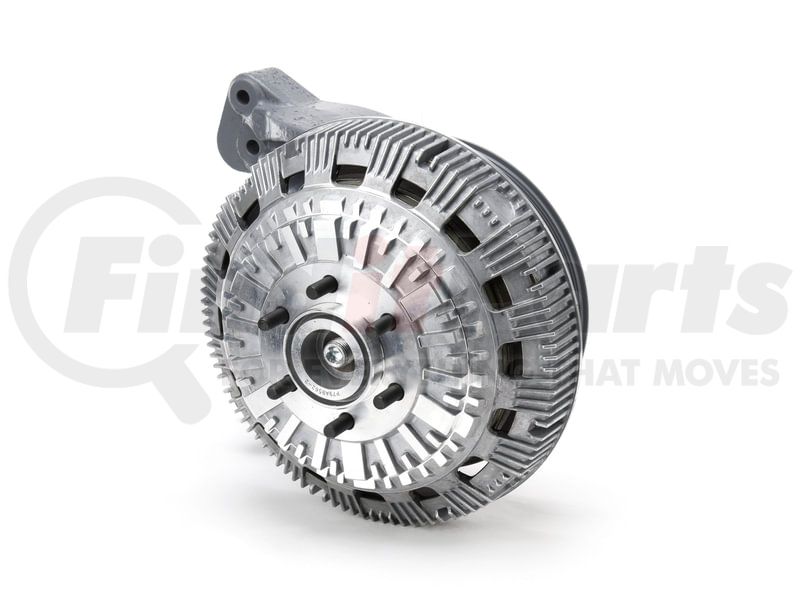

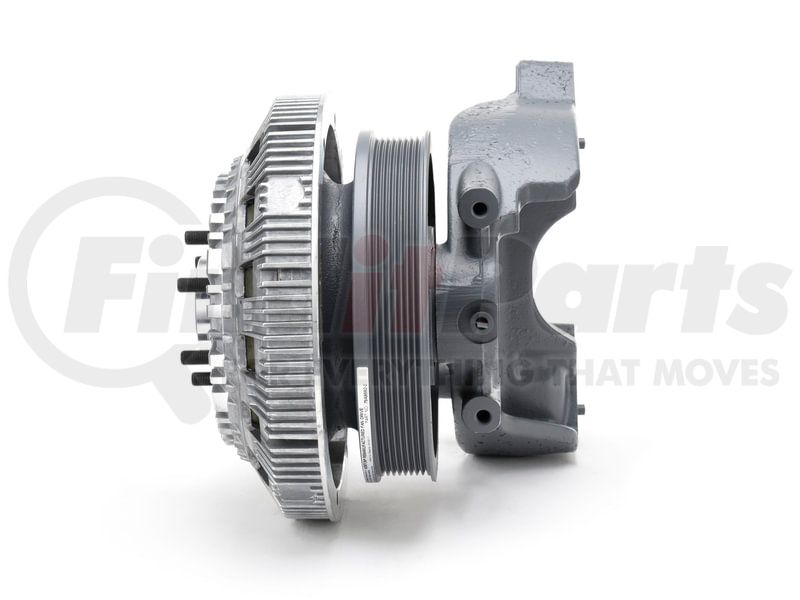

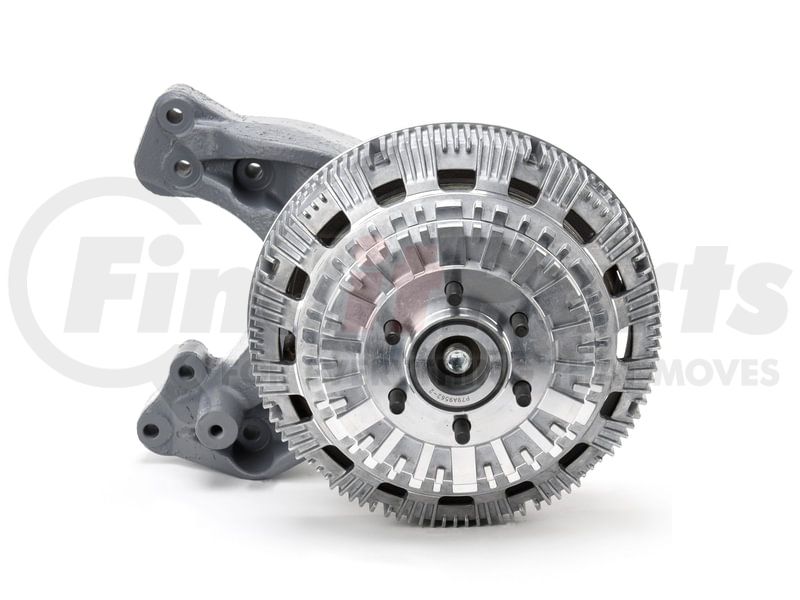

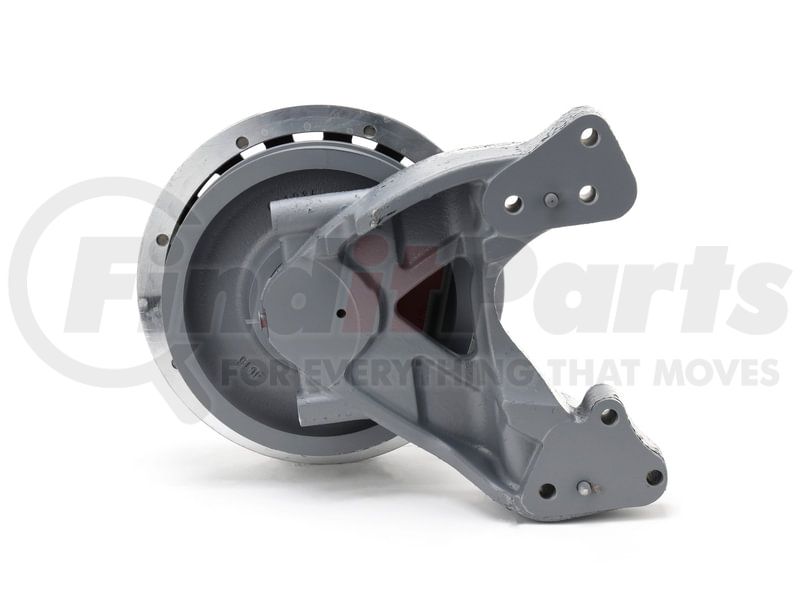

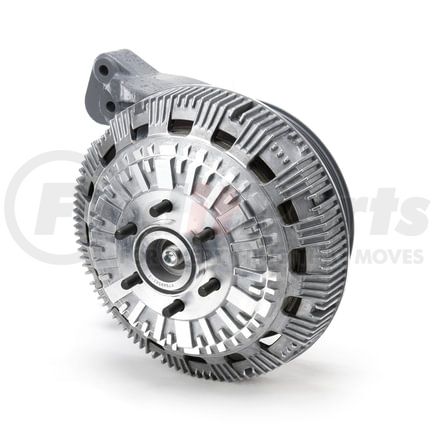

(888) 312-8812 Login SignupHORTON 79A9562-2 Engine Cooling Fan Clutch
Tap to view 3 more
MSRP: $2,724.72
$1,31199
Save $1,412.73
+$533.33 core deposit
Total price w/ core: $1,845.32
In Stock
Get it by Tuesday, Aug 25
HORTON 79A9562-2 Part Description
Manufacturer
Product Description
Engine Cooling Fan Clutch
Application Summary
INTERNATIONAL
Features & Benefits
- Built to the same specifications as Horton Genuine models
- Easy-to-install, exact drop-in replacements
- Total cost can be less than rebuilding
- Two-year warranty for line-haul applications
- Credit for old Horton or competitor cores
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance, reman
HORTON 79A9562-2 Specifications
Product Attributes
| BACK PULLEY DIAMETER | 8.89 IN |
| BELT CONFIGURATION | 8PK |
| Belt Groove Location | 3.96 IN |
| BOLT CIRCLE | 3.5 IN |
| Center of JB To Top Right Mounting Hole | 5.35 IN |
| Fan Blade Stud Length | 0.81 IN |
| FAN PILOT DIAMETER | 2.56 IN |
| Heavy Duty | 1 |
| HORIZONTAL MOUNTING DISTANCE | 9.02 IN |
| Overall Length | 7.33 IN |
| Stud Thread Size | .375-24 UNF IN |
| VERTICAL MOUNTING DISTANCE | 8.18 IN |
| Fan Bolt Circle | 3.5 |
| FRONT PULLEY DIAMETER | - |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| OEM's Part Number | 98A9562-2 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
HORTON 79A9562-2 Cross References
| Brand | Part Number |
|---|---|
| Freightliner | HOR 79A9562 2 |
| Horton | 79A5562-2 |
| Kit Masters | 99562-2 |
| MCI | HOR79A95622 |
| Mack | 3912-79A95622 |
| NAVISTAR | FLT995622 |
| Navistar | 3834444C91, 3834444C92, HOR79A9562-2, ZBH79A95622, HOR79A95622 |
| Paccar Parts | 79A9562-2RMAN |
