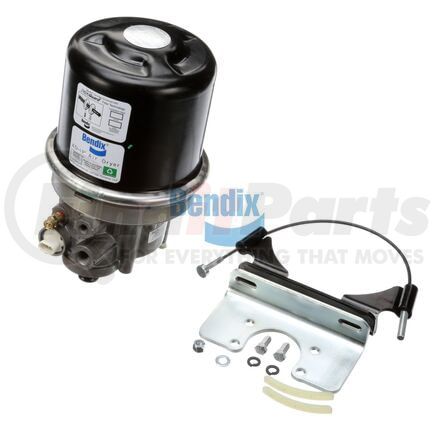

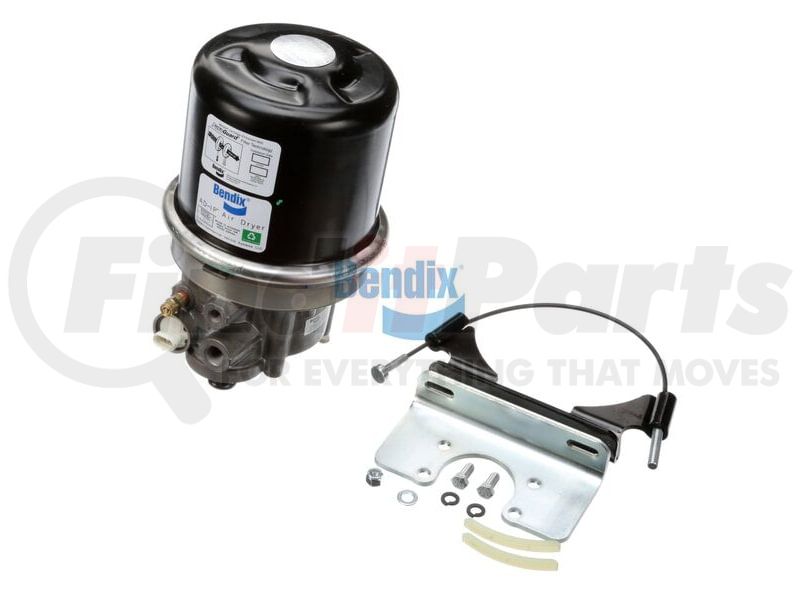

BENDIX K057542 Part Description
Manufacturer
Product Description
Air Dryer
Features & Benefits
- Replaces the housing, valves, and desiccant in one assembly
- Complete dryer design removes water vapor before the reservoirs
- Substitutes a complete dryer for a desiccant-only repair
- Leftover moisture clears once every tank is drained after installation
Bendix Air Brake Dryer
Water in the air tanks even after a new cartridge can mean the dryer itself has failed, and the Bendix Air Brake Dryer replaces the complete unit. A stuck purge valve or failed heater keeps a dryer from working no matter how fresh the desiccant is, so the Bendix K057542 replaces the complete unit. Swapping the whole assembly fixes those internal failures in one installation. Draining every tank afterward clears the water the failed dryer let through.
BENDIX K057542 Specifications
Product Attributes
| Air Dryer Type | Stand-Alone |
| Body Mounting | 3/8-16 UNC-2B (4x) |
| Cartridge Stabilizer Ring Included | Not applicable to this part |
| Cartridge Thread | 1 1/4-7 UNC-2B |
| Cartridge Type | PuraGuard (Coalescing) |
| Cautionary Note(s) | Do not replace PG cartridge with Standard/GC cartridge. |
| Clamp Band Angle (CW from SUP) | Not applicable to this part |
| Clearance to Remove Cartridge | .50 IN |
| Control Port | 1/4-18 NPT |
| Cut-In Pressure | Not applicable to this part |
| Cut-Out Pressure | Not applicable to this part |
| Delivery Port 1 | 1/2-14 NPT |
| Delivery Port 2 | Not applicable to this part |
| Extended Purge Port | 1/8-27 NPT (Plugged) |
| Governor Included | No |
| Governor Mounting Bracket | Not applicable to this part |
| Governor Mounting Bracket Angle (CCW from SUP) | Not applicable to this part |
| Governor Type | Not applicable to this part |
| Heater / Thermostat Rating | 12V / 90W |
| Heater Connector Color | White |
| Heater Connector Type | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Lower Mounting Bracket | .41 IN x 1.15 IN Slot (2x) |
| Lower Mounting Bracket Angle (CCW from SUP) | Loose in Box |
| Market Indicator | Aftermarket New |
| Maximum Inlet Temperature | 160 AdegF (71 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Purge Exhaust Port | Standard |
| Purge Valve Type | Hard Seat |
| Purge Volume | Standard |
| Remote Fill Feature | Not applicable to this part |
| Remote Purge Port | Not applicable to this part |
| Safety Valve Opening Pressure | 200 PSI |
| Supply Port | 1/2-14 NPT |
| Turbo Cut-off Function | Not applicable to this part |
| Upper Mounting Bracket | .41 IN x 1.15 IN Slot (2x) |
| Upper Mounting Bracket Angle (CCW from SUP) | Not applicable to this part |
| Upper Mounting Bracket Height (from Lower Mounting Bracket) | Loose in Box |
| Upper Mounting Type | Cable |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 04068078213858 |
| VMRS Code | 013010252 |
BENDIX K057542 Cross References
| Brand | Part Number |
|---|---|
| BWK057542 | |
| N/A | 065624PG |
