(888) 312-8812 Login SignupDELPHI ES20324 Oxygen Sensor
$13549
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Aug 11

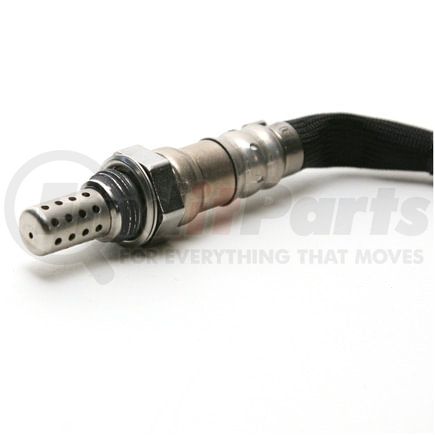

DELPHI ES20324 Part Description
Manufacturer
Product Description
Oxygen Sensor
Features & Benefits
- Delphi planar technology covers older, conical design sensors
- Smart design consolidates SKUs without using long wires
- Patented protective sensor coating helps prevent contamination
- Validated for all fuel types, including ethanol blends like E85
- OE tested to 150,000 miles, plus 2,000 hours severe thermal testing
- Delphi is a global OE manufacturer for oxygen sensor and all oxygen sensors are built to Delphi's OE standards
DELPHI ES20324 Specifications
Product Attributes
| Position(s) | Front, Rear. For the position specific to your vehicle, refer to the Applications. |
| Package Contents | Oxygen Sensor, Instruction Sheet |
| Wiring Harness Length | 29.9 IN |
| Wiring Harness Length | 760.0 MM |
| Sensor Type | Narrow-Band |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Band Type | Narrow |
| Wire Quantity | 4 |
| Grade Type | Standard Replacement |
| Connector Shape | Square |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Thread Diameter | 0.7 IN |
| Wrench Size | 22mm |
| Thread Size | M18 - 1.5 |
| Overall Length | 31.1 IN |
| Overall Length | 790.0 MM |
| Mounting Type | Threaded |
| Thread Diameter | 18.0 MM |
| Wire Gauge Measurement | 20.0 GU |
| Thread Type Standard | Metric |
| Heated | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9027100000 |
| Harmonized Tariff Code (HTS) | 9027102000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604188354 |
| VMRS Code | 045021011 |
| UNSPSC | 41111924 |
DELPHI ES20324 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2131394, 2131443, 2131483, 2131536 |
| Airtex | 5S3550, 5S3551, 5S3989, 5S4002 |
| BorgWarner | OS1198, OS1200, OS1753, OS1767, OS1780, OS2518 |
| Bosch | 13353, 13489, 13510, 13984, 13992, 15087, 15213, 15618, 15244 |
| DENSO | 234-4137, 234-4603 |
| DENSO Auto Parts | 234-4137, 234-4603 |
| HELLA | 7.05271.47.0, 358103051 |
| Kem | 138-492, 138-497, 138-637 |
| Mighty Distributing System | 691224 |
| N/A | 2344137, 2344603, 138492, 138497, 138637, 8946506020, 8946506040, 8946506090, 8946533120, 8946533210, 8946533230, 8946533330, 8946533331, 8946533340, 8946550070, 8946550100, 250-24839 |
| NTK | 24566, 24808 |
| Oextra | REA1066 |
| SPECTRA PREMIUM | OS5291 |
| Standard Motor Products | SG1013, SG1026, SG1190, SG353, SG850, SG999, SG1681, SG1836 |
| Toyota | 89465-06020, 89465-06040, 89465-06090, 89465-33120, 89465-33210, 89465-33230, 89465-33330, 89465-33331, 89465-33340, 89465-50070, 89465-50100 |
| Walker Products | 25024244 |
| Wells | SU4784, SU4885, SU4950, SU4951, SU5661, SU6779 |
DELPHI ES20324 Fits Vehicles
- Toyota Solara (1999-2003)
- Toyota Camry (1992, 1997-2001, 2003-2006)
- Lexus LS400 (1995-2000)
- Lexus ES300 (1997-2001)
