(888) 312-8812 Login SignupDELPHI ES10456 Oxygen Sensor
$8449
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 16

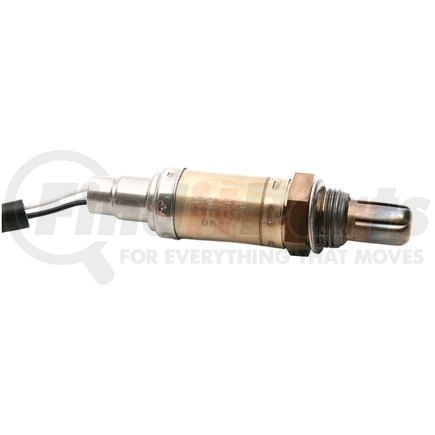

DELPHI ES10456 Part Description
Manufacturer
Product Description
Oxygen Sensor
Features & Benefits
- Delphi planar technology covers older, conical design sensors
- Smart design consolidates SKUs without using long wires
- Patented protective sensor coating helps prevent contamination
- Validated for all fuel types, including ethanol blends like E85
- OE tested to 150,000 miles, plus 2,000 hours severe thermal testing
- Delphi is a global OE manufacturer for oxygen sensor and all oxygen sensors are built to Delphi's OE standards
DELPHI ES10456 Specifications
Product Attributes
| Position(s) | Front, Front Left, Front Right, Left, Rear, Right. For the position specific to your vehicle, refer to the Applications. |
| Package Contents | Oxygen Sensor, Instruction Sheet |
| Wiring Harness Length | 17.7 IN |
| Wiring Harness Length | 450.0 MM |
| Sensor Type | Narrow-Band |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Band Type | Narrow |
| Wire Quantity | 3 |
| Grade Type | Standard Replacement |
| Connector Shape | Oblong |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Thread Diameter | 0.7 IN |
| Wrench Size | 22mm |
| Thread Size | M18 - 1.5 |
| Overall Length | 18.9 IN |
| Overall Length | 480.0 MM |
| Mounting Type | Threaded |
| Thread Diameter | 18.0 MM |
| Wire Gauge Measurement | 20.0 GU |
| Thread Type Standard | Metric |
| Heated | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9027100000 |
| Harmonized Tariff Code (HTS) | 9027102000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604089224 |
| VMRS Code | 045021011 |
| UNSPSC | 41111924 |
DELPHI ES10456 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2131300, 2131174, 2131176, 21312, 2131268, 2131278, 2131291, 2131294, 2131303, 2131389, 2131390 |
| Beck/Arnley | 156-3033, 156-3041, 156-3045, 156-3062, 156-3089, 156-4116 |
| BorgWarner | OS1017, OS1043, OS1066, OS1120, OS1176, OS1786, OS698, OS699, OS881, OS946, OS952, OS972, OS978, OS982 |
| Bosch | 13039, 13224, 13262, 13276, 13311, 13420, 13617, 13652, 13657, 13663, 13673, 13827, 13948, 15102, 15820, 15881, 13635, 18001 |
| DENSO | 234-3089, 234-3087, 234-3006, 234-3095, 234-3302 |
| DENSO Auto Parts | 234-3006, 234-3087, 234-3089, 234-3095, 234-3302 |
| Datsun/Nissan | 22690-0M200, 22690-0M210, 22690-0M211, 22690-0M220, 22690-0W000, 22690-0W001, 22690-12P00, 22690-12P01, 22690-3S500, 22690-3S501, 22690-4M200, 22690-4M201, 22690-4S100, 22690-4S101, 22690-60U01, 22690-60U02, 22690-60U11, 22690-60U12, 22690-64U00, 22690-64U01, 22690-64U06, 22690-64Y05, 22690-64Y10, 22690-64Y11, 22690-64Y12, 22690-69F02, 22690-6P100, 22690-6P101, 22690-6YU00, 22690-73C00, 22690-76500, 22690-76J00, 22690-7B520, 22690-7B521, 22690-7J100, 22690-7J110, 22690-7J111, 22690-94Y00, 22690-94Y01, 22690-94Y10, 22690-99B00, 22690-9S200, 22690-EK800, 22690-V5201, 22691-4L701, 22691-4L703, B2690-12P01 |
| Ford | XF52 9G444-CA, XF52 9G444-DA, XF5Z 9G444-CA, XF5Z 9G444-DA |
| Kem | 138-203, 138-261, 138-353, 138-358, 138-409, 138-573 |
| N/A | 25023089, 226900M200, 226900M210, 226900M211, 226900M220, 226900W000, 226900W001, 2269012P00, 2269012P01, 226903S500, 226903S501, 226904M200, 226904M201, 226904S100, 226904S101, 2269060U01, 2269060U02, 2269060U11, 2269060U12, 2269064U00, 2269064U01, 2269064U06, 2269064Y05, 2269064Y10, 2269064Y11, 2269064Y12, 2269069F02, 226906P100, 226906P101, 226906YU00, 2269073C00, 2269076500, 2269076J00, 226907B520, 226907B521, 226907J100, 226907J110, 226907J111, 2269094Y00, 2269094Y01, 2269094Y10, 2269099B00, 226909S200, 22690EK800, 22690V5201, 226914L701, 226914L703, B269012P01, 138203, 138261, 138353, 138358, 138409, 138573, XF529G444CA, XF529G444DA, XF5Z9G444CA, XF5Z9G444DA, 1563033, 1563041, 1563045, 1563062, 1563089, 1564116, 2343087, 2343089, 2343095, 250-23156 |
| NTK | 24521, 24804 |
| Oextra | REA1047, REA1093, REA1741 |
| SPECTRA PREMIUM | OS5383, OS5388, OS5147 |
| Standard Motor Products | SG1023, SG1032, SG1065, SG116, SG1242, SG169, SG175, SG1866, SG271, SG281, SG292, SG483, SG574, SG700, SG984, SG1068, SG1867, SG284 |
| VEMO | V38760009 |
| Walker Products | 250-23089 |
| Wells | SU2201, SU4463, SU4481, SU4482, SU4483, SU4486, SU4493, SU4494, SU4498, SU4505, SU4539, SU5327, SU6354, SU6831 |
DELPHI ES10456 Fits Vehicles
- Nissan NX (1991-1993)
- Nissan Xterra (2000-2004)
- Nissan Sentra (1991-1999)
- INFINITI QX4 (1997-2000)
- Nissan Quest (1999-2002)
- INFINITI Q45 (1990-1997)
- Nissan Pathfinder (1996-2000)
- Nissan Maxima (1999)
- INFINITI I30 (1999)
- INFINITI G20 (1991-1996, 1999)
- Nissan Frontier (1998-2004)
- Nissan 300ZX (1985)
- Nissan 200SX (1985-1986, 1995-1998)
- Mercury Villager (1999-2002)
