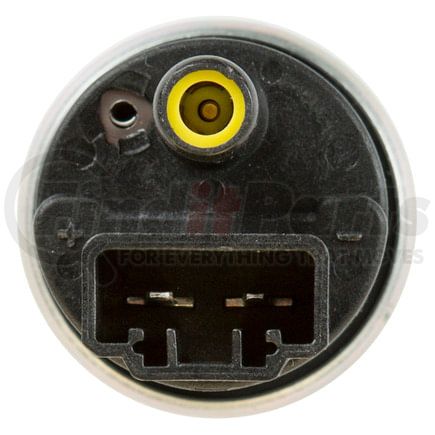

(888) 312-8812 Login SignupDELPHI FE0402 Electric Fuel Pump
MSRP: $380.34
$22799
Save $152.35
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 11
DELPHI FE0402 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0402 Specifications
Product Attributes
| Position(s) | In-Tank |
| Package Contents | Electric Fuel Pump, (3) Caps, (2) Hose Clamps, Hose Piece, Pall Nut, Seal, Spacer, Instruction Sheet |
| System Pressure | 44 psi |
| Item Grade | Standard Replacement |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 11.0 MM |
| Outlet Outside Diameter | 0.375 IN |
| Outlet Outside Diameter | 9.5 MM |
| Length | 113.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 106.0 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 5.0 68 |
| Average Flow Rating | 33.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Minimum Pressure | 44 PS |
| Maximum Amperage Draw | 5.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604189863 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0402 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP1004, EP462 |
| Airtex | E8404, E8240, E8874M |
| AutoZone | CFE0402 |
| Beck/Arnley | 152-0896, 152-0912, 152-0930 |
| Bosch | 69763, 69602, 69694 |
| Carquest | E260277 |
| Carter | P72248, P76003, P76004, 72247, P76271, P76578M, P88008, P90044 |
| DENSO | 951-0001, 951-0003 |
| DENSO Auto Parts | 950-0100, 950-0103, 950-0103-BK, 950-0104, 950-0109, 950-0110, 950-0133, 951-0001, 951-0003 |
| EVO Driveline | AFS0416P, AFS0725P, RE0725P, AFS0435P, RE0435P |
| GMB | 599-1090 |
| Import Direct | A38007, E16013, E16127, E16136 |
| Magneti Marelli | 1AMFP00001 |
| N/A | 88972523, 94856915, 94858837, 9500103, 9500103BK, 2322000020, 232200C010, 2322103040, 232210A030, 2322116490, 2322166040, 7702002181, USEP8240, F4420, 402-P8240, B0172E, 4020214, 4020247 |
| Spectra Premium | SP1217, SP1184, SP9165M |
| TYC | 152025-A |
| Toyota | 23220-00020, 23221-03040, 23221-0A030, 23221-46060, 23221-62010, 23221-66040, 23221-74110, 77020-02181 |
| VEMO | V99090002 |
DELPHI FE0402 Fits Vehicles
- Toyota Solara (1999-2006)
- Toyota Matrix (2003-2008)
- Toyota Land Cruiser (1993-2007)
- Toyota Corolla (2003-2004)
- Toyota Camry (2001-2006)
- Lexus LX470 (1998-2007)
- Lexus LX450 (1996-1997)
- Lexus SC400 (1992-2000)
- Lexus SC300 (1992-2000)
