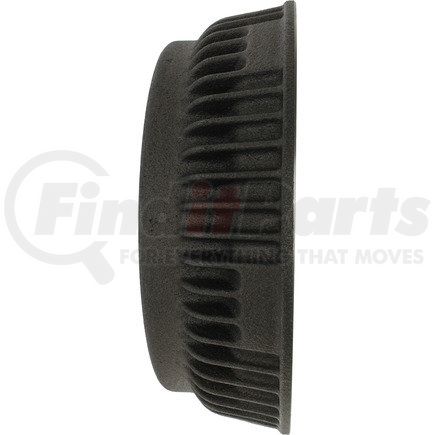

(888) 312-8812 Login SignupCENTRIC 123.62017 C-Tek Standard Brake Drum
Tap to view 4 more
$10799
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Jul 29
CENTRIC 123.62017 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.62017 Specifications
Product Attributes
| Weight [cntrc] Kgs | 11.136 |
| Weight [cntrc] Lbs | 24.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 120.650 |
| Bolt Circle Diameter [cntrc] In | 4.750 |
| Hub Hole / Register [cntrc] Mm | 70.866 |
| Hub Hole / Register [cntrc] In | 2.790 |
| Height [cntrc] Mm | 109.906 |
| Height [cntrc] In | 4.327 |
| Friction Surface Width [cntrc] Mm | 62.500 |
| Friction Surface Width [cntrc] In | 2.461 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 281.700 MM |
| Maximum Brake Diameter (Discard) | 11.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 357.500 MM |
| Outside Diameter | 14.075 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 12.400 MM |
| Mounting Hole Diameter | 0.488 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890915041 |
CENTRIC 123.62017 Cross References
CENTRIC 123.62017 Fits Vehicles
- Pontiac LeMans (1976-1977)
- Pontiac Grand LeMans (1976-1977)
- GMC Sprint (1973-1977)
- Chevrolet Malibu (1976-1977)
- Chevrolet Laguna (1976)
- Chevrolet El Camino (1973-1977)
- Buick Century (1976-1977)
