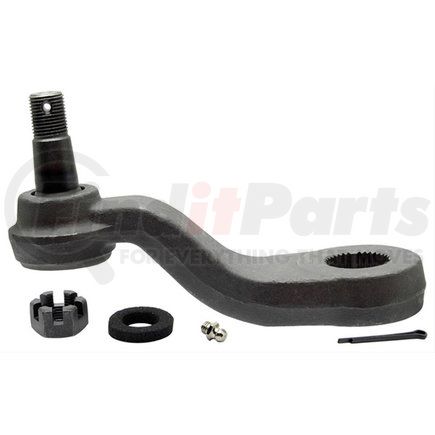

Name: ACDelco 46C0007A Steering Pitman Arm - 32 Splines, Natural, with Castle Nut and Grease Fitting
SKU: 46c0007a
Price: 44.99 USD
Availability: InStock

ACDELCO part description

ARMPIT (B)

Product Description

Pitman Arm

Product Attributes

Length	13.00 IN
Castle Nut Included	Yes
Center Link End Attachment Diameter	0.65 IN
Center Link End Attachment Diameter	16.5 MM
Color	Gray
Finish	Plain
Grease Fitting Included	Yes
Greaseable	Yes
Length	330.2 MM
Spline Quantity	32
Steering Shaft Diameter	1.190 IN
Vehicle Ride Height	Standard
Features & Benefits - Bullet 1	Dust boot helps resists contamination
Features & Benefits - Bullet 2	Greaseable where applicable
Features & Benefits - Bullet 3	Manufactured at ISO 9001-certified facilities to ensure consistent high quality
Features & Benefits - Bullet 4	Some ACDelco Silver parts may have formerly appeared as ACDelco Advantage
Features & Benefits - Bullet 5	Economical value with dependable quality
Features & Benefits - Bullet 6	For General Motors vehicles as well as most makes and models
Signs of Wear & Troubleshooting - Section 1 - Bullet 1	Excessive steering play: excessive movement or play in your vehicle's steering linkage may be a sign of steering arm wear.
Signs of Wear & Troubleshooting - Section 1 - Bullet 2	Alignment issues: an inability to set the proper alignment for your vehicle may indicate worn steering arms.
Signs of Wear & Troubleshooting - Section 4 - Bullet 8	Inspect or have your idler and pitman arms inspected for signs of wear. Exposure to dirt, road salt, and other harsh road conditions can cause wear and tear on your steering arms or cause connections to loosen. One way to test your steering arm assemblies is to try to turn the steering wheel while your vehicle is parked. If you can turn the steering wheel a significant amount without resistance, then you may have a worn idler or pitman arm.
Signs of Wear & Troubleshooting - Section 4 - Bullet 9	Replace your vehicle's idler and pitman arms at the same time. Since the idler arm and pitman arm are exposed to similar wear conditions you should replace the steering arms at the same time. After your new arms are installed have a professional alignment done.
FAQ - Question 1	Can I use ACDelco Advantage Chassis parts on my non-GM vehicle?
FAQ - Answer 1	Yes. ACDelco Advantage Chassis parts are for both GM and non-GM vehicle applications.
FAQ - Question 2	Should I replace my idler and pitman arms at the same time?
FAQ - Answer 2	Yes. Your idler and pitman arms are exposed to similar wear conditions, so it is recommended that you replace them at the same time.
FAQ - Question 3	Should I perform a vehicle alignment after installing new idler or pitman arms?
FAQ - Answer 3	Yes. Installing a new idler or pitman arm can interfere with your vehicle's alignment, so performing an alignment after steering arm installation is recommended.
Product Description	ACDelco Silver (Advantage) Steering Pitman Arms are a quality, high value alternative for General Motors vehicles as well as most makes and models and are backed by General Motors. These steering pitman arms connect your vehicle's steering gear to the steering linkage. They provide a stable pivot point with the least amount of friction. ACDelco Silver (Advantage) parts are a good choice for many vehicles on the road today. Some ACDelco Silver parts may have formerly appeared as ACDelco Advantage. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Additional Information

Warranty Special	Limited Lifetime Warranty (Parts Only). Please see ACDelco.com for more details\|Limited Lifetime Warranty as long as the original purchaser still owns the vehicle (Parts Only). Please see ACDelcocanada.com for more details
Harmonized Tariff Code (HTS)	8708806590
Country of Origin (Primary)	CN
Warranty Special UOM	TX
UPC	00195491480315

Fits Vehicles

GMC R3500 (1987-1991)
GMC R2500 Suburban (1987-1991)
GMC R2500 (1987-1989)
GMC R1500 Suburban (1987-1991)
GMC R1500 (1987)
GMC P3500 (1979-1999)
GMC P35 (1975-1978)
GMC P2500 (1979-1989)
GMC P25 (1975-1978)
GMC P1500 (1979-1980)
GMC P15 (1975-1978)
GMC Jimmy (1975-1982)
GMC C3500 (1979-1986)
GMC C35 (1975-1978)
GMC C2500 Suburban (1979-1986)
GMC C25 Suburban (1975-1978)
GMC C2500 (1979-1986)
GMC C25 (1975-1978)
GMC C1500 Suburban (1979-1986)
GMC C15 Suburban (1975-1978)
GMC C1500 (1979-1986)
GMC C15 (1975-1978)
Chevrolet R3500 (1989-1991)
Chevrolet R30 (1987-1988)
Chevrolet R2500 Suburban (1989-1991)
Chevrolet R2500 (1989)
Chevrolet R20 Suburban (1987-1988)
Chevrolet R20 (1987-1988)
Chevrolet R1500 Suburban (1989-1991)
Chevrolet R10 Suburban (1987-1988)
Chevrolet R10 (1987)
Chevrolet P30 (1975-1999)
Chevrolet P20 (1975-1989)
Chevrolet P10 (1975-1980)
Chevrolet C30 (1975-1986)
Chevrolet C20 Suburban (1975-1986)
Chevrolet C20 (1975-1986)
Chevrolet C10 Suburban (1975-1986)
Chevrolet C10 (1975-1986)
Chevrolet K5 Blazer (1975-1982)
