(888) 312-8812 Login SignupSTEMCO 308-0836 Seal, Oil Bath Seal, Gritguard, Guardian
MSRP: $122.07
$7599
Save $46.08
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 7

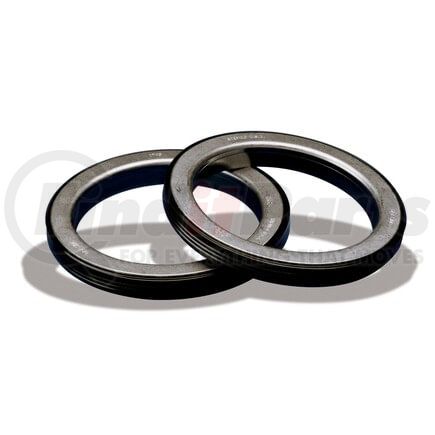

STEMCO 308-0836 Part Description
Manufacturer
Product Description
GUARDIAN HP SEAL
Application Summary
12,000#, 14,600# Meritor Front Transit
Features & Benefits
- Hub-rotating deflector redirects debris before it reaches the sealing lip
- Designed specifically for oil bath hub assemblies on heavy-duty axles
- Reduces abrasive contact at the spindle shoulder during wheel rotation
- Helps maintain cleaner hub oil by limiting external contamination entry
- Supports longer seal life by minimizing seal-to-spindle wear
- Protects critical hub components in wet gritty and corrosive environments
Stemco Gritguard Wheel Seal
The Stemco Grit Guard Wheel Seal is built for oil-lubricated hub assemblies where contamination control and spindle protection matter just as much as sealing oil inside the hub. Instead of relying on a single sealing lip, the Grit Guard design adds a hub-mounted deflector ring that spins with the wheel, redirecting dirt, water, and road spray away from the sealing area. This approach reduces direct contact at the spindle surface and limits the abrasive wear that often leads to grooving at the axle shoulder. By keeping contaminants away from both the seal lip and the spindle, the Stemco 308-0836 supports cleaner hub oil and more stable sealing performance over time. The result is a wheel seal designed to work with the hub, not against it, in demanding road conditions.
STEMCO 308-0836 Specifications
Product Attributes
| Width | 0.84 IN |
| Seal Type | CB7 |
| Bore Diameter | 4 .840 IN |
| GASKET NUMBER | 330-3122 |
| GASKET NUMBER | 330-3034 |
| GASKET NUMBER | 330-3097 |
| GASKET NUMBER | 330-3122 |
| GASKET NUMBER | 330-3009 |
| GASKET NUMBER | 330-3028 |
| GASKET NUMBER | 330-3041 |
| GASKET NUMBER | 330-3120 |

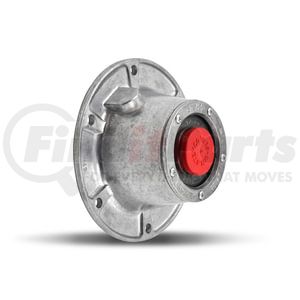

| HUB CAP WITH GASKET | 340-4024 |
| HUB CAP WITH GASKET | 340-4028 |
| HUB CAP WITH GASKET | 340-4042 |
| HUB CAP WITH GASKET | 340-4066 |
| HUB CAP WITH GASKET | 340-4149 |
| HUB CAP WITH GASKET | 340-4249 |
| HUB CAP WITH GASKET | 340-4024 |
| HUB CAP WITH GASKET | 340-4034 |
| HUB CAP WITH GASKET | 340-4046 |
| HUB CAP WITH GASKET | 340-4095 |
| HUB CAP WITH GASKET | 340-4186 |
| INNER BEARING CONE | 557A |
| INNER BEARING CONE | HM212044 |
| INNER BEARING CONE | HM212049 |
| INNER BEARING CONE | HM212049- X1 |
| INNER BEARING CONE | 557A |
| INNER BEARING CONE | HM212047 |
| INNER BEARING CONE | HM212049- X |
| INNER BEARING CUP | 553X |
| INNER BEARING CUP | 39520 |
| INNER BEARING CUP | HM212011 |
| INSTALL HANDLE/BODY | 555-0001 |
| Notes | Ford 9000# axle. Code N (FD-900),with 15x3 or 15x3-1/2 wedge brakes, use 382-8027 set. GMC only (FE-900),prior to 1960 use, 310-1036 and 320-2031. Be sure steering adjustment stop bolt does not interfere with ring. |
| OUTER BEARING CONE | 3782 |
| OUTER BEARING CONE | 3782 |
| OUTER BEARING CUP | 3525 |
| OUTER BEARING CUP | 3525 |
| SHOULDER OUTER DIAMETER | 3 .500 IN |
| SPINDLE SHOULDER OUTER DIAMETER | 3 .500 IN |
| Standard Set Equivalent | 382-8036 |
| TOOL HEAD | 555-5062 |
| TOOL HEAD | 555-5066 |
| TOOL HEAD | 555-5062 |
| TOOL HEAD | 555-5098 |
| Bore Diameter | 4.84 |
| SHOULDER OUTER DIAMETER | 3.5 |
| STANDARD SET EQUIV. | 382-8036 |
| SPINDLE SHOULDER OUTER DIAMETER | 3.5 |
Additional Information
| Harmonized Tariff Code (HTS) | 4016931050 |
| UPC | 00703832129832 |
| VMRS Code | 018001025 |
STEMCO 308-0836 Cross References
| Brand | Part Number |
|---|---|
| CHICAGO RAWHIDE | 44919, 44920 |
| CHICAGO RAWHIDE CLASSIC | 44922 |
| CHICAGO RAWHIDE PLUSXL | 44916 |
| Eaton | 100858201, 100858401 |
| Ford | D0HZ1190B, D1HA1190AA, D1HZ1190A, D5HZ1190B, E2HT1190AA, E3HZ1190B, E6HZ1190D, E7HT1190AA, E7HZ1190A, E8HS1190CA, F0HT1190AA |
| Freightliner | 6819970446 |
| GMC | 15663537, 940010010, 940010014, 940010021, 940010029, 940010039, 940013604 |
| GMC/VOLVO | 15527780 |
| MECHANEX/BARRIER | HS44919 |
| Mack | 32QJ269, 32QJ29315, 364SZ100, 364SZ206 |
| Meritor | A1205B2264, A1205E2475, A1205G631, A1205L1338, A1205N1912, A1205U2491, A1205W1375 |
| NATIONAL | 417530, 370124A |
| NATIONAL SEALS | 370001A, 380001A |
| NAVISTAR | 319506C91, 447556C91, 589822C91, 594966C1, 780316C91 |
| NEWSTAR | S-A225 |
| NOK | 855, 305, 847, UZ0305E0 |
| National | 370001A, 380001A, 6638S, 9339S |
| Navistar | 1554331C1, 1611843C91, 1615304C1, 1654331C1, 1688203C1, 16911843C91, 296393C91, 394894C91, 447561C91, 596555C1 |
| OEM | 35059, 35062, 35102 |
| OEM Part Number | 35059, 35062, 35102 |
| OUTRUNNER | 855 |
| Pioneer Weston | 312100 |
| SKF | 35066, 35058 |
| Stemco | 35066 |
| TIMKEN | 10L36253, 10P35000, 10S35000T, 10X35003 |
| TRISEAL | 69692, 65000U, 65000W, 65263U |
| Trailmobile | 4131214, 4131220, 4131249 |
| Triseal Corp | 65263U, 65263W, 69699 |
| VICTOR | SS64415 |
| Volvo | 15663537, 3942006, 940010010, 940010014, 940010021, 940010029, 940010039, 940013604 |
| Western Star | 940015001 |
