NATIONAL SEALS part description

Product Description

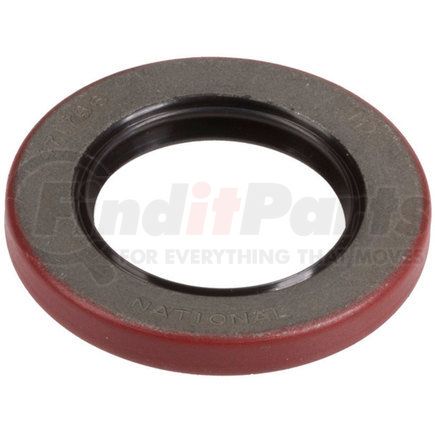

Multi-Purpose Seal

Application Summary

1967-1969 Triumph TR250 (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with Standard CD Transmission, 4 Speed); 1968-1976 Triumph TR6 (Transmission Base Gear: 4 & Transmission Control Type: Manual / Qualifier: with Standard CD Transmission, with Standard CF Transmission); 1966-1971 Ford Bronco (Front Inner) (Qualifier: 2nd Design, with 7.125 (in) Ring Gear, with 0.25 (in) Width, with Spicer 30-AF Axle, 2.0 (in) Outside Diameter)

Features & Benefits

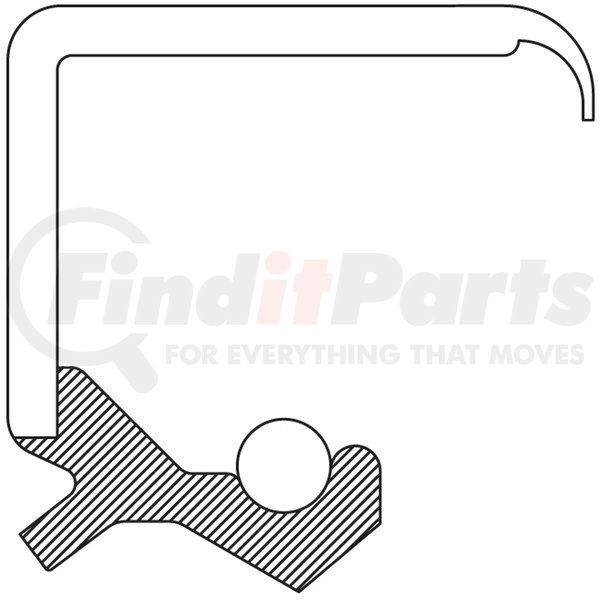

  • Design type: spring loaded; multi-lip
  • Tipo de diseño: Carga de resorte; multi-labio
  • Temperature range: -40°F to 225°F / -40°C to 107°C
  • Rango de temperatura: -40°F a 225°F / -40°C a 107°C
  • Good low temperature capability
  • Buena capacidad a bajas temperaturas
  • Low swell in hydrocarbon fluids
  • Baja expansión en fluidos de hidrocarburos
  • Delivers quality and reliable performance for every type of repair
  • Ofrece un rendimiento confiable de calidad para cada tipo de reparación

Product Attributes

Inside Diameter 1.250 IN
Inside Diameter 31.750 MM
Outside Diameter 2.004 IN
Outside Diameter 50.900 MM
Width 0.250 IN
Width 6.350 MM
Material Nitrile
Footnote Zero Duplication Part
Part Description Oil Seal
Redicoat Yes
Sealing Material Nitrile
Series 470000
Thickness 0.250 IN
Thickness 6.350 MM
Type 47
Unit of Dimension Inch
Housing Bore 2.000 IN
Housing Bore 50.800 MM
Shaft Diameter 1.250 IN
Shaft Diameter 31.750 MM

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
UPC 00724956139521

Part Interchanges

Fits Vehicles

  • Triumph TR6 (1968-1976)
  • Triumph TR250 (1967-1969)
  • Ford Bronco (1966-1971)
