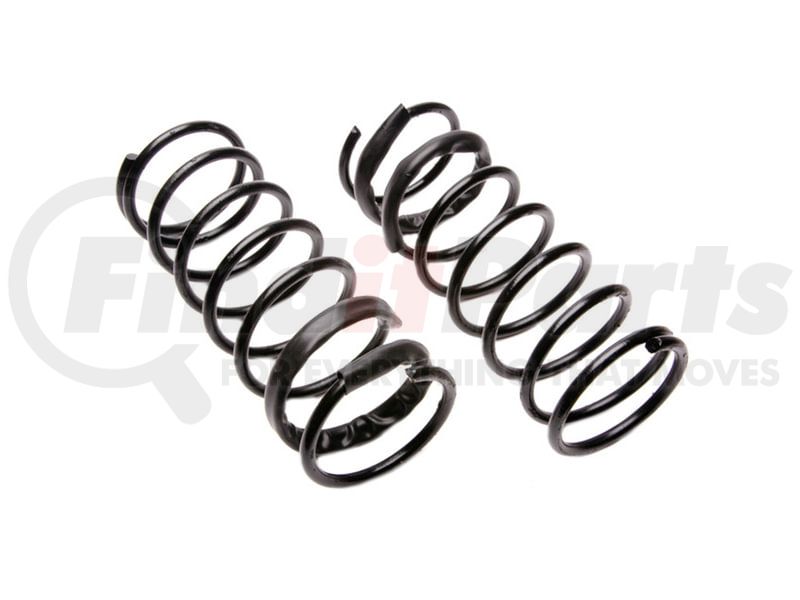

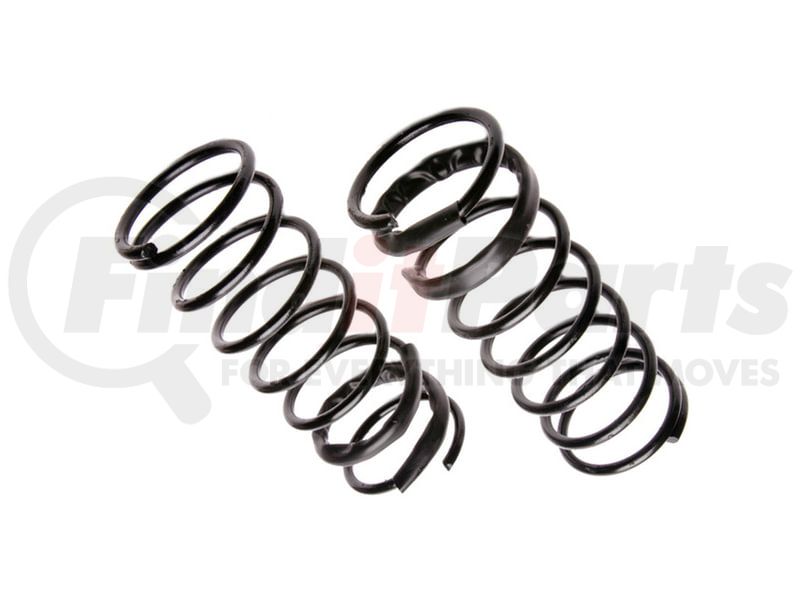

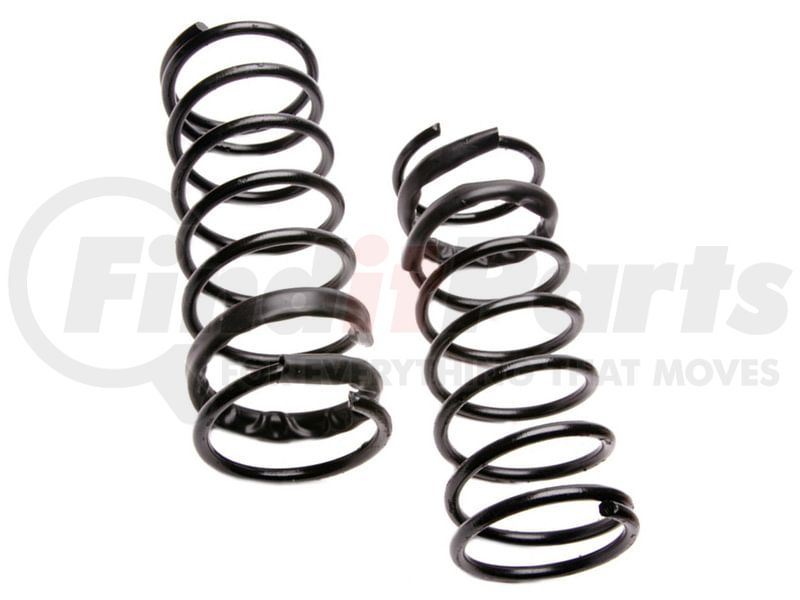

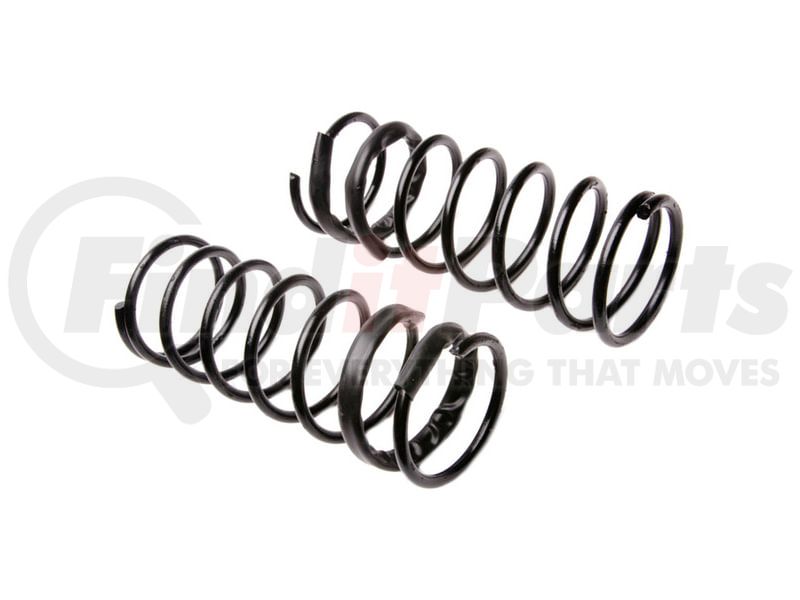

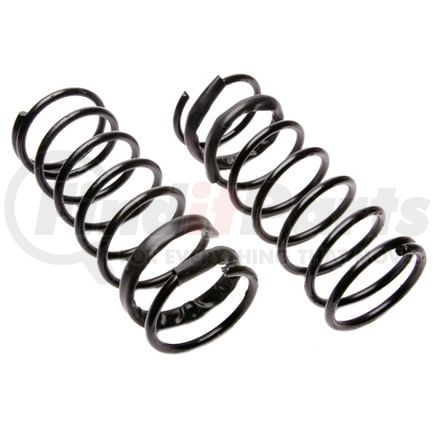

Name: Moog CC869 MOOG CC869 Coil Spring Set
SKU: cc869
Price: 65.99 USD
Availability: InStock

MOOG part description

Moog Rear Coil Springs OE comparable -MOOG COIL SPRINGS, SOLD AS PAIR -- Variable Rate Springs, Made From Heat-Treated Alloy Steel For A Full Coil Rebound And Sagging Resistance, Change Resistance When Compressing, Become Progressively Stiffer As Its Load Increases, Use A Premium Urethane Tube That Lasts Much Longer, Vinyl-Coated For Corrosion Resistance And Extended Service LifeRear

Product Description

Coil Spring Set

Application Summary

1997-2002 Ford Escort (Rear) (Doors: 4 & Body: Sedan / Qualifier: Variable Rate); 1997-1999 Mercury Tracer (Rear) (Doors: 4 & Body: Sedan / Qualifier: Variable Rate)

Features & Benefits

100% Load tested
Easy to install
Provides like-new steering
Designed to lower stresses for longer service life
Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Product Attributes

Wire Diameter	0.47 IN
Wire Diameter	12.00 MM
Spring Color	Black
Front Spring Outside Diameter	5.530 IN
Front Spring Relaxed Length	14.63 IN
Front Spring Relaxed Length	371.60 MM
Front Spring Compressed Length	10.00 IN
Front Spring Compressed Length	254.00 MM
Rear Spring Relaxed Length	14.63 IN
Rear Spring Relaxed Length	371.60 MM
Rear Spring Compressed Length	10.00 IN
Rear Spring Compressed Length	254.00 MM
Rear Spring Outside Diameter	5.530 IN
Bar Diameter (in.)	0.47
Bar Diameter (mm)	12
End Type 1	Squared
End Type 2	Tangential
Free Height (in.)	14.63
Free Height (mm)	371.6
ID (in.)	4.59
ID (MM)	116.7
Installation Height (in.)	10
Installation Height (mm)	254
Load (lbs)	394
Spring Rate (lbs Per in.)	85
Spring Type	Variable Rate
Bar Diameter - Inches	0.47
Bar Diameter - MM	12.00
End 1 Type	Squared
End 2 Type	Tangential
Free Height - Inches	14.63
Free Height - MM	371.60
ID - Inches	4.59
ID - MM	116.70
Installation Height - Inches	10.00
Installation Height - MM	254.00
Load - lbs	394.00
Part Description	Coil Spring Set
Spring Rate - lbs per inch	85.00

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708806590
Harmonized Tariff Code (HTS)	8708806590
Remanufactured Part	N
Refurbished Part	N
UPC	00080066316604
VMRS Code	016002002
UNSPSC	31161903

Part Interchanges

MOOG CC869 Cross Reference

We have 1 alternatives for the CC869 by MOOG:

080066316604

Fits Vehicles

Mercury Tracer (1997-1999)
Ford Escort (1997-2002)
