MONROE SC2912 Part Description
Manufacturer
Product Description

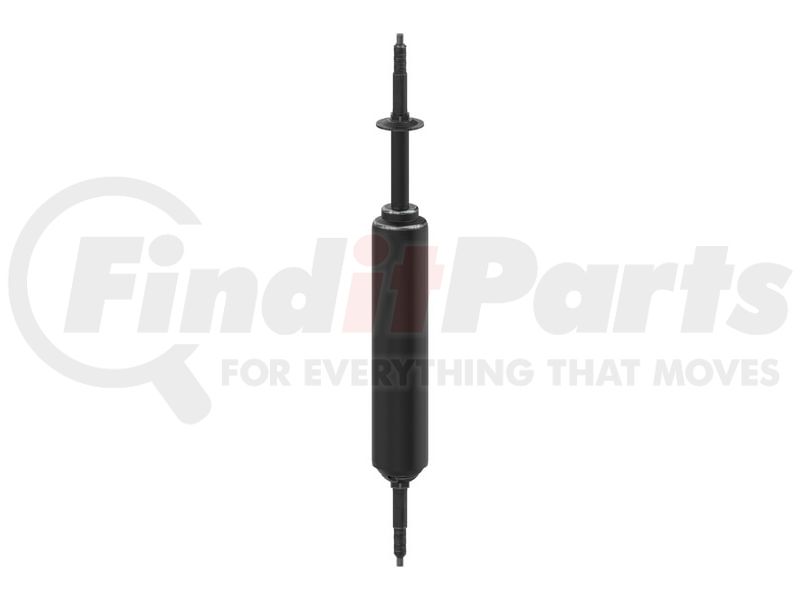

Magnum Front Steering Damper
Features & Benefits
- REDUCES VIBRATION -- Ideal for trucks, vans, SUVs, and CUVs, it helps reduce vibrations that travel through the steering system before they get to the driver to improve control and cut down on driver fatigue in all driving conditions
- CONSISTENT PERFORMANCE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- STRONG AND DURABLE -- Sintered iron piston and .50-in. nitrocarburized piston rod for enhanced durability and long service life
- EXCEPTIONAL HANDLING -- Full displaced valving delivers better valving range on both compression and extension cycles for consistent performance
- LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas without excessive wear or friction
- MOUNTS HORIZONATALLY -- Micro-cellular gas design allows the unit to be mounted horizontally without impacting performance for improved steering control
MONROE SC2912 Specifications
Product Attributes
| Compressed Length | 12.625 IN |
| Compressed Length | 320.7 MM |
| Extended Length | 21.875 in |
| Extended Length | 555.6 MM |
| Travel Length | 9.25 in |
| Travel Length | 235 MM |
| Lower Mount Type | Stem Mount - 2-3/8" Stem Length X 3/8"-16 Thread Pitch |
| Lower Mount Code | S4 |
| Upper Mount Type | Stem Mount - 2-3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Gas Charged | No |
| Parts Pack(s) | (2) P01098 |
| Body Diameter | 1.86 IN |
| Body Diameter | 47.2 MM |
| Color | Black |
| Finish | Painted |
| Dust Shield Included | No |
| Dust Shield Material | N/A |
| Shaft Diameter | 18 MM |
| Internal Construction Type | Twin Tube |
| Foam Cell Design | Yes |
| Grade Type | Premium |
| Adjustable Damping | No |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Part Description | Steering Damper |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708949900 |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| UPC | 00048598029010 |
| VMRS Code | 015004022 |
| UNSPSC | 25174202 |
MONROE SC2912 Cross References
| Brand | Part Number |
|---|---|
| SC2912MM, W705247S450B | |
| ACDelco | 509612 |
| Carquest | SS10344 |
| Ford | C8TZ3E651A, D2TA3E651AA, D6TZ3E651A, F1TA3E651AA |
| Gabriel | 6857SE, 6802SE, 6803SE, 6858SE |
| Gold Shock Absorber | 8550028 |
| HALDEX | SC2912 |
| KYB | SS10334, SS10344, SS15342, SS15345 |
| MOOG | SSD17 |
| MOOG Chassis Products | SSD106, SSD109, SSD120, SSD16, SSD17, SSD49, SSD50, SSD83, SSD95 |
| Moog Vintage | SSD16, SSD120, SSD109, SSD106, SSD50, SSD83, SSD17, SSD95, SSD49 |
| NAPA Shocks | SC2912 |
MONROE SC2912 Fits Vehicles
- Mazda B4000 (1994-1997)
- Mazda B3000 (1994-1997)
- Mazda B2300 (1994-1997)
- Ford Ranger (1983-1997)
- Ford F-59 Commercial Stripped Chassis (1988-1991)
- Ford F-53 Motorhome Chassis (1988-1991)
- Ford F-350 (1980-1997)
- Ford F-250 (1980-1996)
- Ford F-150 (1976-1996)
- Ford F-100 (1970-1976, 1980-1983)
- Ford F-Super Duty (1988-1997)
- Ford Explorer (1991-1994)
- Ford E-350 Econoline Club Wagon (1980-1998)
- Ford E-350 Econoline (1980-1998)
- Ford E-250 Econoline Club Wagon (1980-1991)
- Ford E-250 Econoline (1980-1994)
- Ford E-150 Econoline Club Wagon (1980-1994)
- Ford E-150 Econoline (1980-1994)
- Ford E-100 Econoline Club Wagon (1980-1983)
- Ford E-100 Econoline (1980-1983)
- Ford Econoline Super Duty (1996-1998)
- Ford Bronco II (1984-1990)
- Ford Bronco (1966-1996)
- Dodge W250 (1990-1993)
- Dodge D350 (1989-1993)
- Dodge D250 (1989-1993)
