MONROE 911266 Part Description
Manufacturer
Product Description

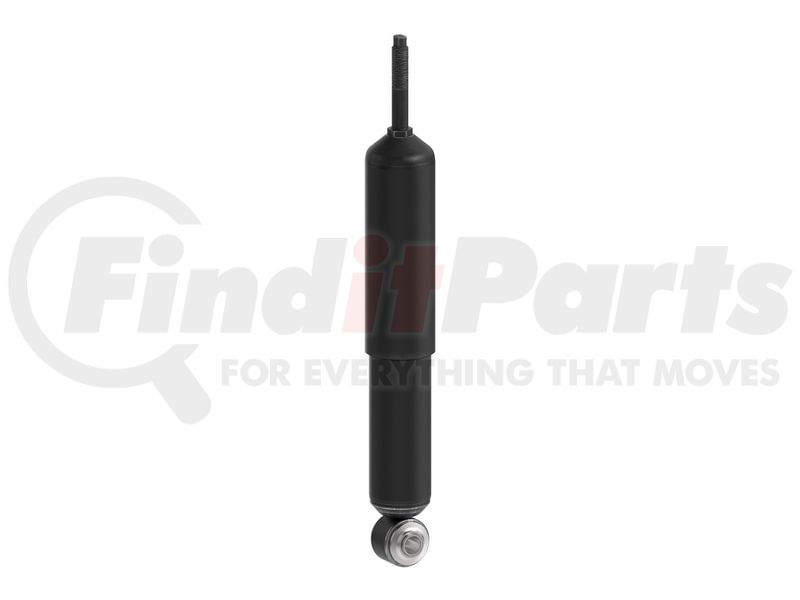

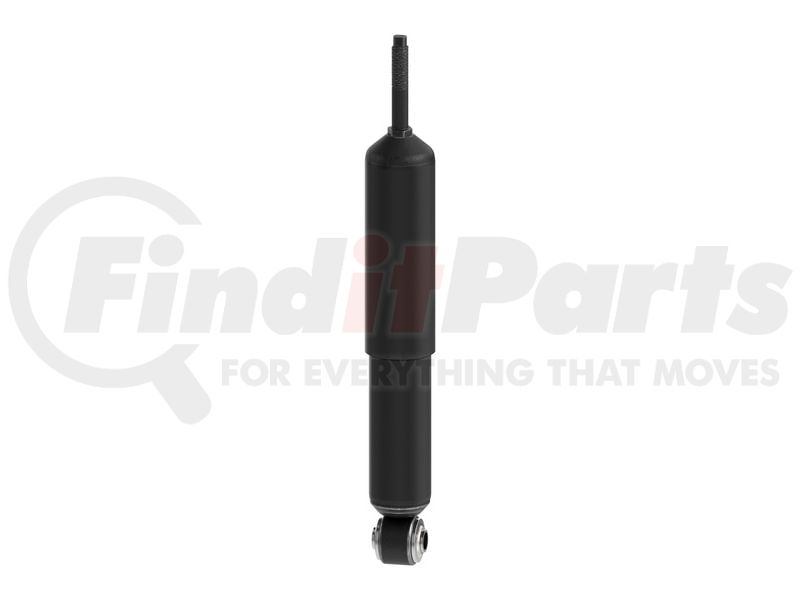

OESpectrum Front Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911266 Specifications
Product Attributes
| Compressed Length | 13.625 IN |
| Compressed Length | 346.1 MM |
| Extended Length | 20.75 in |
| Extended Length | 527.1 MM |
| Travel Length | 7.125 in |
| Travel Length | 181 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS47 |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Upper Mount Code | S5 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01167 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598841933 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911266 Cross References
| Brand | Part Number |
|---|---|
| 911266MM | |
| AUTOZONE | MS33-31301B |
| AutoZone | MS3331301B |
| BILSTEIN | 24186674 |
| Duralast | MS3331301B |
| FCS | 341580 |
| FCS AUTO PARTS | 341580 |
| Ford | 1C3Z18125LA, 5C3Z18124AA, 5C3Z18124BA, 5C3Z18124CA, 5C3Z18124FA, 5C3Z18124KA, 5C3Z18124LA, 5C3Z18124MA, 5C3Z18124NA, 5C3Z18124NB, 5C3Z18124PA, 5C3Z18124RA, 5C3Z18124SA, 5C3Z18124TA, 5C3Z18124VA, 5C3Z18125A, 5C3Z18125B, 5C3Z18125C, 5C3Z18125CA, 5C3Z18125CB, 5C3Z18125CC, 5C3Z18125CF, 5C3Z18125CH, 5C3Z18125CJ, 5C3Z18125D, 5C3Z18125E, 5C3Z18125F, 5C3Z18125G, 5C3Z18125JA, 5C3Z18125JB, 5C3Z18125JC, 5C3Z18125JD, 5C3Z18125JE, 5C3Z18125KA, 5C3Z18125LA, 5C3Z18125LB, 5C3Z18125LC, 5C3Z18125LD, 5C3Z18125LE, 5C3Z18125LF, 5C3Z18125MF, 6C3Z18124AGA, 6C3Z18124PBA, 6C3Z18124PHA, 6C3Z18125A, 6C3Z18125B, 6C3Z18125CEA, 6C3Z18125KBA, 6C3Z18125KHA, 6C3Z18125MBG, 6C3Z18125MHA, 7C3Z18124AE, 7C3Z18124AF, 7C3Z18124AGA, 7C3Z18124AH, 7C3Z18124AKA, 7C3Z18124APA, 7C3Z18124ARA, 7C3Z18124EA, 7C3Z18124NBA, 7C3Z18124NCA, 7C3Z18124NDA, 7C3Z18124NEA, 7C3Z18124NGA, 7C3Z18124P, 7C3Z18124PBA, 7C3Z18124PCA, 7C3Z18124PDA, 7C3Z18124PGA, 7C3Z18125CCA, 7C3Z18125CEA, 7C3Z18125CLA, 7C3Z18125CUA, 7C3Z18125CVA, 7C3Z18125CXA, 7C3Z18125JBA, 7C3Z18125JCA, 7C3Z18125JDA, 7C3Z18125JEA, 7C3Z18125K, 7C3Z18125KBA, 7C3Z18125KCA, 7C3Z18125KDA, 7C3Z18125LBA, 7C3Z18125LCA, 7C3Z18125LDA, 7C3Z18125LEA, 7C3Z18125LGA, 7C3Z18125M, 7C3Z18125MBA, 7C3Z18125MCA, 7C3Z18125MDA, 7C3Z18125MGA, 8C3Z18124NK, 8C3Z18124PK, 8C3Z18125LK, 8C3Z18125MK, 9C3Z18124A, 9C3Z18124B, 9C3Z18124PDA, 9C3Z18125A, 9C3Z18125B, 9CZ18124A, 9CZ18124B, BC3418045NEC, BC3Z18124A, BC3Z18124AA, BC3Z18124AB, BC3Z18124B, BC3Z18124C, BC3Z18124D, BC3Z18124E, BC3Z18124F, BC3Z18124G, BC3Z18124H, BC3Z18124K, BC3Z18124L, BC3Z18124M, BC3Z18124N, BC3Z18124P, BC3Z18124Q, BC3Z18124R, BC3Z18124S, BC3Z18124T, BC3Z18124U, BC3Z18124V, BC3Z18124W, BC3Z18124X, BC3Z18124Y, BC3Z18124Z, BC3Z18125A, BC3Z18125AA, BC3Z18125AB, BC3Z18125AC, BC3Z18125AE, BC3Z18125AF, BC3Z18125AG, BC3Z18125AH, BC3Z18125AJ, BC3Z18125AK, BC3Z18125AL, BC3Z18125AM, BC3Z18125AN, BC3Z18125B, BC3Z18125C, BC3Z18125D, BC3Z18125E, BC3Z18125F, BC3Z18125J, BC3Z18125L, BC3Z18125M, BC3Z18125N, BC3Z18125P, BC3Z18125Q, BC3Z18125R, BC3Z18125S, BC3Z18125U, BC3Z18125V, BC3Z18125W, BC3Z18125Y, F81Z18124AK, F81Z18124AL, F8AZ18125JA, HC3Z18124A, HC3Z18124B, HC3Z18124C, HC3Z18124D, HC3Z18124E, HC3Z18124F, HC3Z18124G, HC3Z18124H, HC3Z18124K, HC3Z18124L, HC3Z18124M, HC3Z18124N, HC3Z18124P, HC3Z18124R, HC3Z18124S, HC3Z18124T, HC3Z18124U, HC3Z18124V, HC3Z18125A, HC3Z18125AA, HC3Z18125AB, HC3Z18125AC, HC3Z18125B, HC3Z18125C, HC3Z18125D, HC3Z18125EA, HC3Z18125G, HC3Z18125H, HC3Z18125S, HC3Z18125T, HC3Z18125U, HC3Z18125V, HC3Z18125W, HC3Z18125Y, HC3Z18125Z, LC3Z18124A, LC3Z18124N, LC3Z18124Q, LC3Z18125G, LC3Z18125S, LC3Z18125U, LC3Z18124E |
| GABRIEL | G63886, 61680, 77951 |
| KYB | 349004, 565121, 554347 |
| KYB AMERICA LLC. | 349004, 554347, 565121 |
| MERITOR | MG61886 |
| MOTORCRAFT | ASH25759, ASH25758, ASH25763, ASH435, ASH1134, ASH25757, ASH999, ASH25760, ASH1133, ASH434, ASH25761 |
| Monroe Shocks & Struts | 34525 |
| Motorcraft | ASH866144 |
| NAPA Shocks | 911266, NS911266 |
| OEM | BC3Z18124Z, BC3Z18124V, BC3Z18124U, 7C3Z18124ARA, BC3Z18124AB, BC3Z18124N, HC3Z18124L, 9CZ18124B, 7C3Z18124PDA, BC3Z18124T, HC3Z18124K, 9C3Z18124A, HC3Z18124S, HC3Z18124P, BC3Z18124L, BC3Z18124H, HC3Z18124U, BC3Z18124R, 7C3Z18124EA, BC3Z18124P, HC3Z18124T, 7C3Z18124PBA, BC3Z18124AA, 8C3Z18124NK, 9C3Z18124PDA, 7C3Z18124PGA, HC3Z18124R, 7C3Z18124NCA, HC3Z18124H, 7C3Z18124NGA, 9CZ18124A, BC3Z18124M, BC3Z18124X, BC3Z18124K, 7C3Z18124APA, 7C3Z18124P, HC3Z18124N, 7C3Z18124NDA, HC3Z18124V, 8C3Z18124PK, 7C3Z18124NBA, BC3Z18124S, HC3Z18124M, BC3Z18124Y, 7C3Z18124NEA, BC3418045NEC, 7C3Z18124PCA |
| POWER10 PARTS | SSA-G63886 |
| PRO COMP SUSPENSION | ZX2022, 321553 |
| PRT | 173859 |
| Pro Guard | 61680 |
| Rancho | RS5042, RS55042 |
| SACHS NORTH AMERICA | 316638 |
| SENSEN | 12140252 |
| Sachs | 316638 |
| TRW | JGT4920S |
| Top Quality | 78911266 |
| UNITY AUTOMOTIVE | 213120, 2-213120-001, 4-213120-253170-001, 4-213120-253280-001, 4-213120-252220-001 |
MONROE 911266 Fits Vehicles
- Ford F-250 Super Duty (2005-2025)
- Ford F-350 Super Duty (2005-2025)
