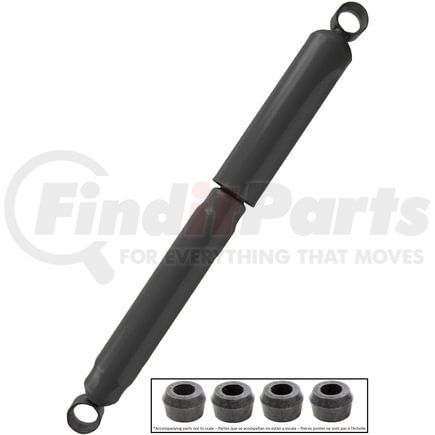

MONROE 66860 Part Description
Manufacturer
Features & Benefits
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
MONROE 66860 Specifications
Product Attributes
| Compressed Length | 15.1563 IN |
| Compressed Length | 385 MM |
| Extended Length | 24.5625 in |
| Extended Length | 623.9 MM |
| Travel Length | 9.407 in |
| Travel Length | 238.9 MM |
| Lower Mount Type | Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Lower Mount Code | L3 |
| Upper Mount Type | Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
| Upper Mount Code | L3 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P00119 |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598074096 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 66860 Cross References
| Brand | Part Number |
|---|---|
| 66860MM, MAE66860 | |
| ACDELCO | 50816 |
| BULLDOG HD SHOCKS | HD1214-0595 |
| Bulldog HD | HD12140595 |
| CHEVROLET | 3919906, 5544812 |
| EUCLID | E83308 |
| FORD | D2HT18045GA, D2TZ18124H, C4TZ18124AA, D2HF18045CA, C4TZ18124AB, D1TZ18124D, C2TZ18124A, D5TZ18124B, D2TF18045GA, D7HT18045JA, C5TZ18124A, D7HT18124JA, D4TZ18124J, C4TZ18124B, D7HT18124GA, D2TZ18124A, C2TA18045B, D7HT18045GA, F1HT18045DB, C4HZ18124F, F1HZ18124B, C3TZ18124A, F1HT18045CA |
| GABRIEL | 83308, 59022, 727635 |
| GM | 5544812, 3919906 |
| GMC | 5544812 |
| General Motors | 5544812, 3919906 |
| Gold Shock Absorber | 5001277, 9161080 |
| HALDEX | SA66860 |
| INTERNATIONAL | 383379C91, 873622C91, 471203C91, AMS660117, 453575C91, AMS600117 |
| KYB | KG6010, 345614, 345615, KG6007 |
| KYB AMERICA LLC. | KG6010 |
| MACK | 600117MT, 660117MT |
| MERITOR | M83308, M89435 |
| MONROE VINTAGE | 16615, 4121, 4118, 6862, 6997, 600117, 6860, 601117 |
| MOTORCRAFT | CAX860, AX269A |
| Monroe Shocks & Struts | 16615, 4118, 4121, 600117, 601117, 6860, 6862, 6997 |
| NAPA Shocks | 66860 |
| NAVISTAR | AMS66860 |
| NEWAY | 57306860, 57366860 |
| NUTURN/LELAND | L59022, L59085 |
| ORION | 102345034, 10234503 |
| PETERBILT | 4940633 |
| PRT HD | 175358 |
| SACHS NORTH AMERICA | 317958 |
| Sachs | 317958 |
| VOLVO / WHITE / GMC | 3919906 |
| Volvo GM Heavy Truck | 3919906 |
MONROE 66860 Fits Vehicles
- Ford LNT800 (1981-1984)
- Ford F-600 (1971-1979)
- Ford F-700 (1970-1979)
- Ford CT8000 (1981-1990)
- Ford LNT8000 (1981-1989)
- Ford LNT9000 (1991-1997)
- Ford LL9000 (1991-1992, 1994-1996)
- Ford LA8000F (1991-1997)
- Ford LTS9000 (1990-1997)
- Ford LT9000 (1991-1996)
- Ford LTLA9000 (1992-1997)
- Ford LTA9000 (1988-1997)
- Ford LLA9000 (1992-1997)
- Ford L9000 (1991-1997)
- Ford LS9000 (1990-1997)
- Ford LA9000 (1988-1997)
- Ford L8000F (1991-1997)
- Ford LN800 (1980-1985)
- Ford LN600 (1980-1985)
- Ford LN700 (1980-1986)
- Ford LN8000 (1981-1997)
- Ford LN7000 (1981-1997)
- Ford C8000 (1981-1990)
- Ford C7000 (1980-1986)
- Ford C600 (1980-1986)
- Ford C800 (1980-1989)
- Ford C700 (1980-1986)
