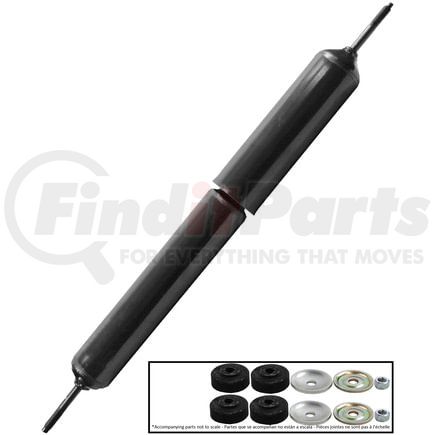

(888) 312-8812 Login SignupMagnum Front Suspension Shock Absorber
| Compressed Length | 11.5 IN |
| Compressed Length | 292.1 MM |
| Extended Length | 18.75 in |
| Extended Length | 476.3 MM |
| Travel Length | 7.25 in |
| Travel Length | 184.1 MM |
| Lower Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Lower Mount Type | Stem |
| Lower Mount Code | S4 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | (2) P01136 |
| Body Color | Gray |
| Color | Gray |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598074041 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| 66829MM, MAE66829 | |
| BULLDOG HD SHOCKS | HD1214-0574 |
| CHEVROLET | 3919901 |
| FORD | C1TZ18124J, C3TA18045B, D1TZ18124J, C1TT18045H, C4TA18045B, C1TT18045M, B7AZ18124A, C1TZ18124H, C4TZ18124A, C6PF18077CM, B7AZ18125B |
| GABRIEL | 83103, 59015 |
| GM | 3919901 |
| General Motors | 3919901 |
| HALDEX | SA66829 |
| INTERNATIONAL | AMS600155, AMS660155 |
| MACK | 600155MT, 600155, 660155MT |
| MERITOR | M83103 |
| MONROE VINTAGE | 660155, 12789, 1137, 4052, 601155, KB18762, LB12310, 6829, 1080 |
| Monroe Shocks & Struts | 1080, 1137, 12789, 4052, 601155, 660155, 6829, KB18762, LB12310 |
| NAPA Shocks | 66829 |
| NAVISTAR | AMS66829 |
| NEWAY | 57366829, 57306829 |
| REYCO GRANNING | 2077201 |
| VOLVO / WHITE / GMC | RCSA3103, 3919901, SA3103 |
| Volvo GM Heavy Truck | 3919901, RCSA3103, SA3103 |
