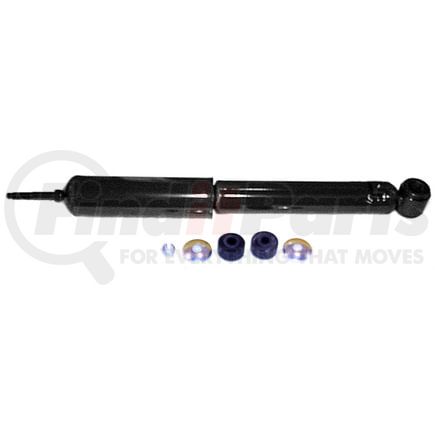

Monroe 66675 - Magnum Suspension Shock Absorber
$6649
MSRP: $145.43
Save: $78.94
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MONROE part description
Product Description
Magnum Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
Product Attributes
| Lower Mount Code | L3 |
| Upper Mount Code | S5 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 13.375 IN |
| Dust Shield Material | Metal |
| Extended Length | 22 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
| Parts Pack(s) | P01167 |
| Travel Length | 8.625 in |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Compressed Length | 339.7 MM |
| Extended Length | 558.8 MM |
| Travel Length | 219.1 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598075307 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
Part Interchanges
MONROE 66675 Cross Reference
We have 7 alternatives for the 66675 by MONROE:
Fits Vehicles
- GMC W5500 Forward (1988-1993)
- GMC W7500 Forward (1986-1996)
- Isuzu NPR (1986-2020)
- Isuzu FVR (1988-1992, 1994-1996)
- GMC W4500 Forward (1992-1999)
- Chevrolet W4500 Tiltmaster (1992-2002)
