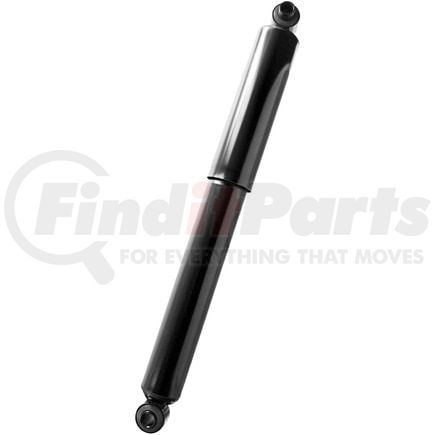

MONROE 65156 Monroe Shocks & Struts Magnum 65156 Shock Absorber

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

MONROE 65156 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65156 Specifications

Product Attributes

Lower Mount Code LS54
Upper Mount Code LS71
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Internal Construction Type Twin Tube
Adjustable Damping No
Color Black
Finish Painted
Shock Absorber Bore Size 1-3/4 IN
Foam Cell Design No
Shaft Diameter 18 MM
Compressed Length 15.5313 IN
Dust Shield Material Metal
Extended Length 25.3438 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Parts Pack(s) None
Travel Length 9.8125 in
Upper Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 2.3/4" Sleeve OAL

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598170569
VMRS Code 016008003
UNSPSC 25172011

MONROE 65156 Cross References

BrandPart Number
65156MM, MAE65156
AutomannA85321
BLUE BIRD1707405
GABRIEL85005, 89430
HALDEXSA65156
KYB345616
MERITORM85321
MONROE VINTAGEOE10314
MeritorM85005
Monroe Shocks & StrutsOE10314
NAPA Shocks65156
Watson & Chalin17430

MONROE 65156 Fits Vehicles

  • Blue Bird TC2000 (1989-2004)
