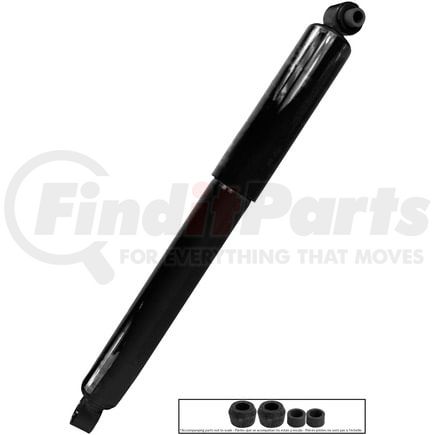

(888) 312-8812 Login SignupMagnum Suspension Shock Absorber
| Lower Mount Code | L3 |
| Upper Mount Code | LS62 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Internal Construction Type | Twin Tube |
| Adjustable Damping | No |
| Color | Black |
| Finish | Painted |
| Shock Absorber Bore Size | 1-3/4 IN |
| Foam Cell Design | No |
| Shaft Diameter | 18 MM |
| Compressed Length | 16.125 IN |
| Dust Shield Material | Metal |
| Extended Length | 25.5 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
| Parts Pack(s) | None |
| Travel Length | 9.375 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2.9/16" Sleeve OAL |
| Compressed Length | 409.6 MM |
| Extended Length | 647.7 MM |
| Travel Length | 238.1 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Bore Size | 44.5 MM |
| Shock Absorber Bore Size | 1.75 IN |
| Adjustable Damping | No |
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598170286 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| B71-6009, 65128MM, MAE65128 | |
| BULLDOG HD SHOCKS | HD1215-0023 |
| Bulldog HD | HD12150023 |
| Dayton Parts | 44185031 |
| FCS | F347310 |
| GABRIEL | 85031, 665617 |
| Gold Shock Absorber | 8160115 |
| HALDEX | SA65128 |
| KENWORTH | 665617, 1TX665617 |
| Kenworth | B711000 |
| MERITOR | M85031 |
| MONROE VINTAGE | 650128 |
| Monroe Shocks & Struts | 650128 |
| NAPA Shocks | 65128 |
| OEM | 665617, B711000 |
| PETERBILT | 665617 |
| SACHS NORTH AMERICA | 410044 |
| Sachs | 410044 |
| WORLD AMERICAN | WA01-85031 |
