MONROE 65112 Magnum Amortisseur

(0)

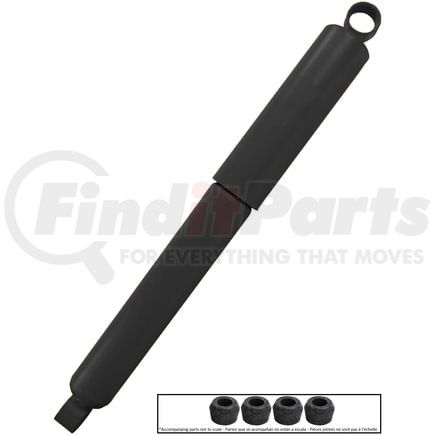

Monroe 65112 Suspension Shock Absorber Magnum Amortisseur
MONROE
Tap to view 3 more

MSRP: $100.09

$93.49

Save $6.60

Limited availability at this price!

In Stock

Get it by Friday, Jul 17
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details

MONROE 65112 Part Description

Manufacturer

MONROE

Features & Benefits

  • INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65112 Specifications

Product Attributes

Compressed Length 15.125 IN
Compressed Length 384.2 MM
Extended Length 24.75 in
Extended Length 628.7 MM
Travel Length 9.625 in
Travel Length 244.5 MM
Lower Mount Type Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Lower Mount Type Loop (Eyelet) Bushing
Lower Mount Code L3
Upper Mount Type Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Upper Mount Code L3
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Gas Charged Yes
Mounting Hardware Included No
Parts Pack(s) None
Body Color Black
Cylinder Color Black
Color Black
Finish Painted
Cylinder Finish Painted
Dust Shield Included Yes
Dust Shield Material Metal
Shock Absorber Bore Size 44.5 MM
Shock Absorber Bore Size 1.75 IN
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Internal Construction Type Twin Tube
Grade Type Premium
Adjustable Damping No
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No
Part Description Shock Absorber
Foam Cell Design No
Shaft Diameter 18 MM

Additional Information

MSDS Sheet Number 01170
Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598170125
VMRS Code 016008003
UNSPSC 25172011

MONROE 65112 Cross References

BrandPart Number
65112MM, MAE65112
BULLDOG HD SHOCKSHD1215-0134
Bulldog HDHD12150134
CHEVROLET3919942
FORDF1HZ18124K, F1HT18045EA, F1HT18045EB, F6HT18045RB, F1HZ18124C, F1HT18045RA, F1HT18045RB
GABRIEL89402
GM3919942
General Motors3919942
Gold Shock Absorber5001317
HALDEXSA65112
INTERNATIONALAMS650112
MACK650112MT, 650112
MERITORM89402
MONROE VINTAGE70141, 70136, 70143, 650112, 70134
Monroe Shocks & Struts650112, 70134, 70136, 70141, 70143
NAPA Shocks65112
NAVISTARAMS65112
NEWAY57365112
VOLVO / WHITE / GMC3919942
Volvo GM Heavy Truck3919942

MONROE 65112 Fits Vehicles

  • Ford LNT9000 (1991-1997)
  • Ford LN9000 (1991-1997)
  • Ford LA8000F (1991-1997)
  • Ford LTS9000 (1990-1997)
  • Ford LT9000 (1991-1997)
  • Ford LS9000 (1990-1997)
  • Ford L9000 (1991-1997)
  • Ford L8000F (1991-1997)
  • Ford LN8000 (1991-1997)
  • Ford LN7000 (1991-1997)
