MONROE 5936 Part Description
Manufacturer
Product Description

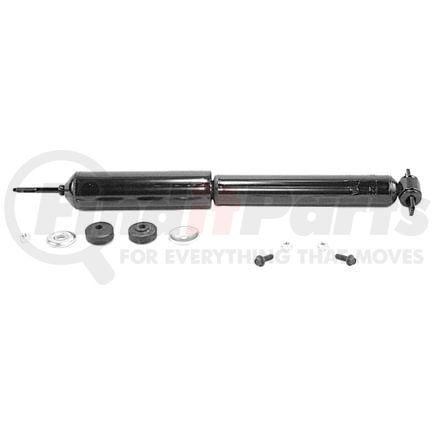

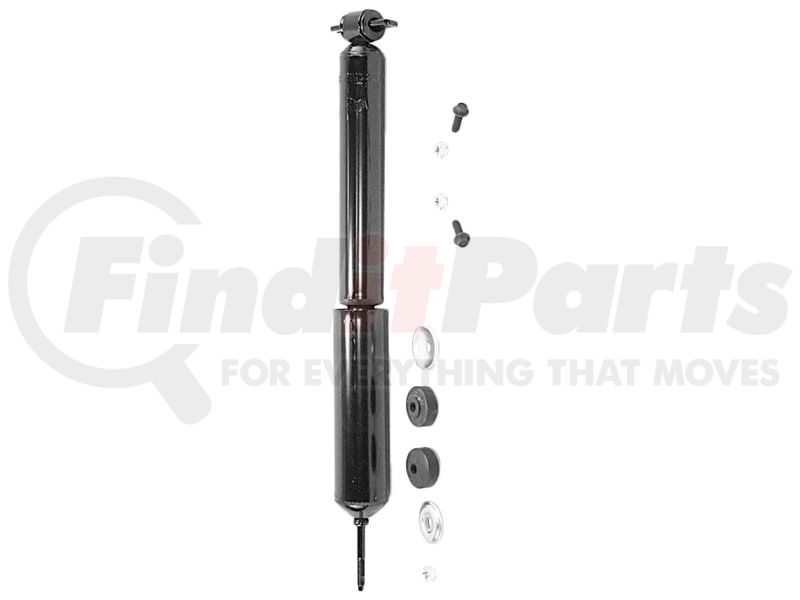

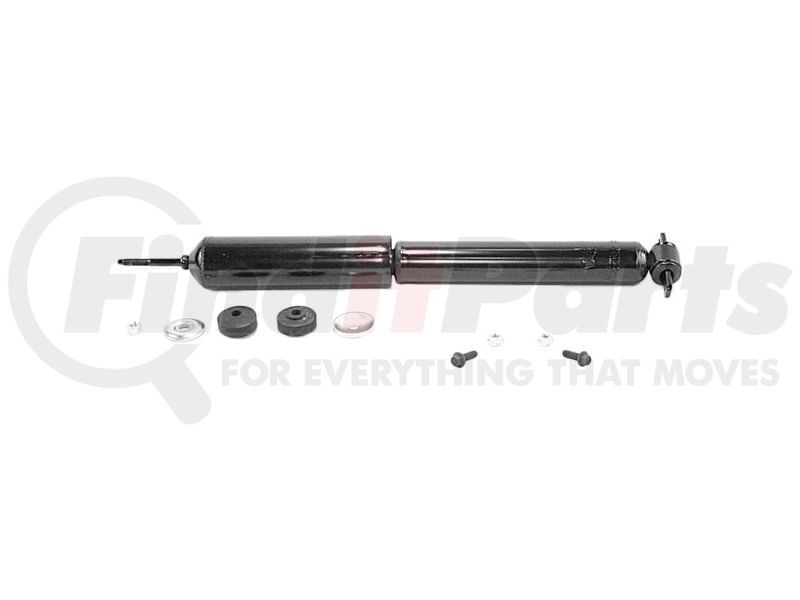

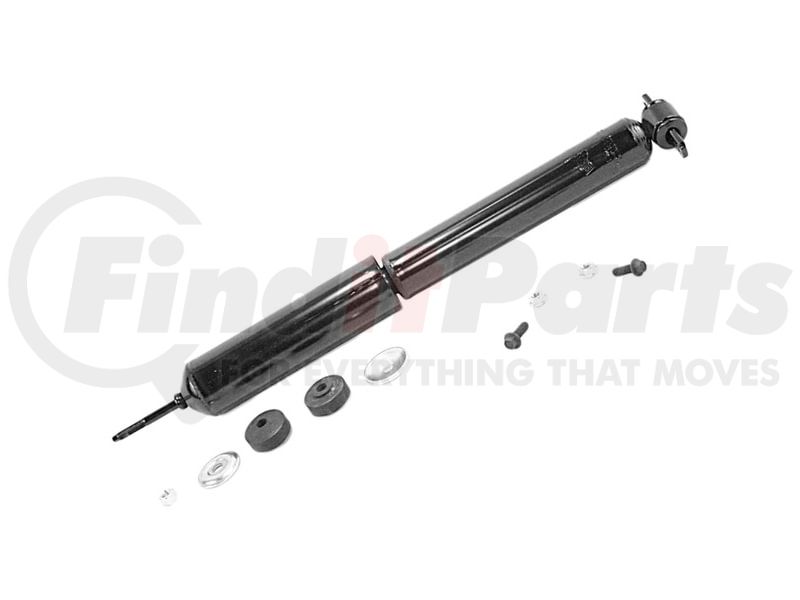

Monroe OESpectrum Passenger Car Shock Absorber
Application Summary
1995-1986 Ford Taurus Rear, 1995-1986 Mercury Sable Rear
Monroe OESpectrum Passenger Car Shock Absorber
Specifications
- Upper Mounting Code :Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
- Lower Mounting Code :Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
- Compressed Length :12.125"
- Extended Length :20.250"
- Travel Length :8.125"
- Dust Shield :Yes
- Parts Pack(s) :P941& P1136
- Compressed Bumper Stop :No
- Extended Bumper Stop :No
- Extended Hydraulic Lockout :No
- Compressed Hydraulic Lockout :No
- Dust Shield Material :Metal
- The Monroe Sensa-Trac passenger car shock absorber with PSD (position sensitive damping) and the Safe Tech system combines our exclusive precision tapered grooves in the pressure tube with application engineered valving and Fluon banded piston to improve the ride, handling, and safety characteristics ofthe vehicle. These features allow the Monroe Sensa-Trac passenger car shock absorber to adjust more rapidly to changing road and weight conditions than any other available shock absorber.
- All Weather Fluid: Contains special modifiers to reduce friction and ensure smooth rod reaction.
- Full Displaced Valving: Tuned specifically for each application, this valving automatically adjusts to road extremes to provide consistency and ride
- Fluon Banded Piston: The fluon band provides consistent sealing between the piston and pressure tube which delivers better control and increased durability.
- 1-3/16" Bore: Larger bore than most shocks to provide more efficient and consistent control.
- Unique Groove Tube - PSD: Precision tapered grooves in the pressure tube perform like an additional stage of valving for optimum ride tuning.
- Nitrogen Gas Charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration.
- 1/2" Diameter Piston Rod: Nitrocarburized rod for long service life. On non-dust shield units only.
MONROE 5936 Specifications
Product Attributes
| Upper Mounting Code | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Lower Mounting Code | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center) |
| Compressed Length | --- - 12.125" |
| Extended Length | --- - 20.250" |
| Travel Length | --- - 8.125" |
| Dust Shield | --- - 'Yes' |
| Parts Pack(s) | --- - P1136 & P941 |
| Cylinder Included | --- - 'No' |
| Compressed Bumper Stop | No |
| Extended Bumper Stop | No |
| Extended Hydraulic Lockout | No |
| Dust Shield Material | --- - Metal |
| Feature Point | --- - ! 'Special Seal: ''Self-lubricating'' fluid seal designed to retain gas without excessive wear or friction.' |
| Most Popular Make / Model | Ford Taurus |
| Most Popular Year | 1995 |
| Min Year Covered | 1986 |
| Max Year Covered | 1995 |
| Total Part VIO | 23556 |
| Product Grade | Premium |
| Accesorio(s) | P00941,P01136 |
| Bloqueo hidráulico extendido | No |
| Compressed Length | 12.125 IN |
| Cubre polvo | Yes |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Extended Length | 20.250 in |
| Parts Pack | P00941,P01136 |
| Tipo de Montura Inferior | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center) |
| Tipo de Montura Superior | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Tope de rebote comprimido | No |
| Tope de rebote extendido | No |
| Travel Length | 8.125 in |
MONROE 5936 Cross References
| Brand | Part Number |
|---|---|
| 5936ST, GD9Z54044D90GC | |
| Ford | 5U2Z18V124UA, E7DZ18125C, F1DZ18124A, F1DZ18124B, F2DZ18124A, F2DZ18125C, F3DZ18125B, F4DZ18124B, F4DZ18124C, F4DZ18124D, F4DZ18125C, F4DZ18125D, F5DZ18125B, F7AZ18124HB, F7AZ18125GA, F7AZ18125PA, F7AZ18125PB, FODZ18124A, FODZ18125B, XF1Z18125BA |
| KYB AMERICA LLC. | 344271, KG5567 |
| Mercury | E7DZ18125B, E7DZ18125C, F1DZ18124B, F1DZ18125A, F2DZ18124B, F2DZ18125A, F2DZ18125C, F3DZ18124B, F3DZ18125A, F3DZ18125B, F4DZ18124A, F4DZ18124B, F4DZ18124C, F4DZ18124D, F4DZ18125A, F4DZ18125B, F4DZ18125C, F4DZ18125D, F5DZ18125A, F5DZ18125B, F7AZ18125GA, FODZ18124A, FODZ18125A |
MONROE 5936 Customer Reviews
No reviews yet
Be the first to review this product!
MONROE 5936 Manufacturer Information
Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.
