(888) 312-8812 Login SignupMONROE 5809 OESpectrum Front Suspension Shock Absorber
Tap to view 3 more
MSRP: $47.60
$4749
Save $0.11
Limited availability at this price!
In Stock
Get it by Monday, Jul 20
MONROE 5809 Part Description
Manufacturer
Product Description

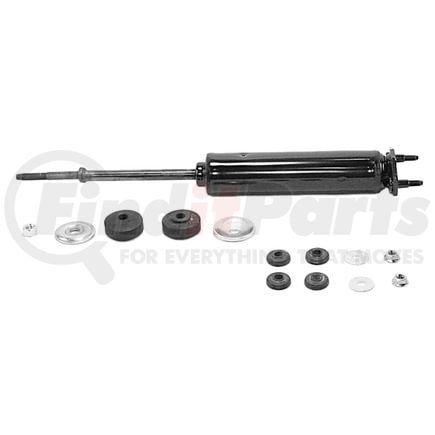

OESpectrum Front Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 5809 Specifications
Product Attributes
| Compressed Length | 9 IN |
| Compressed Length | 228.6 MM |
| Extended Length | 13.625 in |
| Extended Length | 346.1 MM |
| Travel Length | 4.625 in |
| Travel Length | 117.5 MM |
| Lower Mount Type | Stud Plate Mount |
| Lower Mount Type | Stud Plate |
| Lower Mount Code | SP |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P00423,P01136 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598040053 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5809 Cross References
| Brand | Part Number |
|---|---|
| 5809ST, GD9Z17D957FPTM | |
| AUTOZONE | TS32-33922B, TS34-32552B |
| AutoZone | TS3233922B, TS3432552B |
| Duralast | TS3233922B, TS3432552B |
| FCS | 343339 |
| FCS AUTO PARTS | 343339 |
| GABRIEL | 82069, 82126 |
| KYB | 343133, 343156, KG4505 |
| KYB AMERICA LLC. | KG4505 |
| MasterPro Shocks and Struts | FD144 |
| NAPA Proformer | SH81491, SH82126 |
| NAPA Shocks | 5809, NS5809 |
| Sensen | 12130661 |
MONROE 5809 Fits Vehicles
- American Motors Javelin (1970-1974)
- Mercury Montego (1968-1971)
- Mercury Cyclone (1968-1971)
- Mercury Comet (1960-1969)
- Ford Torino (1968-1971)
- Ford Ranchero (1966-1971)
- Ford Falcon Sedan Delivery (1961-1965)
- Ford Falcon (1960-1970)
- Ford Fairlane (1966-1970)
- American Motors Ambassador (1970-1974)
- American Motors Spirit (1979-1983)
- American Motors Matador (1971-1978)
- American Motors Hornet (1970-1977)
- American Motors Gremlin (1970-1978)
- American Motors Concord (1978-1983)
- American Motors AMX (1978-1980)
- Mercury Monarch (1975-1980)
- Lincoln Versailles (1977-1980)
- Ford Granada (1975-1980)
