MONROE part description

Product Description

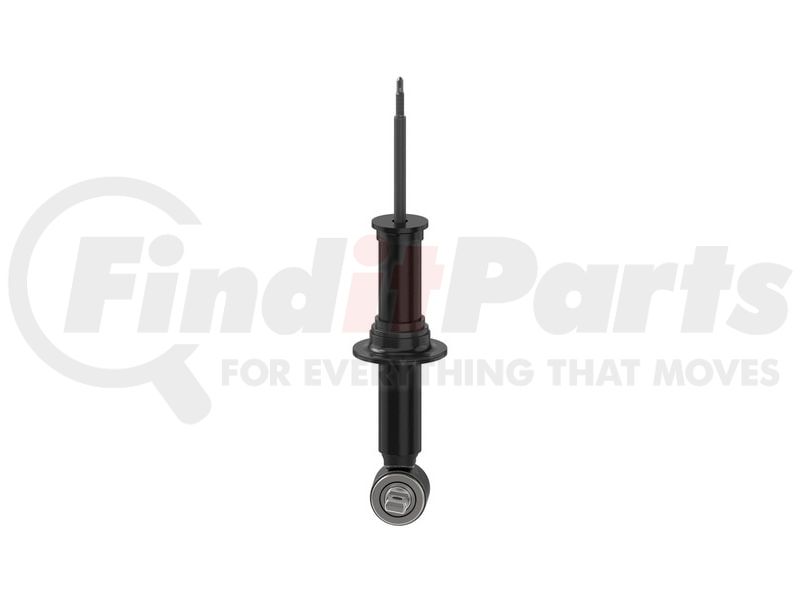

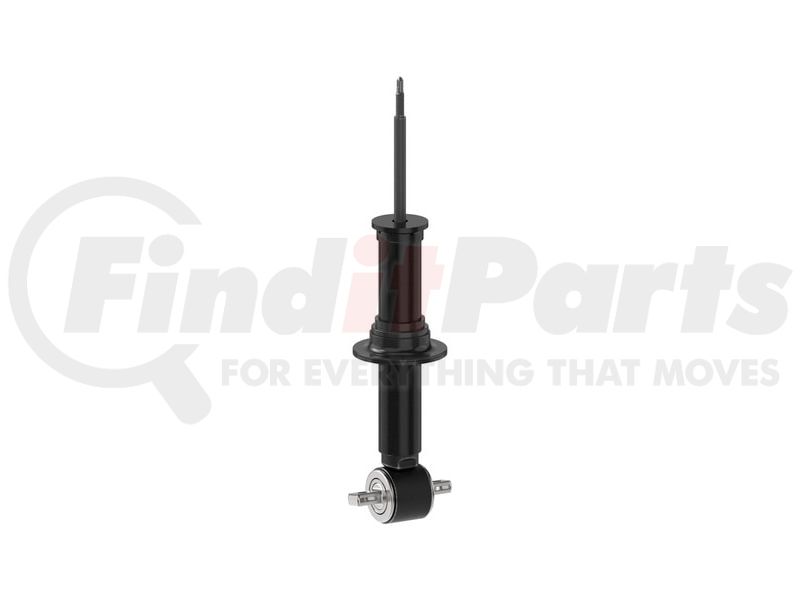

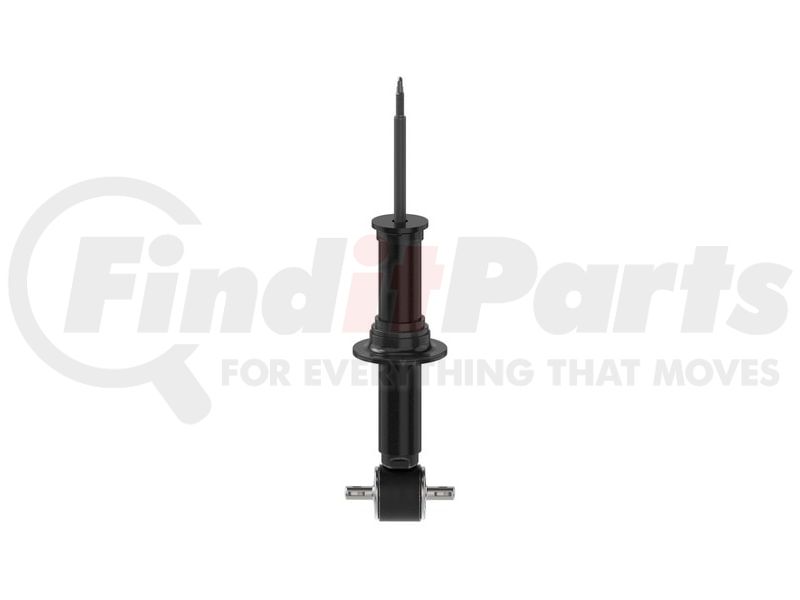

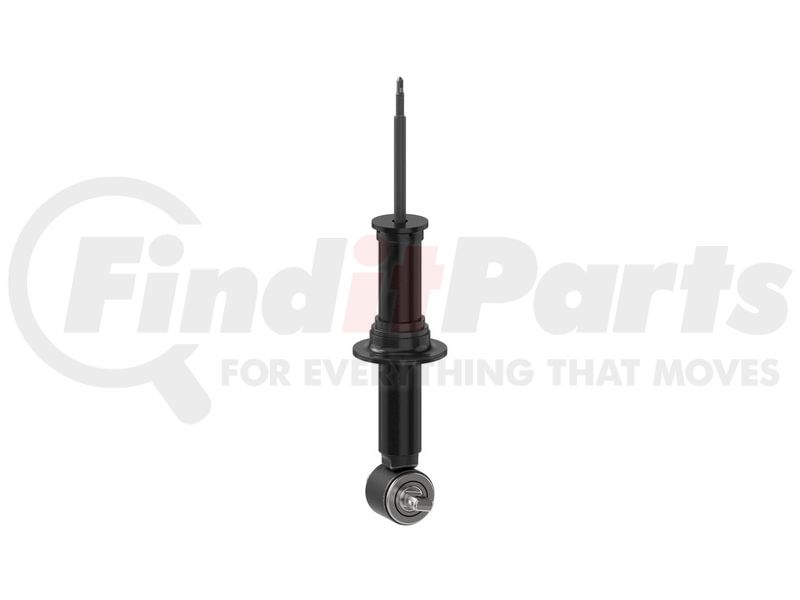

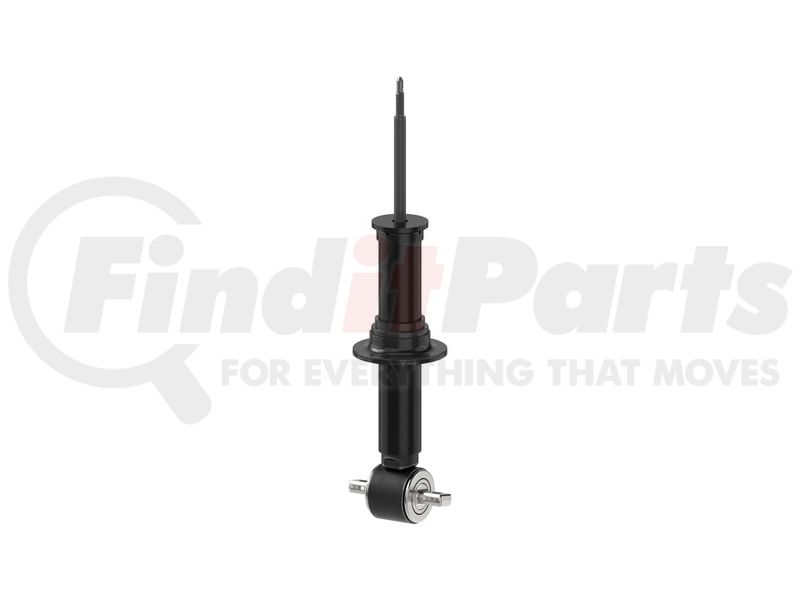

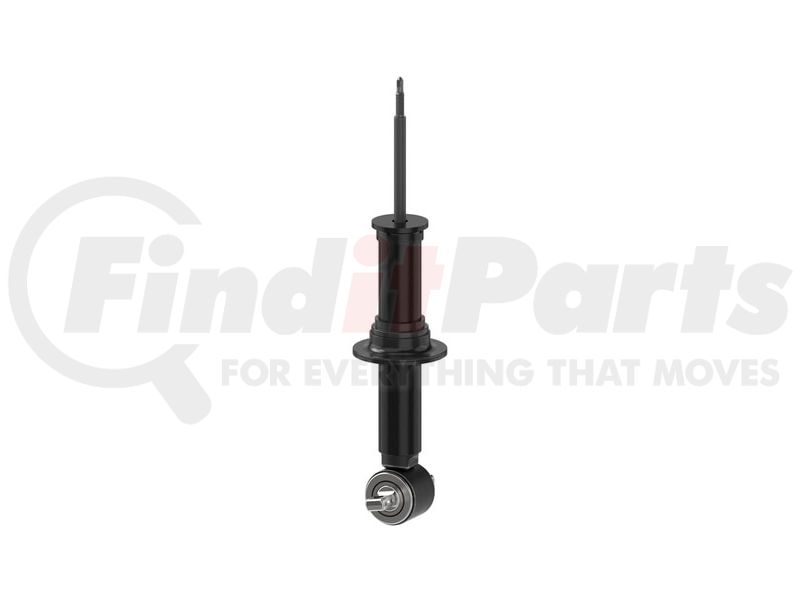

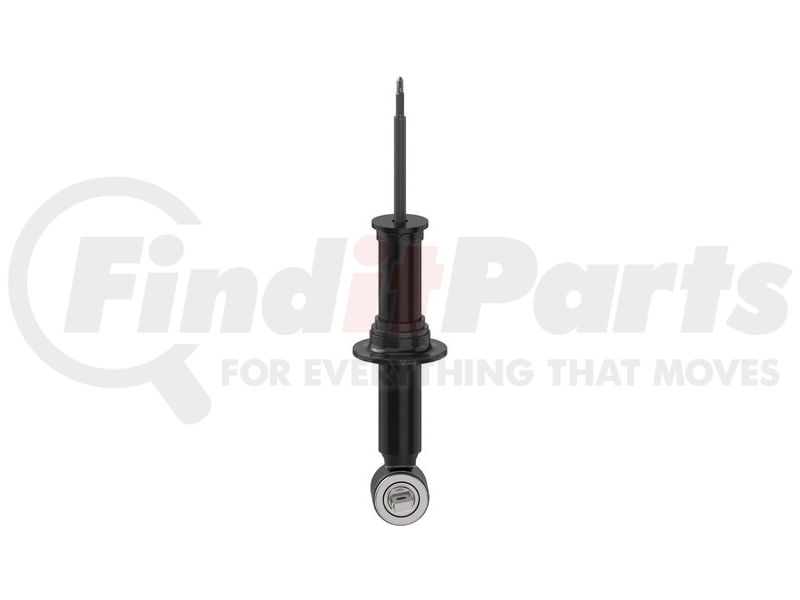

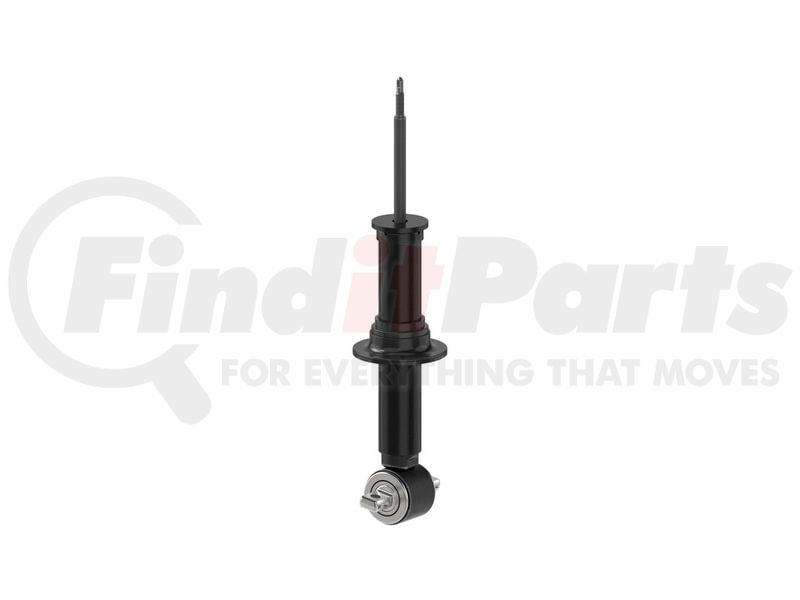

OESpectrum Suspension Strut

Features & Benefits

  • EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
  • IMPROVES PERFORMANCE -- High pressure nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration and tight damping response provides vehicle control
  • CONSISTENT RIDE -- High-temperature OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • MAINTAINS STABILITY -- Monotube Technology maintains vehicle control over bumps, dips and potholes for vehicles originally equipped with monotube shocks and struts
  • CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and high-strength pressure tube for better control, increased durability and longer service life
  • BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee

Product Attributes

Compressed Length 14.513 IN
Extended Length 18.06 in
Travel Length 3.547 in
Body Length 13.142 IN
Body Type SS7
Dust Shield Included No
9783 No
9908 No
Parts Pack(s) P1415
Lower Mount Type Special Mount
Upper Mount Type Stem Mount - Stem Length X M10 Thread Pitch
Lower Mount Code SPEC
Upper Mount Code S1
Hydraulic Lockout No
Compressed Length 368.6 MM
Extended Length 458.7 MM
Travel Length 90.1 MM
Body Length 333.8 MM
Shock Absorber Rod End Measuring Point Base of Stem

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) CA
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598042859
VMRS Code 016008003
UNSPSC 25172007

Part Interchanges

Fits Vehicles

  • Chevrolet Cheyenne (2007-2016)
  • GMC Sierra (2007-2013)
  • Chevrolet Silverado 2500 (2007-2013)
  • GMC Sierra 1500 (2007-2013)
  • Chevrolet Silverado 1500 (2007-2013)
