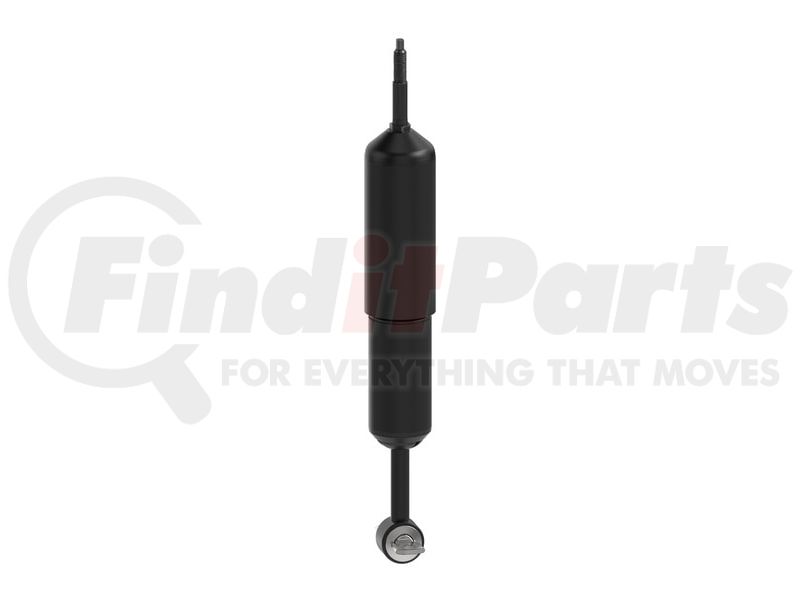

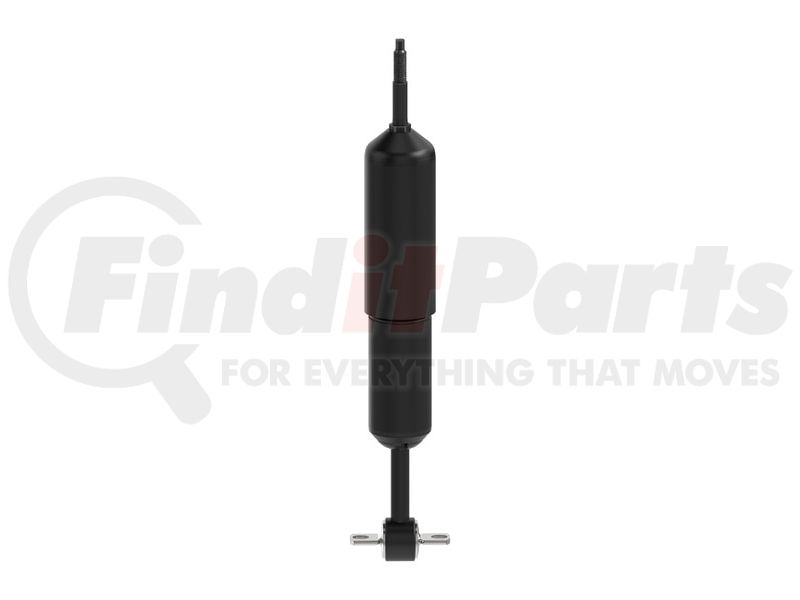

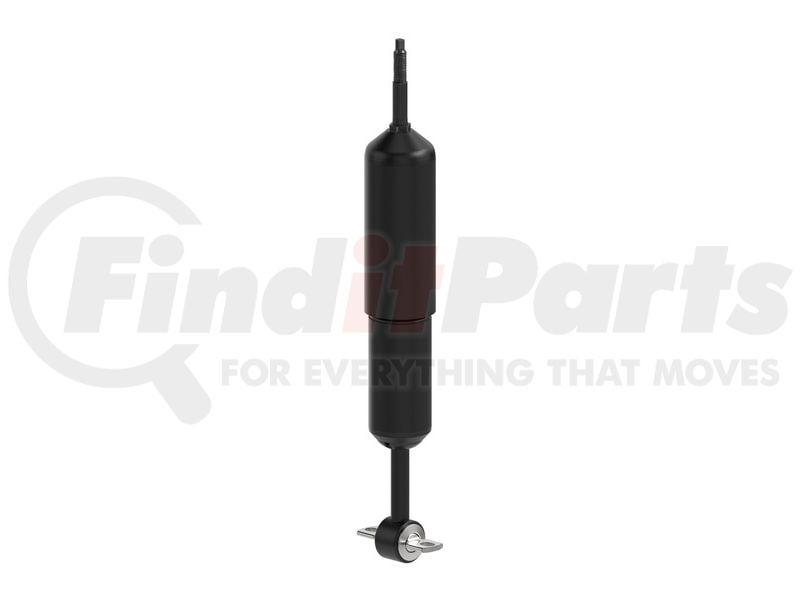

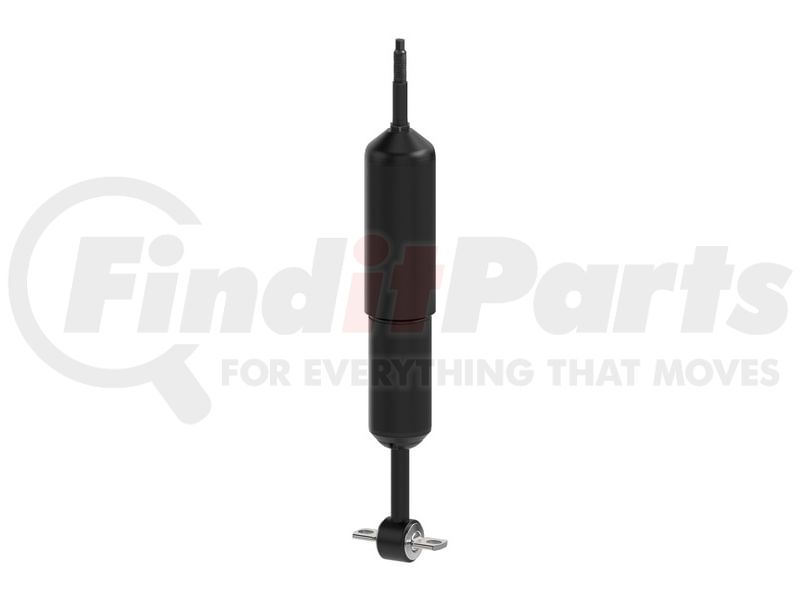

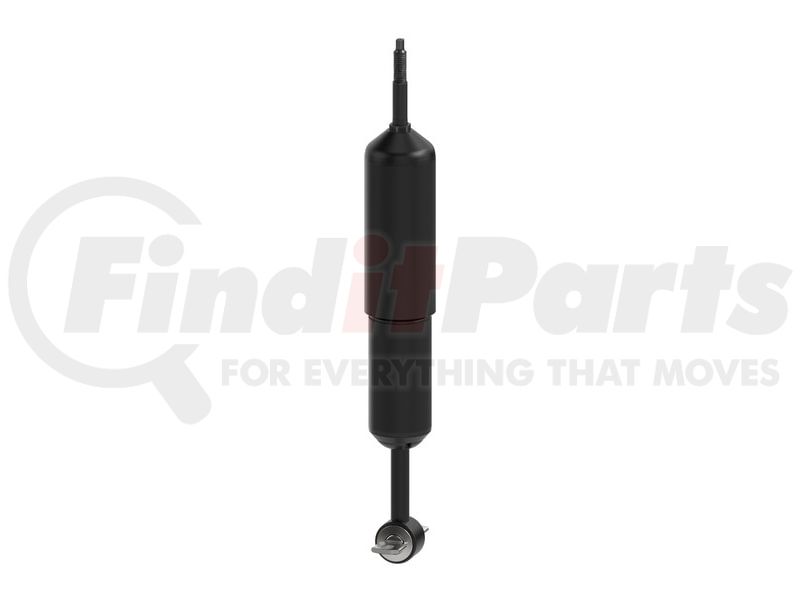

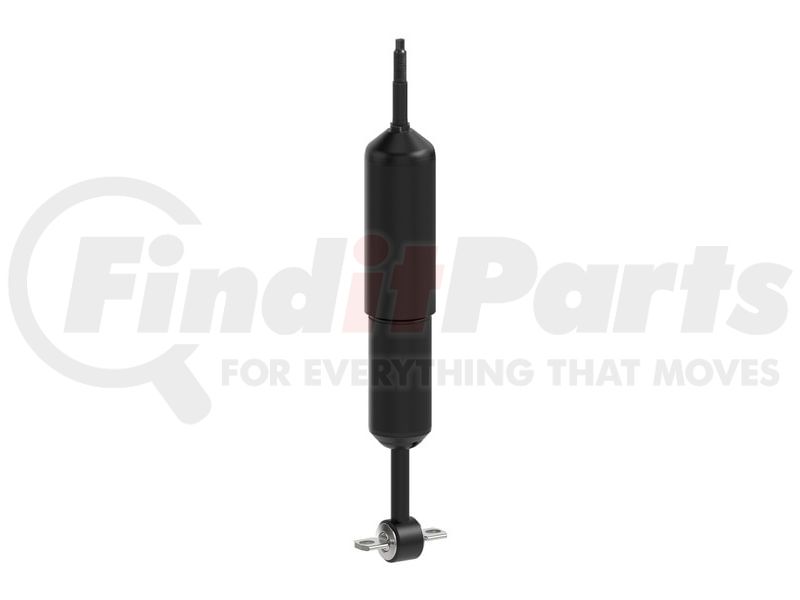

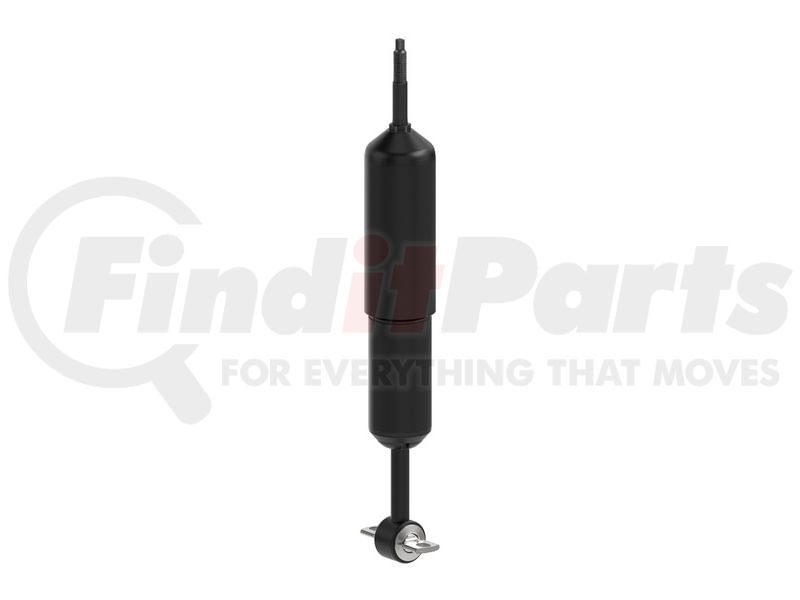

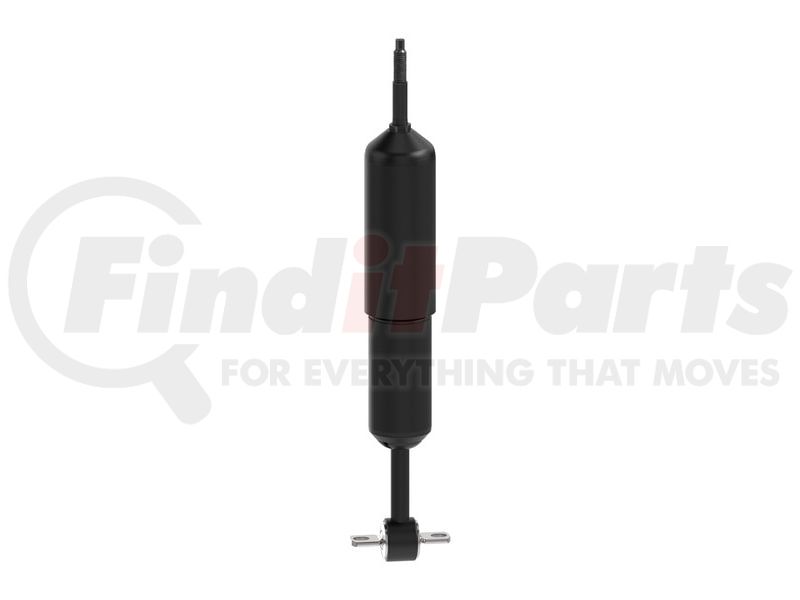

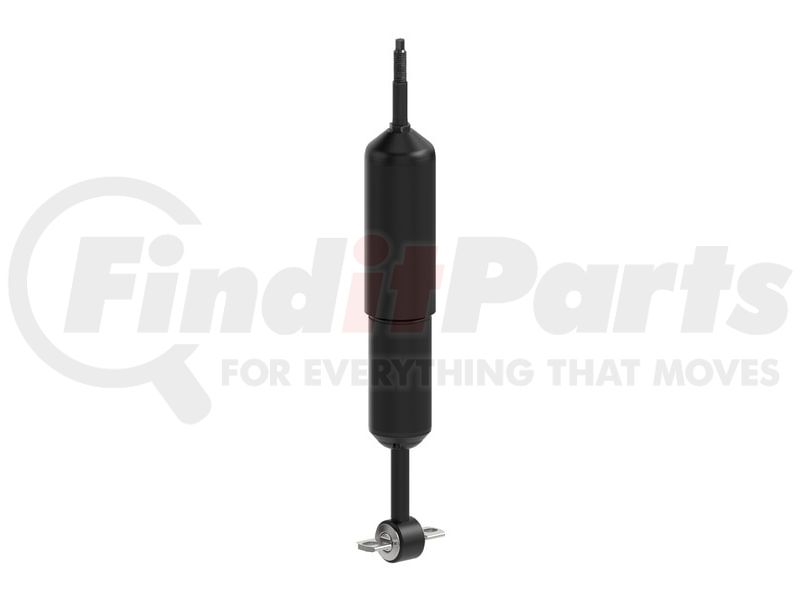

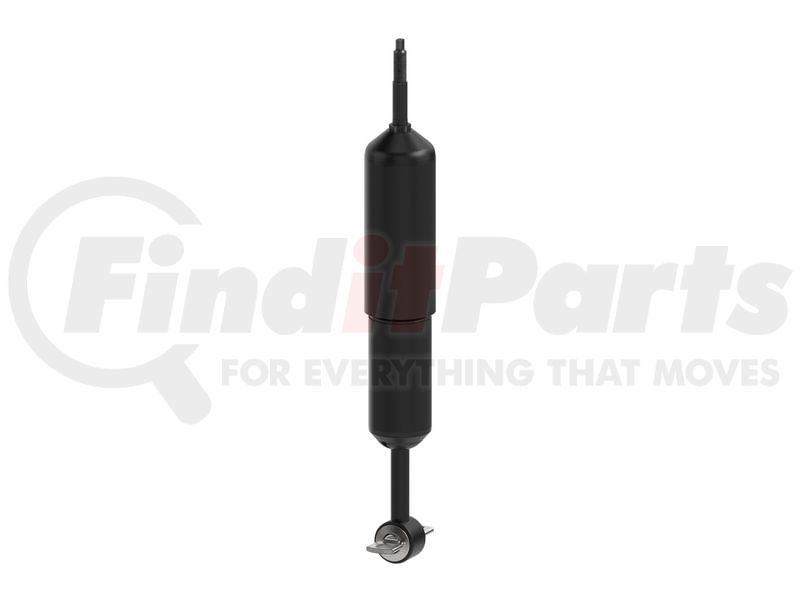

(888) 312-8812 Login SignupMONROE 37122 OESpectrum Amortiguador
Tap to view 5 more
MSRP: $101.47
$6099
Save $40.48
Limited availability at this price!
In Stock
Get it by Friday, Jul 10
MONROE 37122 Part Description
Manufacturer
Features & Benefits
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 37122 Specifications
Product Attributes
| Compressed Length | 13.625 IN |
| Compressed Length | 346.1 MM |
| Extended Length | 18 in |
| Extended Length | 457.2 MM |
| Travel Length | 4.375 in |
| Travel Length | 111.1 MM |
| Lower Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center) |
| Lower Mount Type | T-Bar |
| Lower Mount Code | XP4 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01135,P00941 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598156129 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 37122 Cross References
| Brand | Part Number |
|---|---|
| 37122ST | |
| AUTOZONE | MS34-31481B, TS34-31481B, TS34-31492B |
| AutoZone | MS3431481B, TS3431481B, TS3431492B |
| Duralast | TS3431481B, MS3431481B, TS3431492B |
| FCS | 341519, 341567 |
| FCS AUTO PARTS | 341519 |
| Ford | 1L2Z18124EA, 1L2Z18125HA, 1L5Z18124CA, 1L5Z18124EA, 1L5Z18124HA, 1L5Z18125AA, 1L5Z18125BA, 1L5Z18125CA, 1L5Z18125DA, 1L5Z18125EA, 1L5Z18125FA, 1L5Z18125GA, 1L5Z18125HA, 1L5Z18125JA, 1L5Z18125KA, 1L5Z18125LA, 2L5Z18124HA, 3L5Z18124BA, 3L5Z18124CA, 3L5Z18124DA, 3L5Z18124JA, 3L5Z18124KA, 3L5Z18124LA, 3L5Z18124MA, 3L5Z18124NA, 3L5Z18125AA, 3L5Z18125AB, 3L5Z18125AF, 3L5Z18125AH, 3L5Z18125AJ, 3L5Z18125AK, 3L5Z18125AL, 3L5Z18125VA, 3U2Z18124BC, 3U2Z18124BD, 3U2Z18124BN, 3U2Z18124CAA, 3U2Z18125FA, 4L2Z18125DA, 6L5Z18124A, 6L5Z18125AA, 6L5Z18125ABA, 6L5Z18125ACA, 6L5Z18125AGA, 6L5Z18125AJA, 6L5Z18125AKA, 6L5Z18125ALA, 6L5Z18125AMA, 7L5Z18124AJ, 7L5Z18124AK, 7L5Z18125AG, 8L5Z18124A, 8L5Z18124AB, 8L5Z18124AJ, 8L5Z18124AK, 8L5Z18125A, 8L5Z18125AB, 8L5Z18125AJ, 8L5Z18125AK, 8L5Z18125AP, 9L5Z18124A, 9L5Z18125AP, AL5Z18125A, AL5Z18125AB, AL5Z18125AG, AL5Z18125AK, F57Z18124MFA, F57Z18124SF, F57Z18125AC, F57Z18125BC, F57Z18125LG, F57Z18125RE, F5TZ18124B, F77Z18124VA, F77Z18124VB, F87Z18124AA, F87Z18124CA, F87Z18124DA, F87Z18124EB, F87Z18124JA, F87Z18125AA, F87Z18125BA, F87Z18125CA, F87Z18125DA, F87Z18125EA, F87Z18125LA, F87Z18125MA, F87Z18125NA, F87Z18125RA, F8YZ18124AA, F8YZ18125AA, X75Z18124BA, XL2Z18124BA, XL2Z18125BA, XL2Z18125CA, XL2Z18125FA, XL2Z18125FB, XL5Z18124AA, XL5Z18124BA, XL5Z18124DA, XL5Z18125AA, YL5Z18124AA, YU3Z18124AA, YU3Z18125AA |
| GABRIEL | G63678 |
| KYB | 561001, 341302, KG54309, 344397, KG54328 |
| KYB AMERICA LLC. | 561001, KG54309 |
| MERITOR | MG60221 |
| MasterPro Shocks and Struts | FD102 |
| Mazda | 1F0034700, 1F0134700, 1F2028700, 1F2034700, 1F2128700, 1F2134700, 1F2228700, 1F2328700, 1F2428700, 1F2528700, 1F6028700, 1F6034700B, 1F6128700, 1F6134700, 1F6228700B, 1F6234700, 1F6328700B, 1F6334700A, 1F6428700B, 1F6434700A, 1F6528700A, 1F6534700, 1F6628700, 1F6628700B, 1F6634700, 1F6734700, 1F7328700, 1F7428700A, 1FAA34700, 1FBC28700, 1FBC34700, ZZM428700, ZZM528700, ZZM628700, ZZM728700, ZZP028700, ZZP034700, ZZP128700, ZZP134700, ZZP228700, ZZP234700, ZZP328700, ZZP334700, ZZP428700, ZZP434700, ZZP528700, ZZP628700, ZZP628700A, ZZR034700, ZZR134700, ZZR234700 |
| Mercury | F57Z18124SF, F57Z18125AC, F57Z18125BC, F57Z18125LG, F57Z18125RE, F5TZ18124B, F77Z18124VA, F77Z18124VB, XL2Z18124BA, XL2Z18125FA, XL2Z18125FB |
| Monroe Shocks & Struts | 210220 |
| NAPA | SH81893 |
| NAPA Proformer | SH81893, SH81890, SH81916 |
| NAPA Shocks | 37122 |
| NAVISTAR | AMS37122 |
| OEM | 8L5Z18124AK, 8L5Z18124AJ |
| POWER10 PARTS | SSA-G63678 |
| PRT | 173976 |
| Rancho | RS5229, RS55229 |
| SENSEN | 12140187 |
| Top Quality | 7837122 |
| UNITY AUTOMOTIVE | 213140, 2-213140-001, 4-213140-253220-001, 4-213140-253180-001, 4-213140-253190-001 |
| Ultra Spring Seat | G63678 |
MONROE 37122 Fits Vehicles
- Ford Explorer Sport (2001-2003)
- Ford Explorer Sport Trac (2001-2005)
- Mazda B4000 (1998-2009)
- Mazda B3000 (1998-2008)
- Mercury Mountaineer (1997-2001)
- Ford Ranger (1998-2011)
- Ford Explorer (1995-2001)
