MONROE part description

Specifications

  • Upper Mounting Code :Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
  • Lower Mounting Code :Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
  • Compressed Length :11.500"
  • Extended Length :18.875"
  • Travel Length :7.375"
  • Dust Shield :Yes
  • Parts Pack(s) :(2) P1134
  • Compressed Bumper Stop :No
  • Extended Bumper Stop :Yes
  • Extended Hydraulic Lockout :No
  • Compressed Hydraulic Lockout :No
  • Dust Shield Material :Metal

Feature and Benefit

  • The Monroe Gas-Magnum truck shock absorber is designed for mid to full size, hard working pick-up trucks and vans. These units provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1" bore shocks, Monroe Gas-Magnum truck shocks work more efficiently with less effort.
  • 1-3/8" Bore: Lower operating pressure than standard 1" bore units
  • 2" Reserve Tube: More fluid for more consistent performance.
  • 5/8" Piston Rod: Heavy-duty nitrocarburized rod for long service life. On non-dust shield units only
  • All Weather Fluid: Contains special modifiers to reduce friction and ensure smooth rod reaction.
  • Full Displaced Valving: Better valving range on both the compression and extension cycles of the unit for a smooth comfortable ride.
  • Nitrogen Gas Charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration.
  • Sintered Iron Piston: Stronger than traditional metals, enhances durability for longer service life.

Product Description

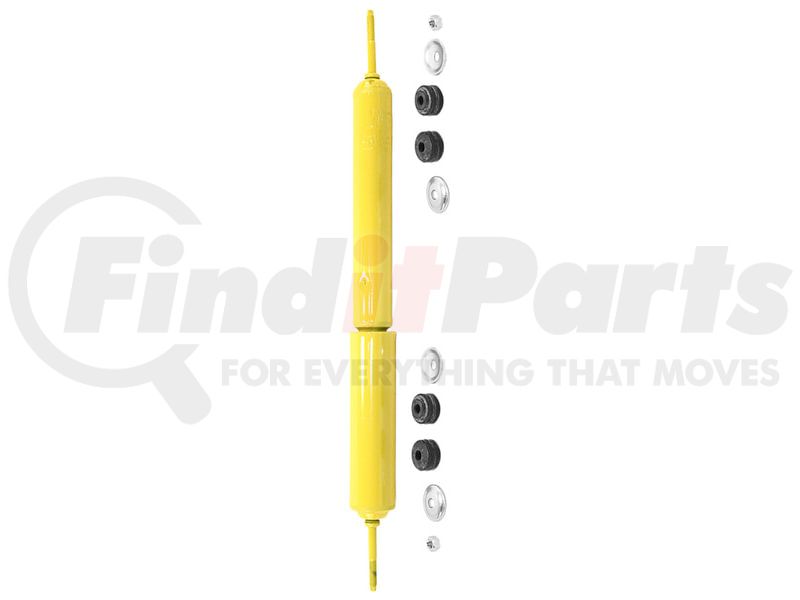

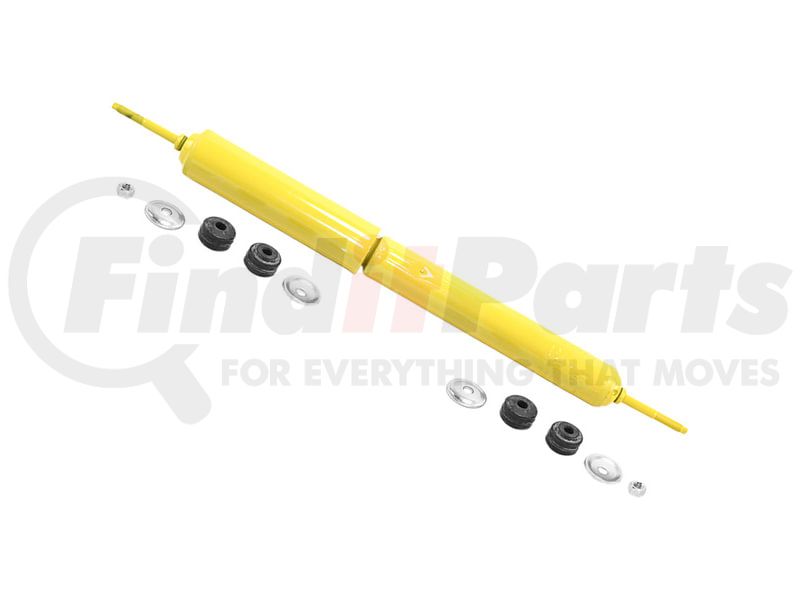

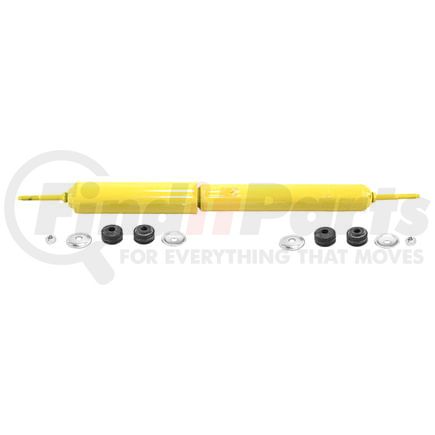

Monroe Gas-Magnum Shock Absorber

Application Summary

1991-1985 Chevrolet P30 Rear, 1991-1985 GMC P3500 Rear

Monroe Gas-Magnum Shock Absorber

Product Attributes

Upper Mounting Code Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Lower Mounting Code Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Compressed Length ---- 11.500"
Extended Length ---- 18.875"
Travel Length ---- 7.375"
Dust Shield ---- 'Yes'
Parts Pack(s) ---- (2) P1134
Compressed Bumper Stop No
Extended Bumper Stop Yes
Extended Hydraulic Lockout No
Dust Shield Material ---- Metal
Feature Point ---- ! 'Special Seal: ''Self-lubricating'' fluid seal designed to retain gas without excessive wear or friction.'
Most Popular Make / Model Chevrolet P30
Most Popular Year 1991
Min Year Covered 1985
Max Year Covered 1991
Total Part VIO 47617
Product Grade Premium
Accesorio(s) P01134
Bloqueo hidráulico extendido No
Compressed Length 11.500 IN
Cubre polvo Yes
Dust Shield Included Yes
Dust Shield Material Metal
Extended Length 18.875 in
Parts Pack P01134
Tipo de Montura Inferior Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Tipo de Montura Superior Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Tope de rebote comprimido No
Tope de rebote extendido Yes
Travel Length 7.375 in

Part Interchanges

MONROE 34792 Cross Reference

We have 3 alternatives for the 34792 by MONROE:

Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.
