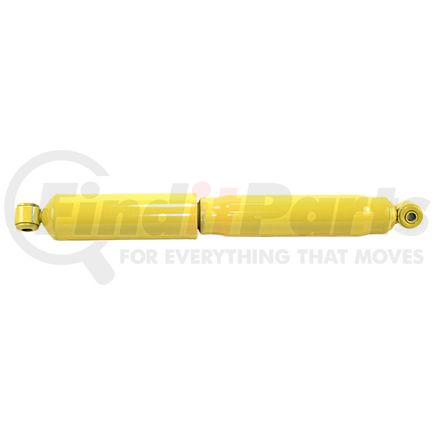

Name: Monroe 34731 Gas-Magnum Suspension Shock Absorber
SKU: 34731
Price: 49.49 USD
Availability: InStock

Gas-Magnum Suspension Shock Absorber

DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee

Lower Mount Code	LS26
Upper Mount Code	L1
Dust Shield Included	Yes
Includes Bump Stop	No
Internal Rebound Bumper	No
Hydraulic Lockout	No
Part Description	Shock Absorber
Compressed Length	12.75 IN
Dust Shield Material	Metal
Extended Length	20.5 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Parts Pack(s)	None
Travel Length	7.75 in
Upper Mount Type	Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Compressed Length	323.8 MM
Extended Length	520.7 MM
Travel Length	196.9 MM
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Center of Loop

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598049490
VMRS Code	016008003
UNSPSC	25172011
