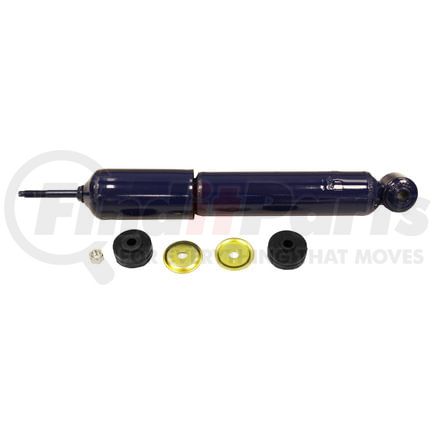

(888) 312-8812 Login SignupMONROE 32304 Monro-Matic Plus Amortisseur
Tap to view 3 more
$36.49
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MONROE 32304 Part Description
Manufacturer
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32304 Specifications
Product Attributes
| Compressed Length | 10.04 IN |
| Compressed Length | 255 MM |
| Extended Length | 14.26 in |
| Extended Length | 362.2 MM |
| Travel Length | 4.22 in |
| Travel Length | 107.2 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS39 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P1136 |
| Body Diameter | 50.8 MM |
| Body Diameter | 2 IN |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598026798 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32304 Cross References
| Brand | Part Number |
|---|---|
| 32304MM, FT1Z1761693HA | |
| AUTOZONE | MS33-30971B, TS34-31532B |
| AutoZone | MS3330971B, TS3431532B |
| Duralast | TS3330971B, MS3330971B, TS3431532B |
| Ford | 1L3Z18124AC, 1L3Z18124BA, 1L3Z18125AA, 2L3Z18124AA, 2L3Z18124BA, 2L3Z18124BB, 2L3Z18124CA, 2L3Z18124DA, 2L3Z18124EA, 2L3Z18124MA, 2L3Z18125AA, 2L3Z18125BA, 2L3Z18125BB, 2L3Z18125CA, 2L3Z18125EA, 2L3Z18125FA, 2L3Z18125GA, 2L3Z18125HA, 2L3Z18125KA, 3L3Z18124AA, 3L3Z18125AA, 3U2Z18124BB, 3U2Z18124BM, 3U2Z18124DAA, 3U2Z18124QAA, 3U2Z18124RAA, 5U2Z18V125AD, F4TZ18124D, F4TZ18124H, F4TZ18124J, F4TZ18125B, F4TZ18125G, F5TZ18124AA, F5TZ18125AA, F65Z18124EB, F65Z18124FB, F65Z18124GA, F65Z18124HB, F65Z18124KA, F65Z18124KB, F65Z18125AB, F65Z18125BB, F65Z18125CB, F65Z18125DC, F75Z18124AA, F75Z18124BA, F75Z18124CA, F75Z18124CB, F75Z18124DA, F75Z18124DB, F75Z18124FA, F75Z18124FB, F75Z18124LA, F75Z18124LAA, F75Z18124TA, F75Z18124UA, F75Z18124UB, F75Z18125AC, F75Z18125AD, F75Z18125AE, F75Z18125AF, F75Z18125AG, F75Z18125AH, F75Z18125DA, F75Z18125DB, F75Z18125DC, F75Z18125HA, F75Z18125HB, F75Z18125HC, F75Z18125JB, F75Z18125KB, F75Z18125KC, F75Z18125LB, F75Z18125LC, F75Z18125NB, F75Z18125NC, F75Z18125PB, F75Z18125PC, F75Z18125UB, F75Z18125UC, F85Z18124FA, F85Z18124LA, XL1Z18124AA, XL1Z18125AA, XL3Z18124AA, XL3Z18124CA, XL3Z18125CA, YL3Z18124AA, YL3Z18124BA, YL3Z18124CA, YL3Z18124DA, YL3Z18125AA, YL3Z18125BA, YL3Z18125CA, YL3Z18125DA, YL3Z18125EA |
| GABRIEL | 61613, 58716, 81914, G63716, 77716 |
| KYB | 344368, 565006, KG54313, KG54311, 565088, KG54320, 344267, 565007, 344367, 565004 |
| MasterPro Shocks and Struts | FD105 |
| Monroe Shocks & Struts | 59048, 59503 |
| NAPA Proformer | SH81892, SH81914, SH81912, SH81821 |
| NAPA Response | 94197 |
| Sensen | 12140191 |
| UNITY AUTOMOTIVE | 212080, 2-212080-001, 4-212080-252180-001 |
MONROE 32304 Fits Vehicles
- Ford F-150 Heritage (2004)
- Ford F-250 (1997-1999)
- Ford F-150 (1997-2003)
- Ford Expedition (1997-2002)
