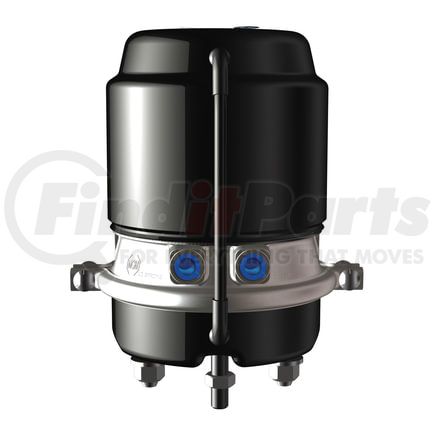

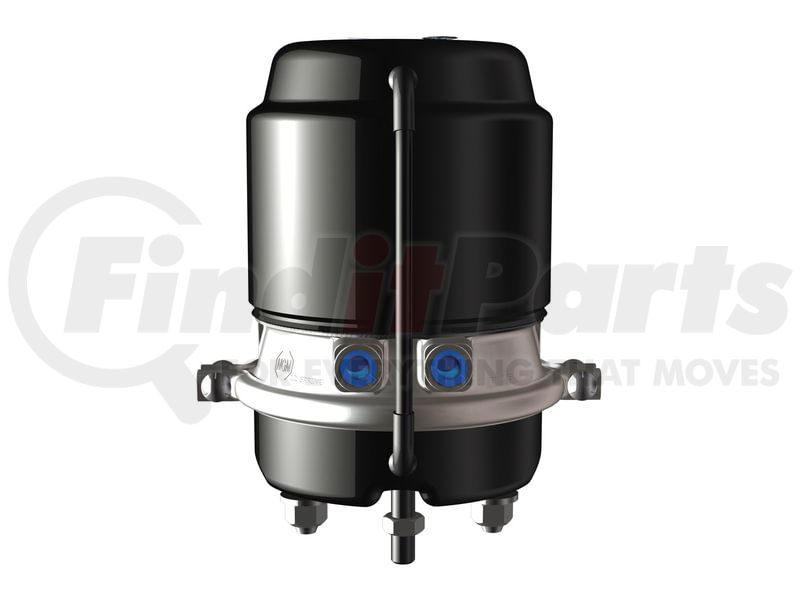

(888) 312-8812 Login SignupMGM BRAKES MJS3028EP053 Air Brake Chamber - Combination
$60549
2 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES MJS3028EP053 Part Description
Manufacturer
Product Description
Piston Brake Chamber
Features & Benefits
- Tamper Resistant
- Long Stroke
- Compact
- Integral Release Bolt
- Epoxy Coated Return Spring/Steel Head
- Non-Coil Clash Power Spring
- Available w/1,749-2,450 lb of Push-Rod Brake Force @ 1.25” Stroke/Service
- Available w/1,749-2,450 lb of Push-Rod Brake Force @ 1.25" Stroke/Service
- Center Hole Shield
Combination
MGM BRAKES MJS3028EP053 Specifications
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Piston Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.540 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 28 |
| Service Size | 30 |
| Stroke | 3.00 IN |
| UNIT | Production |
| Diaphragm | Rubber |
| Push Rod Length - with yoke | 2.75 |
| Rod Diameter | 5/8 |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
