MGM Brakes 3631054B - Air Brake Chamber - Combination
- Part Number
- 3631054B
- Manufacturer
- MGM BRAKES
- Description
-

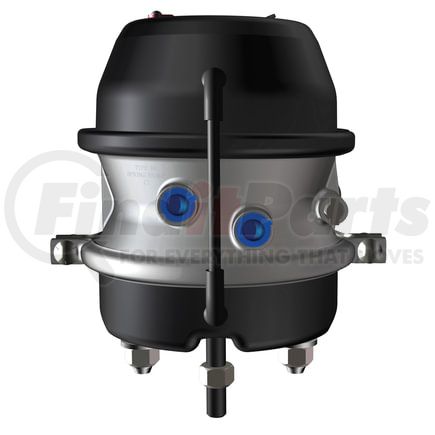

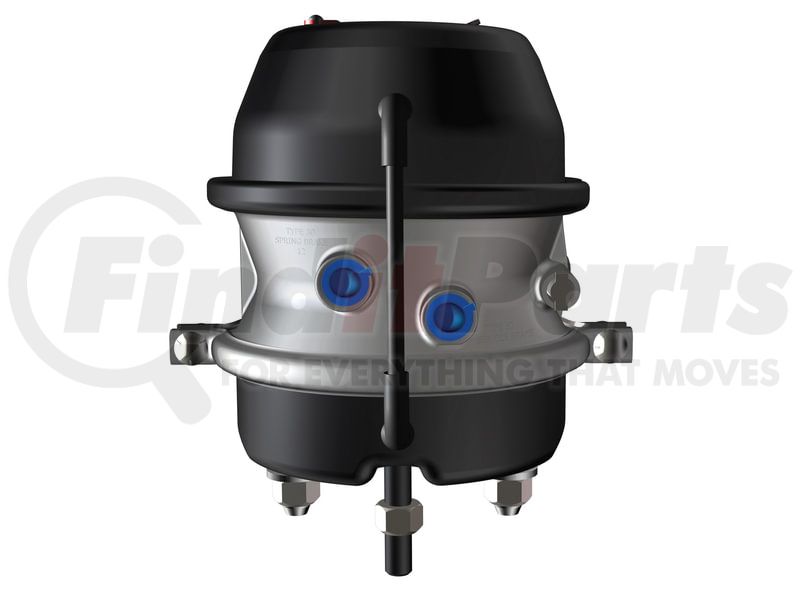

Air Brake Chamber - Combination
details
$13,70940
Package Price for 60 Units
@ $228.49 per unit
2 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Dump Truck/Trailer
Features and Benefits
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Externally Stored Release Bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- 360 Aluminum Center Case
- Weatherseal Plug
- Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 After Market Models)
- Stroke Alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- External Breather Tube
- Heavy-Duty Power Spring 160 lb (72.6 kg) Additional Parking Brake Force @ 1.25 inches (31.8 mm) of Stroke
- Center Hole Diaphragm (U.S. Patent No. 5,507,217)
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Technical Specifications
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) Combination | 19.9 lb (9.0 kg) |
| Weight lb (kg) Single | 11.5 lb (5.2 kg) |
| A | 9.04" (229.6 mm) |
| B | 6.66" (169.2 mm) |
| C | 8.31" (211.1 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| G | 5/8" - 18 UNF (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| X - Min. (aftermarket unit only) | 8.00" ( 203.2 mm) |
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- External Release bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm (Neoprene)
- Heavy-Duty Power Spring
- Center Hole Diaphragm
- Composite Guide
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Rubber IN |
| Heavy Duty | Heavy Duty |
| Mounting Bolt Length | 1.540 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Stroke | 2.50 IN |
| Welded Yoke | Threaded Yoke |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
