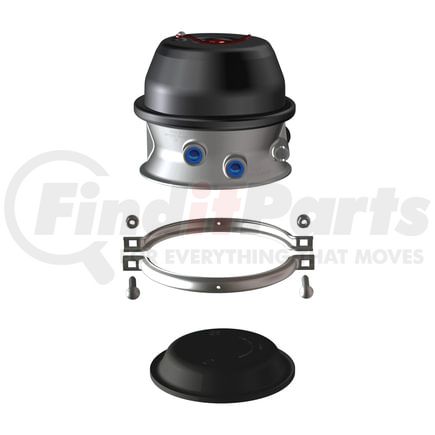

MGM Brakes 3630008 - Air Brake Spring Brake - 3630 Series, Piggyback Plus Kit, Model TR3030HD
- Part Number
- 3630008
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Spring Brake - 3630 Series, Piggyback Plus Kit, Model TR3030HD
details
$14399
2 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
On-Highway
Features and Benefits
- Tamper Resistant Design
- Externally Stored Release Bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm
- Heavy-Duty Nylon Reinforced Neoprene Diaphragm (Optional)
- Heavy-Duty Power Spring 160 lb (72.6 kg) Additional Parking Brake Force @ 1.25 inches (31.8 mm) of Stroke
- Center Hole Diaphragm (U.S. Patent No. 5,507,217)
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Technical Specifications
| Weight lb (kg) Combination | 19.9 lb (9.0 kg) |
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) Single | 11.5 lb (5.2 kg) |
| B | 6.66" (169.2 mm) |
| C | 8.31" (211.1 mm) |
| D | 8.21" (208.5 mm) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
Product Description
Piggyback Plus Kit
Features & Benefits
- Tamper Resistant
- External Release bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm (Neoprene)
- Heavy-Duty Power Spring
- Center Hole Diaphragm
- Composite Guide
Product Attributes
| Chamber Type | Piggyback Plus Kit |
| Diaphragm Diameter | Rubber IN |
| Heavy Duty | Heavy Duty |
| Mounting Bolt Length | N/A IN |
| Mounting Bolt Thread | N/A |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Stroke | 2.50 IN |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004001 |
MGM BRAKES 3630008 Cross Reference
We have 1 alternatives for the 3630008 by MGM BRAKES:
