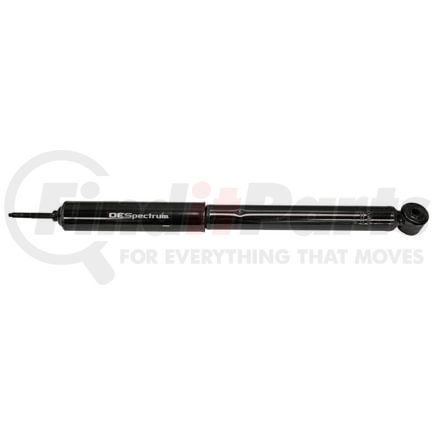

(888) 312-8812 Login SignupMONROE 5658 OESpectrum Suspension Shock Absorber
Tap to view 3 more
MSRP: $118.06
$5949
Save $58.57
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
MONROE 5658 Part Description
Manufacturer
Product Description
OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5658 Specifications
Product Attributes
| Lower Mount Code | LS28 |
| Upper Mount Code | S4 |
| Dust Shield Included | No |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 17.55 IN |
| Extended Length | 22.86 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | P01136 |
| Travel Length | 5.31 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 445.8 MM |
| Extended Length | 580.6 MM |
| Travel Length | 134.9 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS28 |
| Upper Mount Code | S4 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598115652 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5658 Cross References
| Brand | Part Number |
|---|---|
| 5658ST, GB5Z17683BCPTM | |
| Datsun/Nissan | E43021FC0C, E43021FC1C, E43031FC0C, E43031FC1C, E4C021FC0C, E4C021FC1C, E4C031FC0C, E4C031FC1C, E62101FC0C, E6B101FC0C |
| Duralast | TS3341102B |
| GABRIEL | 70041, G51976 |
| KYB | 348074 |
| KYB AMERICA LLC. | 348074 |
| MasterPro Shocks and Struts | NS118 |
| Monroe Shocks & Struts | 210080 |
| NAPA Shocks | 5658, NS5658 |
| Nissan | E62101FC0C, E6B101FC0C |
| OEM | E62101FC0C, E6B101FC0C |
| UNITY AUTOMOTIVE | 255070, 2-255070-001, 4-11353-255070-001 |
MONROE 5658 Fits Vehicles
- Nissan Cube (2009-2014)
MONROE 5658 Customer Reviews
No reviews yet
Be the first to review this product!
MONROE 5658 Questions & Answers
No questions yet
Be the first to ask a question about this product!
