MONROE 5633 Part Description
Manufacturer
Product Description

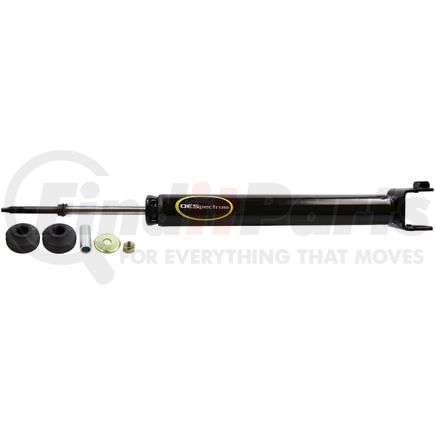

OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5633 Specifications
Product Attributes
| Lower Mount Code | CLEV |
| Upper Mount Code | S1 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 16.09 IN |
| Extended Length | 20.13 in |
| Gas Charged | Yes |
| Lower Mount Type | Clevis |
| Parts Pack(s) | P01488 |
| Travel Length | 4.05 in |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Compressed Length | 408.7 MM |
| Extended Length | 511.3 MM |
| Travel Length | 102.9 MM |
| Lower Mount Type | Clevis Bracket Mount |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Lower Mount Code | CLEV |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Upper Mount Code | S1 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598070548 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5633 Cross References
| Brand | Part Number |
|---|---|
| 5633ST, GB5Z17682EAPTM | |
| DEA | 4713601 |
| GABRIEL | G51927 |
| INFINITI | 56210EG00J, 56210EG00K, 56210EG025, E6210EG02A, E6210EG01E |
| Infiniti | 56110EG025, 56111EG025, E6110EG00D, E6110EG01A, E6111EG00D, E6111EG01A |
| KYB | 349053 |
| KYB AMERICA LLC. | 349053 |
| NAPA Shocks | 5633 |
MONROE 5633 Fits Vehicles
- INFINITI M35 (2006-2007)
- INFINITI M45 (2006-2007)
