(888) 312-8812 Login SignupMONROE 553003 Magnum Severe Service Suspension Strut

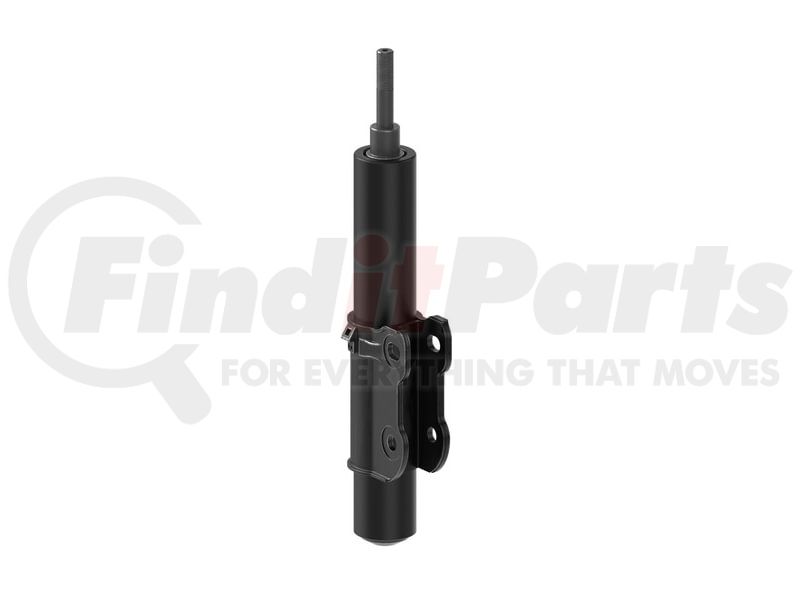

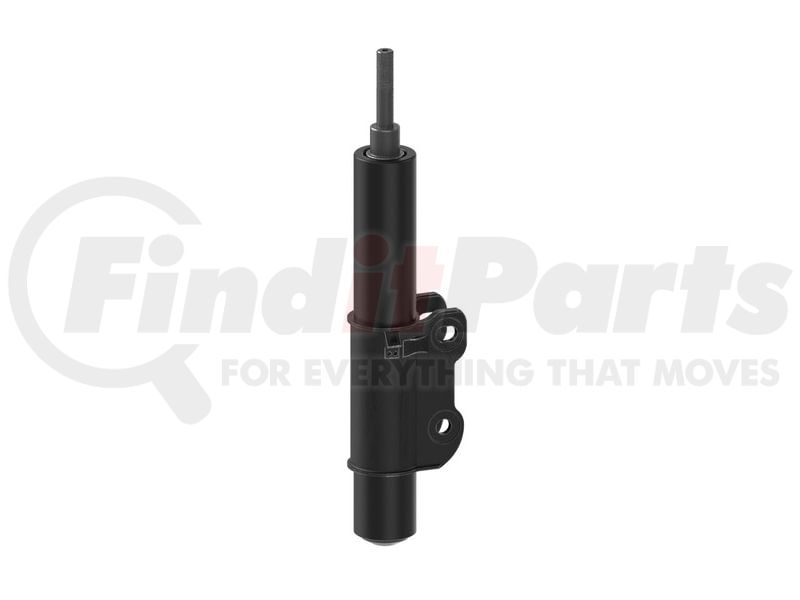

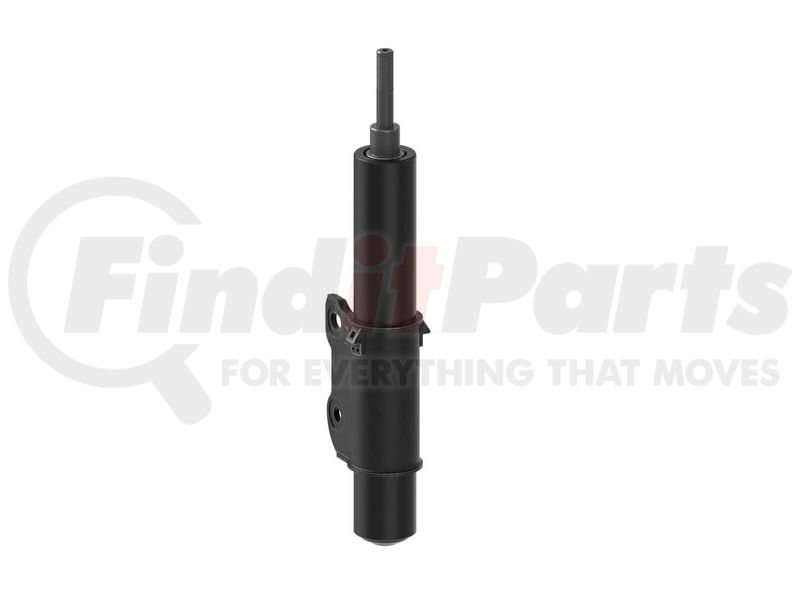

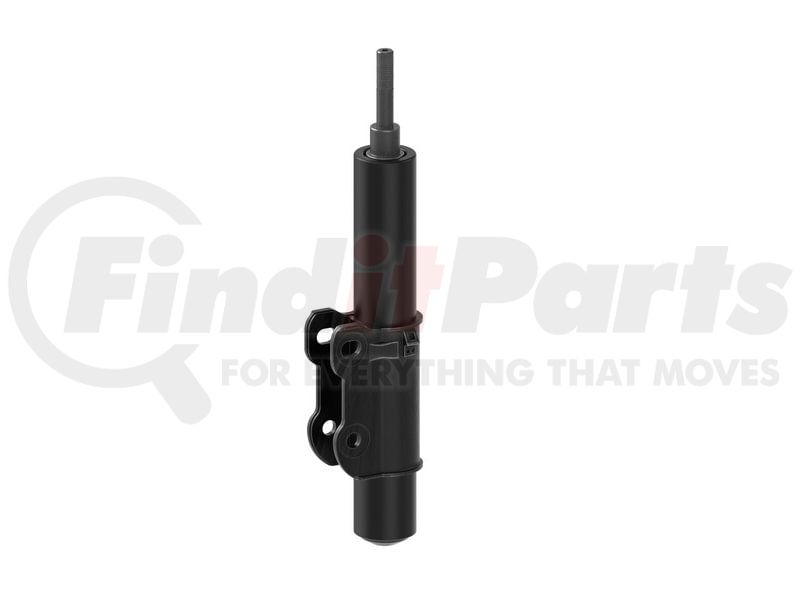

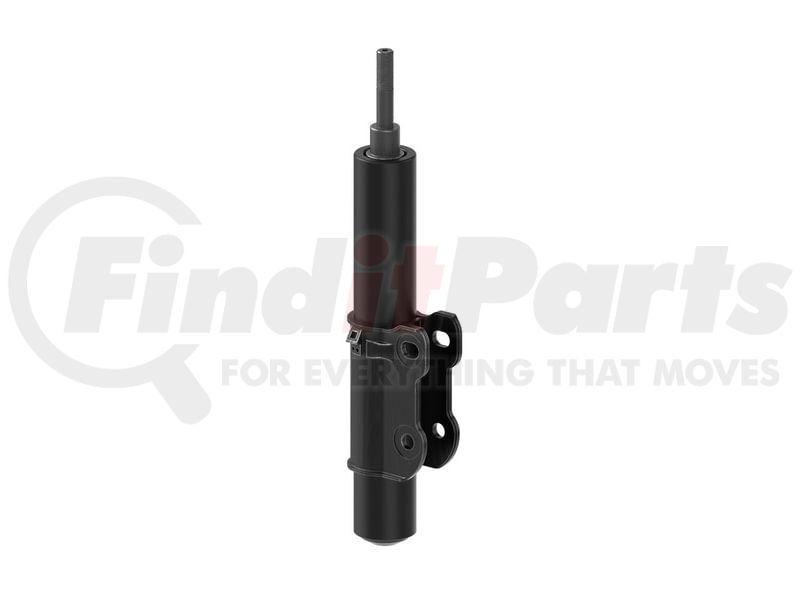

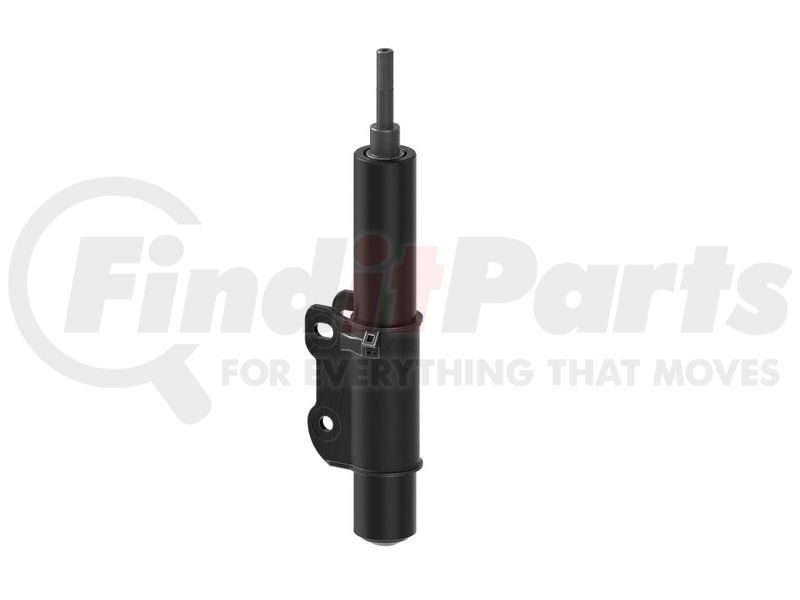

Tap to view 5 more
MSRP: $269.47
$16499
Save $104.48
Limited availability at this price!
In Stock
Get it by Friday, Jan 30
MONROE 553003 Part Description
Manufacturer
Product Description
Magnum Severe Service Suspension Strut
Features & Benefits
- ENGINEERED FOR EMERGENCY AND FLEET VEHICLES -- For hardworking first responder, municipal, fleet and jobsite vehicles and features 10-stage valving that adjusts to road extremes to help handle frequent stops, heavy loads and high miles
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Heavy-duty chrome rod and PTFE-banded piston enhance durability for longer service life while PTFE-coated bearing reduces friction between rod and guide
- CONTROL AND DURABILITY -- PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE 553003 Specifications
Product Attributes
| Compressed Length | 10.83 IN |
| Extended Length | 17.91 in |
| Travel Length | 7.08 in |
| Body Length | 10.63 IN |
| Body Type | B1 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Parts Pack(s) | None |
| Lower Mount Type | Special Mount |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Lower Mount Code | SPEC |
| Upper Mount Code | S4 |
| Hydraulic Lockout | No |
| Compressed Length | 275.1 MM |
| Extended Length | 454.9 MM |
| Travel Length | 179.8 MM |
| Body Length | 270 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | AR |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598064158 |
| VMRS Code | 016008003 |
| UNSPSC | 25172007 |
MONROE 553003 Cross References
| Brand | Part Number |
|---|---|
| 553003MM, MAE553003 | |
| AL-KO Xtreme | 813105 |
| Autopart International | 2701503749 |
| BULLDOG HD SHOCKS | HD4214-3828 |
| Bilstein | 22184238, 22184245 |
| Bulldog HD | HD42143828 , HD42143828 |
| Dodge | 68013696AA, 68013697AA, 68013698AA, 68013825AA, 68013826AA, 68013827AA, 68017247AA, 68039932AA |
| Freightliner | 9063200633, 9063201033, 9063207030, 9063207430, 9063207630, 9063208030 |
| GABRIEL | G57802 |
| Gold Shock Absorber | 5001324 |
| KYB | 331702 |
| KYB AMERICA LLC. | 331702 |
| Mercedes-Benz | 9063200633, 9063200731, 9063200831, 9063200931, 9063200933, 9063201033, 9063201133, 9063201231, 9063201333, 9063201431, 9063201433, 9063206230, 9063206330, 9063207030, 9063207430, 9063207630, 9063208030, 9063261300, 9063261400, 9063261800, 9063231100, 9063207230 |
| NAPA Shocks | 553003 |
| OEM | 9063201333, 9063200933, 9063207630, 9063207030, 9063200633, 9063207430, 9063201033, 9063208030 |
| PRT HD | 475254, 477105 |
| Sachs | 314422, 319655, 314421, 319684 |
| VAICO | V301448 |
MONROE 553003 Fits Vehicles
- Freightliner Sprinter 2500 (2010-2018)
- Freightliner Sprinter 3500 (2010-2018)
- Monaco Coach Covina (2009)
- Winnebago Era (2015-2018)
- Winnebago Navion (2015-2018)
- Winnebago View (2007-2015)
- Mercedes-Benz Sprinter 3500 (2010-2018)
- Mercedes-Benz Sprinter 2500 (2010-2018)
- Mercedes-Benz Sprinter (2004-2017)
- Dodge Sprinter 3500 (2007-2009)
- Dodge Sprinter 2500 (2007-2009)
