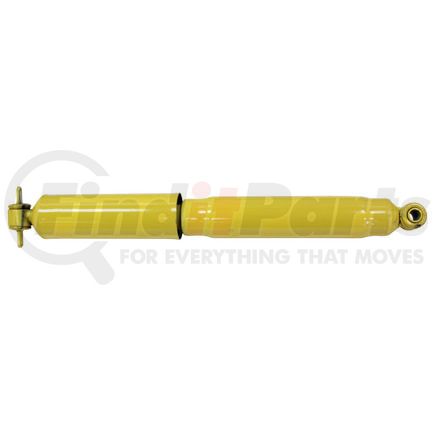

(888) 312-8812 Login SignupMONROE 34531 Gas-Magnum Amortiguador
Tap to view 3 more
MSRP: $98.01
$5349
Save $44.52
Limited availability at this price!
In Stock
Get it by Monday, Jun 15
MONROE 34531 Part Description
Manufacturer
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 34531 Specifications
Product Attributes
| Compressed Length | 13.69 IN |
| Compressed Length | 347.7 MM |
| Extended Length | 21.57 in |
| Extended Length | 547.9 MM |
| Travel Length | 7.88 in |
| Travel Length | 200.2 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1,9/16" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS43 |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center) |
| Upper Mount Code | XP5 |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Color | Yellow |
| Cylinder Color | Yellow |
| Color | Yellow |
| Cylinder Finish | Painted |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598112200 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 34531 Cross References
| Brand | Part Number |
|---|---|
| 34531MM, FT4Z5806024AB | |
| ACDelco | 5601109 |
| AL-KO Xtreme | 813100 |
| Autopart International | 2701248173 |
| Chevrolet | 19257310, 20956377, 20956378, 20956379, 20956380, 23296352, 23296353, 25751136, 25751137, 25751138, 25856173, 25856175, 84020664, 84020665, 84020666, 84020667, 84020668, 84020673, 84303233, 84303234, 88982652, 84301666 |
| FCS | 342523, 342525 |
| GABRIEL | 81789, 58638 |
| GMC | 19257310, 20956377, 20956378, 20956379, 20956380, 23296352, 23296353, 25751136, 25751137, 25751138, 25856173, 25856175, 84020664, 84020665, 84020666, 84020667, 84020668, 84020673, 84303233, 84303234, 88982652, 84301666 |
| General Motors | 20956378, 25751138, 84020666, 84301666 |
| KYB | 344483, 3450017, 565033, 349009, 554348, 565034, 565061, 344262, 344263, 344273, KG5188 |
| MasterPro Shocks and Struts | GM120 |
| NAPA Proformer | SH81789 |
| NAPA Shocks | 76531 |
| OEM | 25751138, 20956378, 84020666 |
| OSC | S344483 |
| PM Auto | PM6001134 |
| PRT | 170196 |
| Sensen | 12140213 |
| Unity | 251210 |
MONROE 34531 Fits Vehicles
- GMC Savana 4500 (2024)
- Chevrolet Express Cargo (2009-2014)
- Chevrolet Express Pasajeros (2009-2015)
- GMC Savana 3500 (2003-2025)
- Chevrolet Express 3500 (2003-2025)
