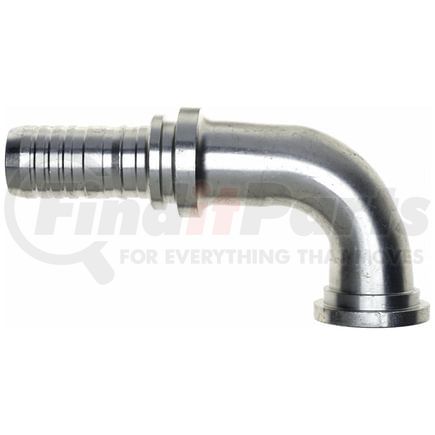

Gates G22316-2424 - Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral Plus)
$15249
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Plus Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 24GSP-24FL90-148 |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Maximum Working Pressure | 3000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 2.38 IN |
| Drop Length | 5.83 IN |
| Cut-Off Length | 4.01 IN |
| Length | 6.89 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 60.5 MM |
| Drop Length | 148.1 MM |
| Cut-Off Length | 101.9 MM |
| Length | 175 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075392897 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
