GC3636Q by HALDEX
SHIPS TODAY

GC3636Q by HALDEX

Part Number
GC3636Q
Manufacturer
HALDEX
Description

GoldSeal Combination Spring Brake - Standard Stroke, 36/36

details

$14848

MSRP: $244.87

Save: $96.39

In stock

limited availability at this price!

Free shipping on orders over $100 details
Orders placed before 2pm EST will ship same day

HALDEX part description

HALDEX GOLDSEAL SPRING BRAKE

Combination with 3/4" Pushrod Thread - Size 3636
  • Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
  • Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life
  • World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F
  • Rugged Service Housing; 9 gauge steel, powder coated
  • Orange Alert® Stroke Indicator
  • Self-piloting Dust Shield
  • Sizes to fit all drum brake applications
Notes:

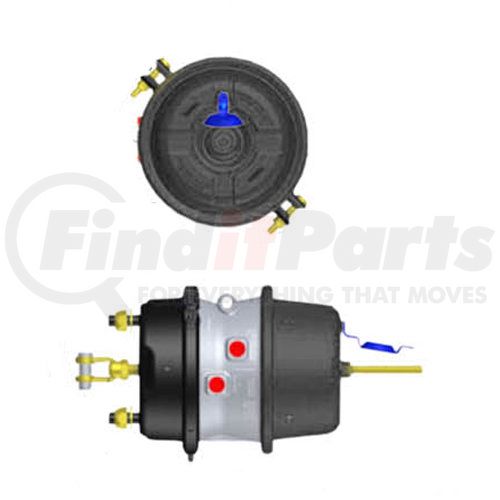

  1. A = Length from mounting bracket to end of Spring Housing
  2. B = Length of Piggyback
  3. C = Dimension at rolled Spring Housing flange
  4. D = Dimension at Service Clampband
  5. E = Stud Spacing 4.75 in. (120.7mm)
  6. J = Pushrod Length from face of Service Housing
  7. K = Distance to Clevis Pin centerline from face of Service Housing
  8. S1 = Service Clampband position (0°)
  9. T = Air Port position (90°)
  10. Stud Type: 5/8-11 UNC Grade 5
    Stud Length: 1.50 in. (38.1mm)
    Pushrod Thread: 5/8-18 UNF
    Air Port Threads: 3/8-18 NPTF
    Maximum Air Pressure: 150 psi
  11. Replaces 3636003

Technical Specifications:

Stroke Type: Standard
Available Stroke: 3.00", 76mm
A (refer to image): 10.7", 272mm
B (refer to image): 8.0", 203mm
C (refer to image): 9.1", 231mm
D (refer to image): 11.3", 286mm
J (refer to image): 9.00"
Weight: 26.2 lbs., 11.9 kg.
Quantity: 1
Cross References

Product Description

BRAKE CHAMBER-GOLD SEAL-3636GC

Application Summary

Combination with 3/4" Pushrod Thread - Size 3636

Product Attributes

  • 3636003
  • 9 gauge steel
  • Y
  • 90 DD
  • 3/8-18 NPTF
  • 3 IN
  • 76 MM
  • 9.1 IN
  • 231 MM
  • 11.3 IN
  • 286 MM
  • 10.7 IN
  • 272 MM
  • 8 IN
  • 203 MM
  • 150 PSI
  • 9 IN
  • 5/8-18 UNF
  • 1
  • (0) DD
  • 1.5 IN
  • 38.1 MM
  • 4.75 IN
  • 120.7 MM
  • 5/8-11 UNC
  • 5
  • Y
  • Cancer & reproductive

Additional Information

Remanufactured Part N
Emission Code 1
Country of Origin (Primary) MX
Harmonized Tariff Code (HTS) 8716905060
Life Cycle Status Code 2
Life Cycle Status Description Available to order- part is released to customers for ordering
Harmonized Tariff Code (Schedule B) 8412310080
National Popularity Code D
Warranty Time 12
Warranty Time UOM MO
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Special UOM TX

Part Interchanges

  • 1393636051
  • 3437651

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
