GROTE part description

Product Description

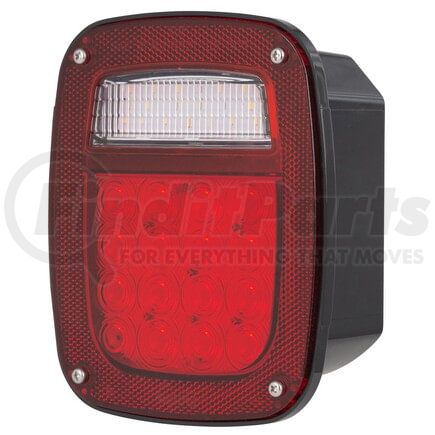

Hi Count(R) LED Stop Tail Turn Lights, RH w/out Side Marker

Features & Benefits

  • Directly replaces Jeep(R) Wrangler(R) lamps through 2006
  • All functions utilize LED technology
  • 16 stop/tail/turn diodes, 22 backup diodes and 4 license diodes
  • Circuit-board protection is compatible with existing flasher technology
  • Includes reflex reflector
  • 3 stud mounting design incorporates ground function
  • Potting protects against vibration and corrosion
  • Gasket between lens and housing protects against moisture intrusion
  • Mounting hardware and instructions for easy installation/retrofit

HI COUNT LED - 12V

Product Attributes

Amperage .12A-.34A
Color Red,White
Connection Type Blunt Cut
Functions A,I,R(2),S,T
Housing Color Black
LED Y
Lens Color Red
Material Acrylic Lens,Polycarbonate Housing
Mounting Type Stud
Product Line - Trademark Hi Count(R)
Regulations FMVSS 108
Shape Square
Voltage 12V

Additional Information

Country of Origin (Primary) TW
Harmonized Tariff Code (Schedule B) 8512200000
UPC 00089373135397
VMRS Code 034002013

Part Interchanges

GROTE G5082 Cross Reference

We have 4 alternatives for the G5082 by GROTE:
