GROTE part description

Product Description

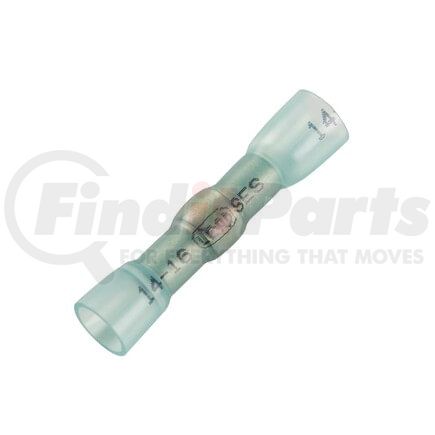

Crimp & Solder Butt, 16

Features & Benefits

  • 45° barrel allows installer to see wire is fully inserted and wire is crimped to terminal
  • Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
  • Completely insulates and protects electrical connections
  • Lead-free solder has greater surface tension
  • New solder sleeves are Tin & Bismuth alloy
  • Protects against added vibration in rugged environments
  • Protects splices from water, corrosion, salt and moisture, provides strain relief
  • RoHS compliant
  • better for the environment
  • Seamless butt connectors & brazed-seam rings & spades prevent unwanted opening of the connector barrel.
  • Solder sleeves are pre-fluxed to clean metals & provide a quality solder termination
  • Solder stays in place which provides greater tensile strength than other solder sleeves
  • UL listed

Product Attributes

Color Blue
Connection Type Butt
Functions Crimp,Solder & Seal
Gauge 16-14 GA
Material Polyolefin
Operating temperature -55 degree C (-67 degree F) to 110 degree C (230 degree F)
Prop 65 Label Required N
Rohs Yes
Shrink Ratio 3:1
Standards cUL
Strength 2200 PSI

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8536900000
UPC 00621935050368
VMRS Code 053007002

GROTE 83-2930 Cross Reference

We have 3 alternatives for the 83-2930 by GROTE:
