GROTE part description

Product Description

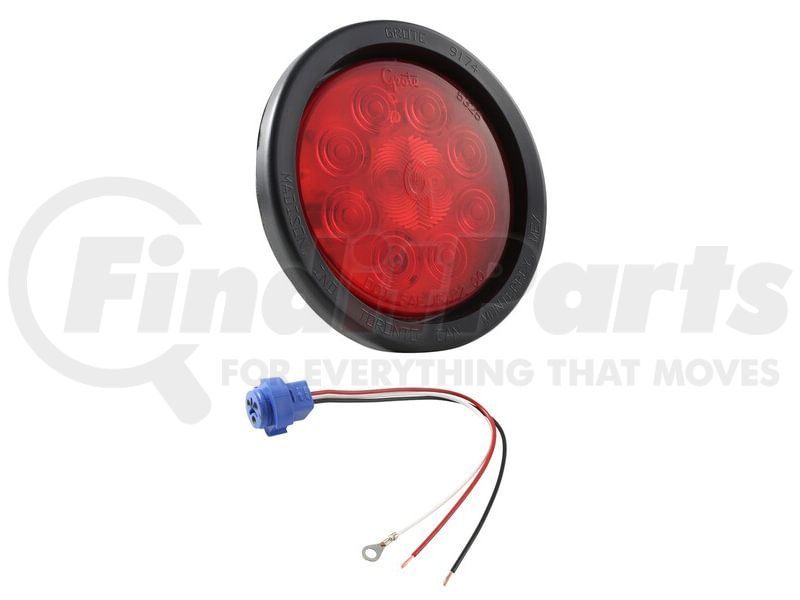

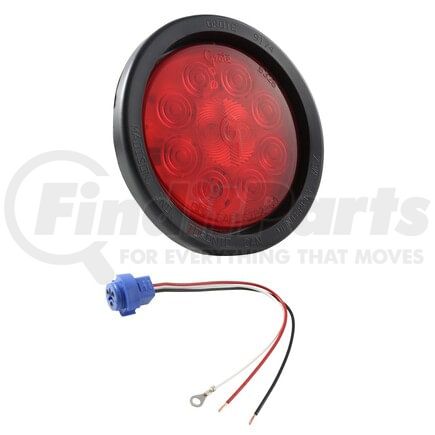

STT, 4" (53252+91740+67002)SUPERNOVALED

Features & Benefits

  • Encapsulant potting for total circuit board protection
  • Uses same UBS pigtail as male pin incandescent
  • Advanced Pin Connection System uses tin-plated, solid-brass pin terminals
  • Lens design spreads light for maximum dispersion
  • Hermetic lens-to-housing seal

STT LAMP KIT - 12V

Product Attributes

Amperage .03A-.24A
Color Red
Connection Type Male Pin

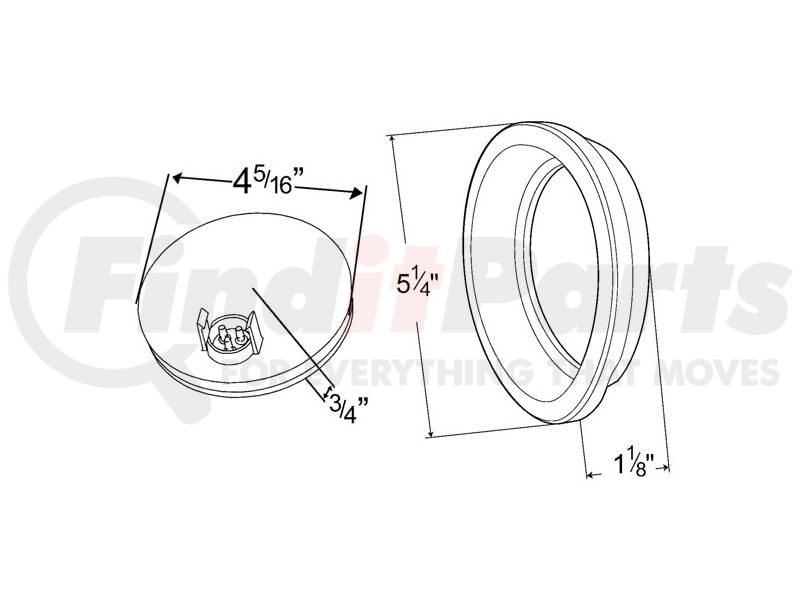

Diameter 4"
Functions I,P2,S,T
Housing Color Gray
LED Y
Lens Color Red
Material Acrylic Lens,PC/ABS Housing,PVC Grommet
Mounting Type Grommet
Product Line - Trademark SuperNova(R)
Regulations FMVSS 108
Shape Round
Size 4"
Voltage 12V

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512200000
UPC 00089373106656
VMRS Code 034002059
