(888) 312-8812 Login SignupGATES TR22363 Green Stripe Truck & Bus Series V-Belt
Tap to view 1 more
$2149
Limited availability at this price!
In Stock
Get it by Monday, Dec 29

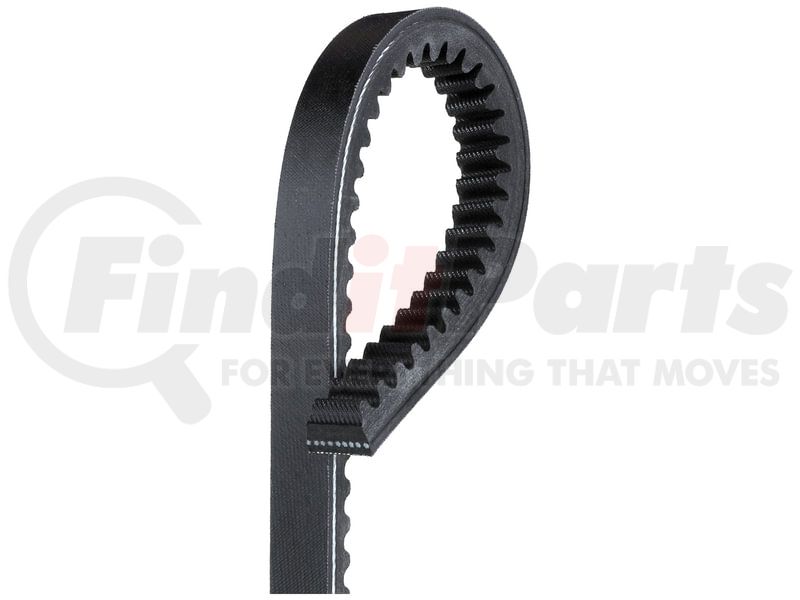

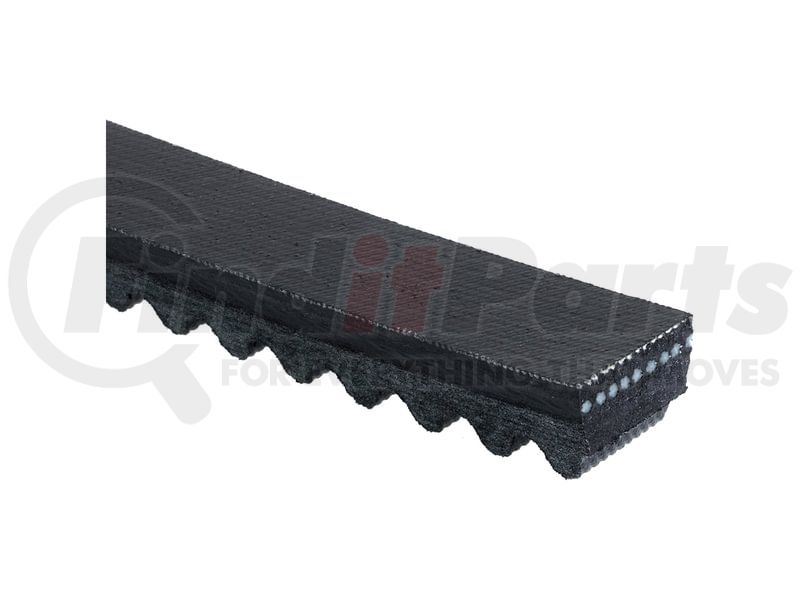

GATES TR22363 Part Description
Manufacturer
Product Description
Green Stripe Truck & Bus Series V-Belt
Application Summary
Allis-Chalmers, 60 All-Crop, Allis-Chalmers 4-Cyl. 125, Fan & Gen.
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
GATES TR22363 Specifications
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | RA |
| Angle | 40 |
| Strand Quantity | 1 |
| Top Width | .594 in |
| Outside Circumference | 36.87 in |
| Effective Length | 36.29 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 15 mm |
| Outside Circumference | 937 mm |
| Effective Length | 922 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00072053276770 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES TR22363 Part Interchanges
| Brand | Part Number |
|---|---|
| Midland | 33X18 |
| Sierra | 18-22365 |
| White | 027002030, 027141126, 1704125, 1704633, 190003, 1930G17, 700781, 700781A, 700794, 700796, 730378A, 77862J, 77862M |
| ACDelco | T22363 |
| Dayco | 22365, 22365DR, 30296, 390M, 420822, 423384, 424186, 47304, 51369, 51733, 51734, 52175, 54068, 54223, 54238, 56542, 57427, 69, 818M |
| BF Goodrich | 22370 |
| Kohler | 265021, 266687 |
| Carquest | TR22363 |
| Allis Chalmers | 209656, 210529, 4351577, 4368391 |
| American Motors Corp (AMC) | 647626, 647627, 741302 |
| Bando | 5350, 5355 |
| Bendix-Westinghouse | 213157 |
| British Leyland | 200203, 3H2845 |
| Continental Belt | 22365MK |
| Cummins | 105072, 124479, 129643, 132010, 178556, 178568, 3040345, S2698 |
| Epton | 21366, 22370 |
| Fiat | 362232, 845385 |
| First Products | 22-365 |
| Fleetrite | ZAH22365, ZJG22374 |
| FWD Truck | 115505H |
| Galion | D21891 |
| General Motors | 2314994, 43981, 9029260, 9034205, 9043981, 9080860 |
| Renault | 5530833 |
| Ford | C9PZ 8620 DU |
| Peugeot | 474188, 575010 |
| International Harvester (IHC) | 115505HA, 3040315R2, 304315R2, 310712R1, 376372R1, 676352R1, 676352R11, 676620R1 |
| Komatsu | 6616816141 |
| Kysor | 300117, 303315, B1764537 |
| Mitsuboshi | MF8350, RECMF8350, REMF8350, MF8355, RECMF8355, REMF8355 |
| Pacific Car & Foundry | 2800045367 |
| Saviem | 8522090 |
| Waukesha | 160103, 180003 |
| Mack | 88GB232P10, 88GB330P16, 88GB330P40, 88GB330P86 |
| Brockway | 216464 |
| Goodyear | 22370, 22374 |
| Volvo GM Heavy Truck | V1091015 |
| NAPA Belts/Hose | 25-22363 |
| Alliance Truck Parts | GT22366 |
| Autopar | FB101, FB22365 |
| Durkee-Atwood | 22-370 |
| Eaton, Yale & Towne | 2053074 |
| Globe Lifeline | 1726, 2221, 4832 |
| Gray Marine | 60473, A6104, M6204 |
| Grumman Flxible | 79380 |
| John E. Mitchell | 11617 |
| MBL Three Stars | 22365 |
| NAPA | 25-09230, 25-09300 |
| Powertest | P832 |
| Service King | 18, 6337 |
| Sheppard | 19019 |
| U.S. Government | W304731 |
| Wagner Electric | AE1618 |
| <Unknown> | 146364, 208930, 2189953, 22366, 22372, 26A702, 3H248, 3H2485, 526485, 53894, 568990, 653639, 700796A, 700796A7, 8111727, 9043891, 9184259, M6104, OM11888, Y568990, 133241 |
| Metric | 15A0925, 15A0930, 17A0915 |
GATES TR22363 Fits Vehicles
- Gardner Model 8-80 (1927)
- Elcar Model 6-70 (1927)
- Chrysler Series 52 (1928)
- Chrysler Series 60 (1926)
- Chrysler Series H-60 (1927)
- Buick Series 40 (1930)
- Buick Series 60 (1930)
- Maxwell Model 25-C (1925)
- Henry J Vagabond (1952)
- Henry J Deluxe (1951)
- Pontiac Model 6-27 (1927)
- Plymouth Model Q (1928)
- Buick Series 50 (1930)
- Henry J Corsair (1952-1953)
- Maxwell Model 25 (1922-1924)
- Pontiac Model 6-28 (1928)
- Pontiac Model 6-26 (1926)
GATES TR22363 Cross References
We have 1 alternatives for the TR22363 by GATES:
