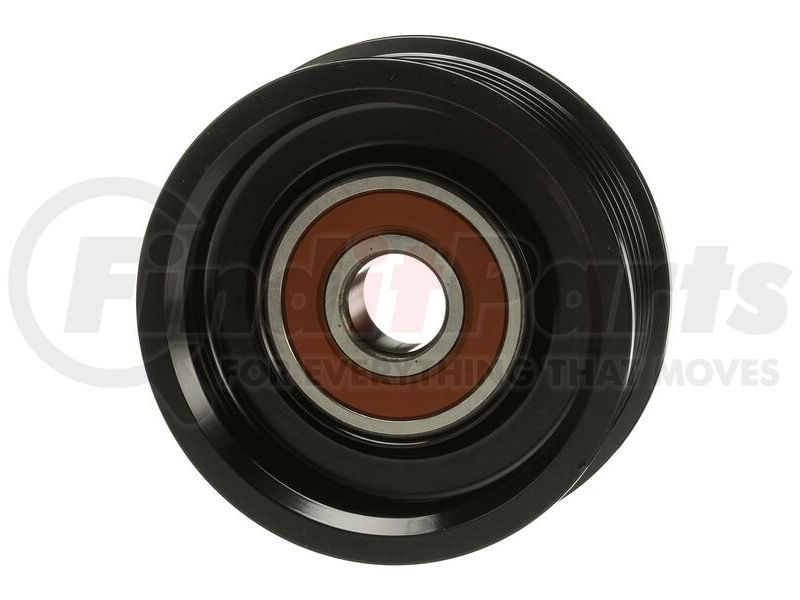

(888) 312-8812 Login SignupGATES 36223 Accessory Drive Belt Idler Pulley - DriveAlign Belt Drive Idler/Tensioner Pulley
Tap to view 2 more
$6699
Limited availability at this price!
In Stock
Get it by Friday, Feb 13
GATES 36223 Part Description
Manufacturer
Product Description
DriveAlign Belt Drive Idler/Tensioner Pulley
Application Summary
2019-10 Freightliner, Cascadia, Cummins ISX15 Diesel, Idler Pulley - A.C.
Features & Benefits
- Steel and thermoplastic construction designed to tight manufacturing tolerances for high durability and quality performance
- Built to last with a superior resistance to dirt, salt, chemicals and other under-hood contaminants
- OE-quality fit for virtually every domestic or import vehicle on the road today
- Bearings meet or exceed OE standards with application-specific speed and load requirements, to withstand high under hood temperatures
- Premium bearings eliminate bearing noise
- Mounting hardware included for some popular applications
- Reliable operation under severe conditions
GATES 36223 Specifications
Product Attributes
| Pulley Quantity | 1 |
| Groove Quantity | 6 |
| Material | Steel |
| Contact Surface | V-Ribbed Grooved |
| Pulley 1 Flanged | Yes |
| Outside Diameter | 83.5 MM |
| Bearing Bore Inside Diameter | 17 MM |
| Width | 29.5 MM |
| Contents | Pulley, Dust Shield |
| Pulley 1 Groove Quantity | 6 |
| Pulley 1 Outside Diameter (mm) | 83.5 |
| Pulley 1 Width (mm) | 29.5 |
Additional Information
| Country of Origin (Primary) | CA |
| Harmonized Tariff Code (Schedule B) | 8483509040 |
| Stock Status | S |
| UPC | 00072053393309 |
| VMRS Code | 045008069 |
| UNSPSC | 26101721 |
GATES 36223 Cross References
GATES 36223 Fits Vehicles
- Western Star 49X (2025)
- Mack Anthem (2019-2025)
- Peterbilt 357 (2006-2007)
- Volvo VNL 860 (2017-2020)
- International LT (2020, 2022-2023)
- Volvo VNL 630 (2015-2016)
- Volvo VNL 430 (2015-2016)
- Volvo VNL 760 (2017-2020)
- International 5900i (2004-2008, 2014-2016)
- Freightliner 122SD (2014-2021)
- Kenworth W990 (2020-2023)
- Volvo VNL 740 (2017-2020)
- Peterbilt 520 (2019-2020)
- International LT625 (2018-2023)
- Volvo VNL 400 (2017-2020)
- International HX520 (2018-2022)
- Volvo VNL 300 (2016-2020)
- Volvo VNL 670 (2015-2016)
- International HX620 (2017-2022)
- Western Star 6900XD (2015-2016)
- Volvo VT (2006-2010)
- International 9900ix (2004-2007, 2009)
- International 9900i (2003-2007, 2009-2010, 2014-2018)
- Freightliner 114SD (2016-2017, 2019-2025)
- Volvo VNM (2007)
- Volvo VNL (2003-2008, 2010-2025)
- Western Star 4900FA (2011-2018)
- Kenworth T680 (2013-2023)
- Western Star 4900EX (2011-2021)
- Western Star 4900SA (2010-2018)
- Mack CL (2004-2007)
- Peterbilt 587 (2011-2017)
- Kenworth T700 (2013-2015)
- Peterbilt 387 (2004-2011)
- Peterbilt 389 (2008-2023)
- Kenworth T880 (2014-2023)
- Peterbilt 579 (2013-2023)
- Kenworth T2000 (2004-2008)
- Peterbilt 367 (2008-2016, 2018-2021)
- Peterbilt 388 (2008-2015)
- Peterbilt 386 (2007-2015)
- Mack CXU (2014-2018)
- Peterbilt 378 (2004-2007)
- Kenworth T660 (2008-2018)
- Kenworth T600A (2004-2007)
- Peterbilt 567 (2014-2023)
- Peterbilt 384 (2012-2015)
- Peterbilt 365 (2011-2016, 2018)
- Peterbilt 320 (2012-2017)
- Autocar LLC. Xpeditor (2014-2019)
- Kenworth T800 (2004-2022)
- Peterbilt 379 (2003-2007)
- Kenworth W900 (2003-2023)
- Freightliner Coronado (2011-2016)
- Freightliner Cascadia (2009-2019, 2021-2025)
- International 5600i (2005-2007, 2009, 2011)
- International LoneStar (2009-2011, 2014-2017, 2019-2021)
- International ProStar (2008-2017, 2019)
- International 9400i SBA (2003-2007)
- International 5500i (2004-2009)
- International 9200i SBA (2003-2008)
