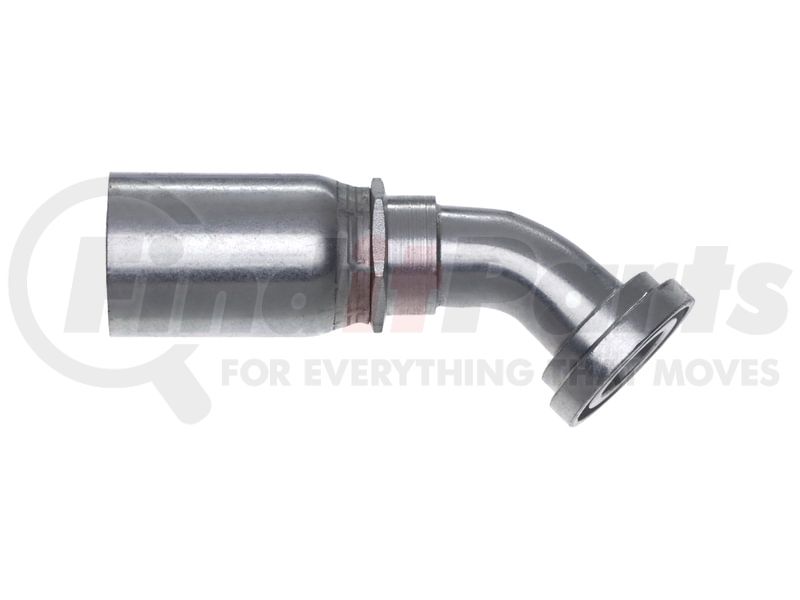

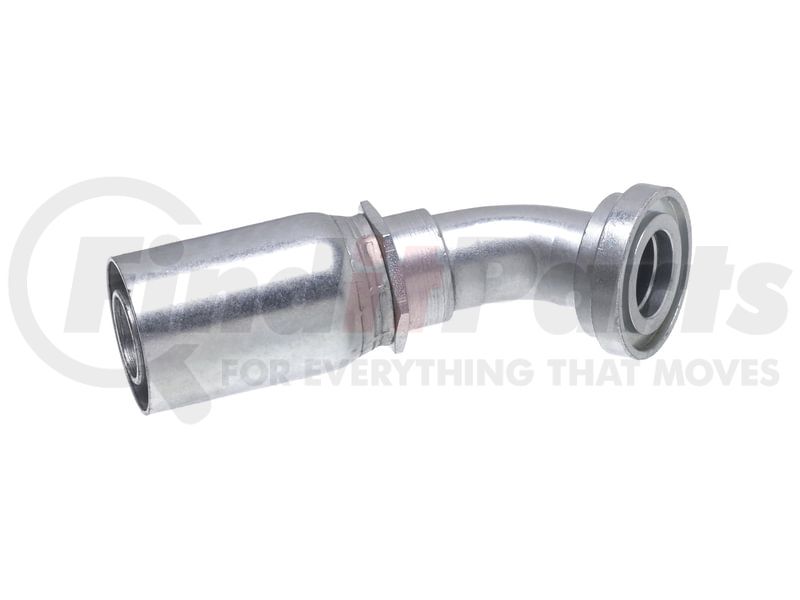

(888) 312-8812 Login SignupGATES G43306-1616 Code 61 O-Ring Flange - 45 Bent Tube (GL)
Tap to view 2 more
$9749
Limited availability at this price!
In Stock
Get it by Friday, Jul 31
GATES G43306-1616 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 45 Bent Tube (GL)
Features & Benefits
- Designed for larger-diameter hoses - up to 4 in. I.D.
- Designed for larger-diameter hoses – up to 4 in. I.D.
- Short body length provides the necessary grip for low pressure hose requirements
- Bubble pattern crimp design ensures optimal sealing to helical wire hoses on return vacuum applications
GATES G43306-1616 Specifications
Product Attributes

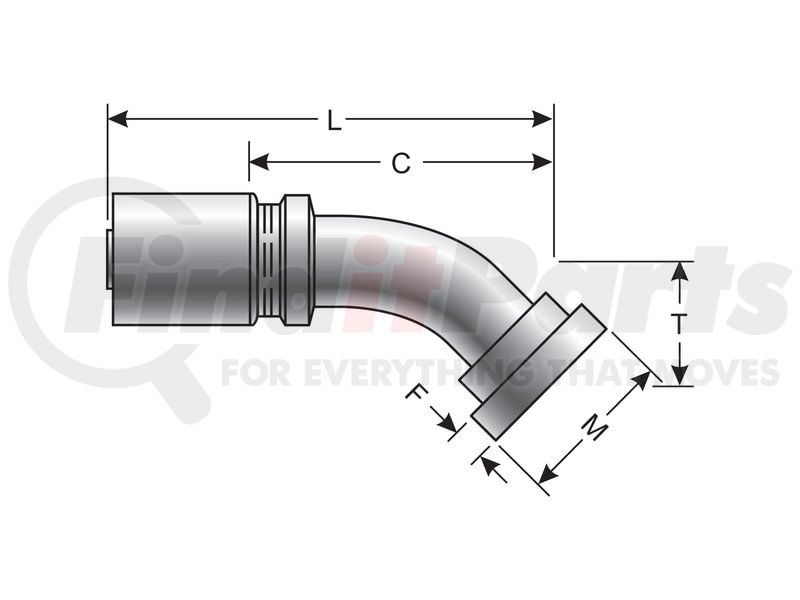

| Coupling Description | GL Code 61 O-Ring Flange - 45 Bent Tube |
| Industrial Description | 16GL-16FL45S |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | Gates GMV, MegaTech G5TB, MegaTech 500 |
| Flange Thickness | .32 in |
| Flange Diameter | 1.75 IN |
| Drop Length | 1.1 IN |
| Cut-Off Length | 2.91 IN |
| Length | 5.11 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 44.5 MM |
| Drop Length | 27.9 MM |
| Cut-Off Length | 73.9 MM |
| Length | 129.8 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00072053465129 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G43306-1616 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04033378 |
| NAPA | G43306-1616 |
