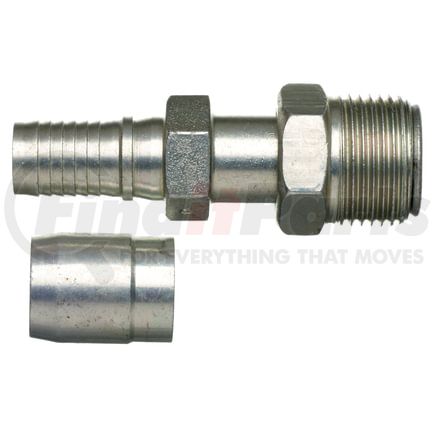

Gates G40500-0808 - SAE Male Inverted Swivel - Steel (C14)
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
SAE Male Inverted Swivel - Steel (C14)
Features & Benefits
- Designed to perform with C14 hose
- Stainless steel, brass or carbon steel
- Recommended for air compressor discharge, hot oil and fluids, hot and greasy environments
- Compliant to SAE100 R14 specification
Product Attributes
| Coupling Description | C14 SAE Male Inverted Swivel - Steel |
| Industrial Description | 8C14-8MIX |
| Thread Size | 3/4-18 |
| Inside Diameter | .406 IN |
| Hydraulic Hose Recommendation | Gates C14 & C14CT |
| Stem Hex Size | .625 IN |
| Nut Hex Size | .75 IN |
| Cut-Off Length | 1.6 IN |
| Length | 2.21 IN |
| Inside Diameter | 10.3 MM |
| Cut-Off Length | 40.6 MM |
| Length | 56.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053320121 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
