GATES G25930-2020 Part Description
Manufacturer
Product Description

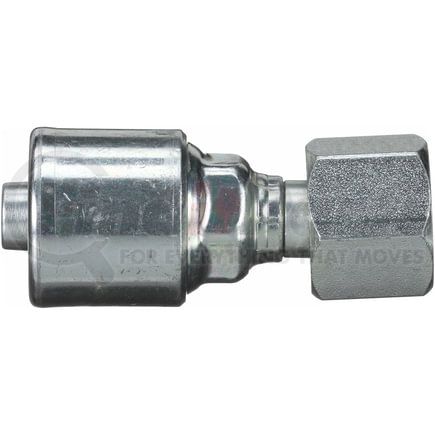

Female Japanese Industrial Standard Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25930-2020 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Japanese Industrial Standard Swivel |
| Industrial Description | 20G-20FJISX |
| Thread Size | 1 1/4-11 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 50 MM |
| Nut Hex Size | 50 MM |
| Cut-Off Length | 2.56 IN |
| Length | 4.89 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 30 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| SAE or Metric Threads | Standard |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 65.1 MM |
| Length | 124.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053776119 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25930-2020 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | UC-JSFX-2020 |
| N/A | 04032830, 1252-2020 |
| NAPA | G25930-2020 |
| Parker | 1FU43-20-20 |
| Weatherhead | 20Z20L, 20U-20L, 20Z-20L |
