GATES G25910-1010X Part Description
Manufacturer
Product Description

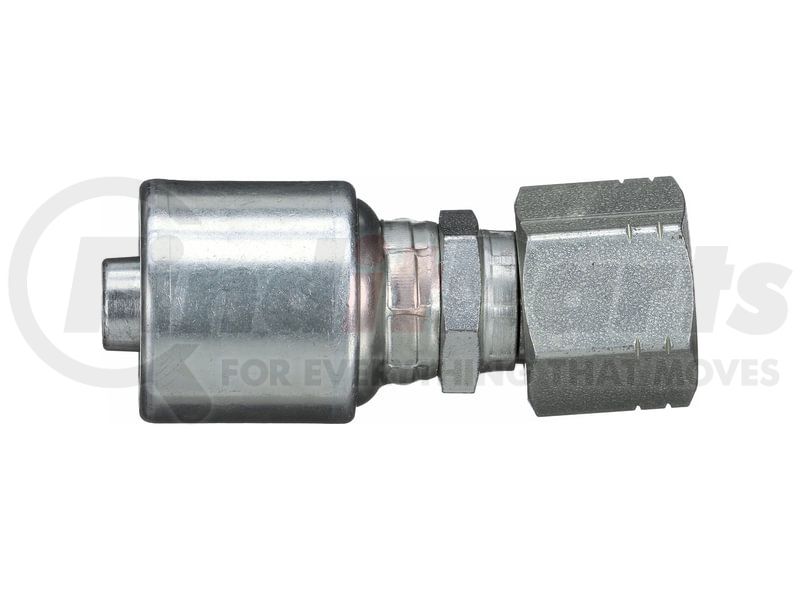

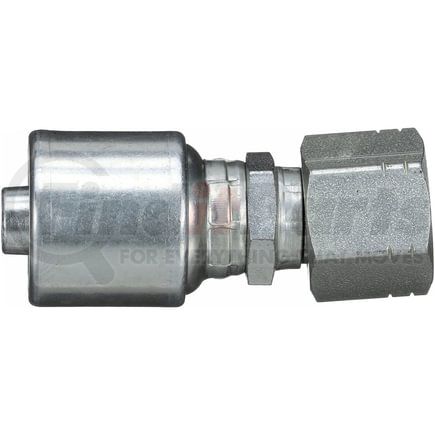

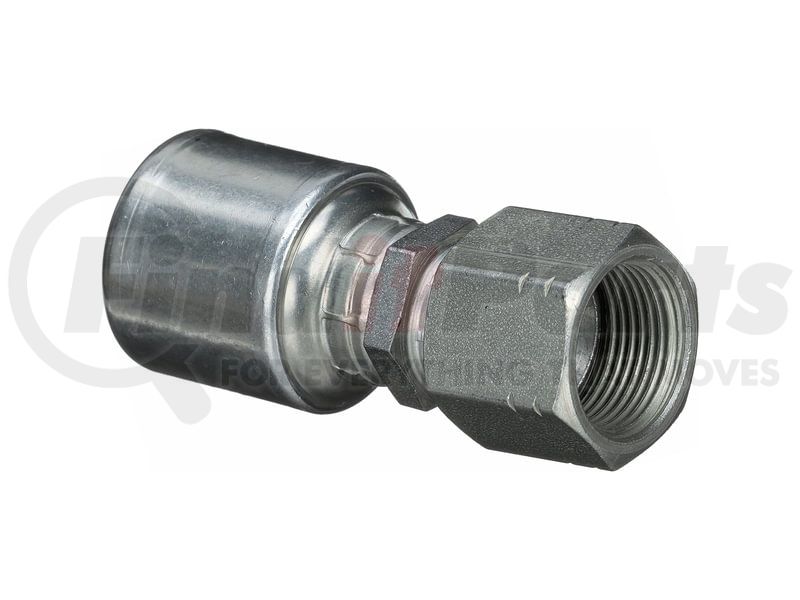

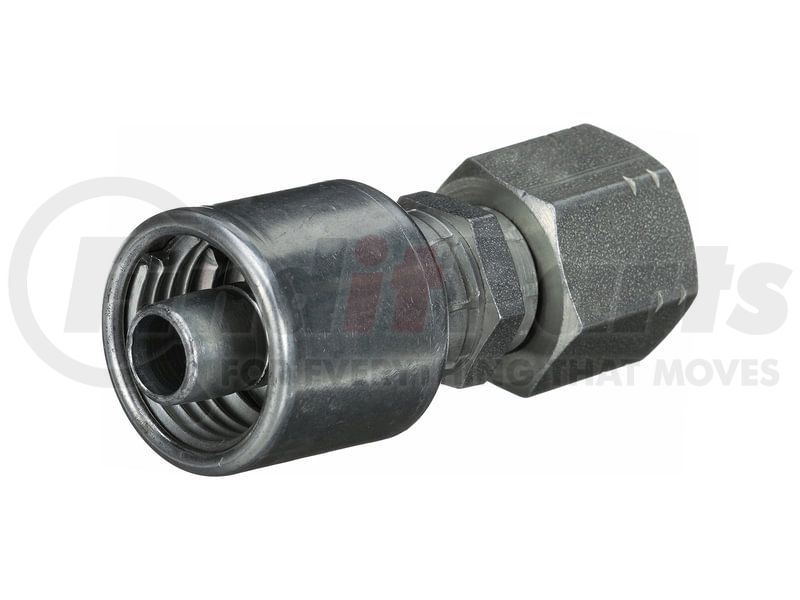

Female Komatsu Style Japanese Metric Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25910-1010X Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Komatsu Style Japanese Metric Swivel |
| Industrial Description | 10G-10FKX XBULK |
| Thread Size | M24X1.5 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |

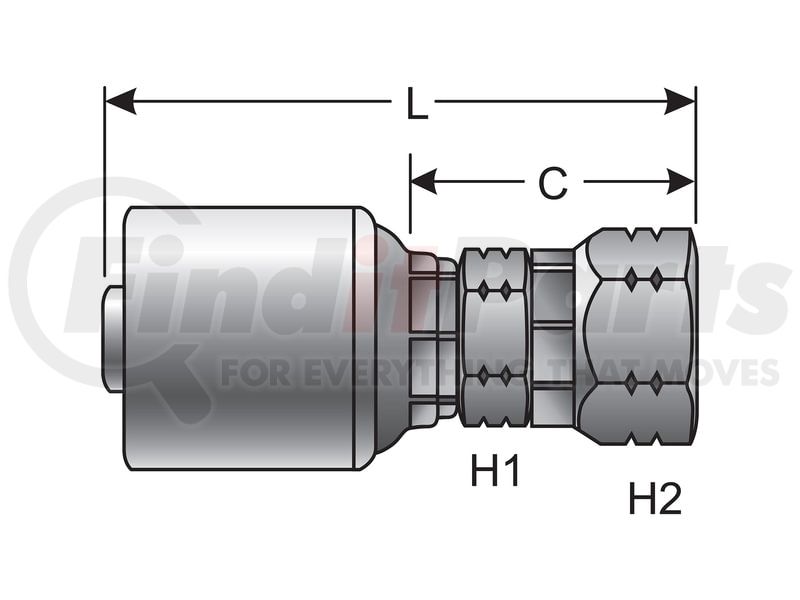

| Stem Hex Size | 24 MM |
| Nut Hex Size | 32 MM |
| Cut-Off Length | 1.73 IN |
| Length | 3.09 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 30 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| SAE or Metric Threads | Metric |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 44 MM |
| Length | 78.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053828719 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25910-1010X Cross References
| Brand | Part Number |
|---|---|
| N/A | 04032805 |
| NAPA | G25910-1010X |
