GATES G25832-2020 Part Description
Manufacturer
Product Description

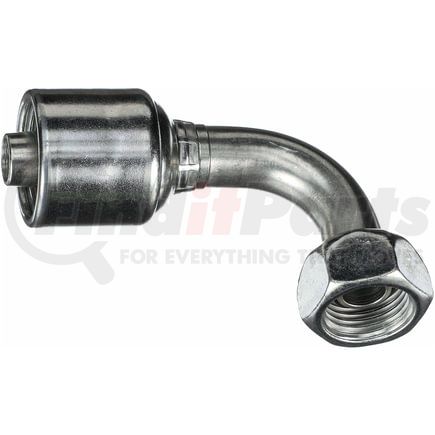

Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25832-2020 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 20G-20FBSPORX90 |
| Thread Size | 1 1/4-11 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 50 MM |
| Drop Length | 3.15 IN |
| Cut-Off Length | 3.64 IN |
| Length | 5.07 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | British |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 30 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 31.8 MM |
| Drop Length | 80 MM |
| Cut-Off Length | 92.4 MM |
| Length | 128.8 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053559675 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25832-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AT20BFB20 |
| Goodyear | UC-BPFX90-2020 |
| N/A | 04032770, 1250-2020, M20892-20-20 |
| NAPA | G25832-2020 |
| Parker | 1B243-20-20 |
| Weatherhead | 20Z-90P |
