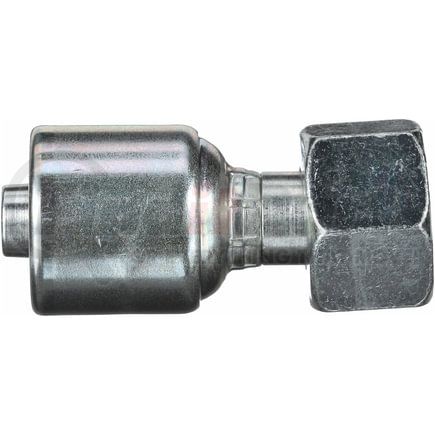

(888) 312-8812 Login SignupGATES G25720-0812 Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
Tap to view 3 more
$5049
Limited availability at this price!
In Stock
Get it by Friday, Aug 7
GATES G25720-0812 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25720-0812 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring |
| Industrial Description | 8G-12FDHORX |
| Thread Size | M20X1.5 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 12 MM |
| Nut Hex Size | 24 MM |
| Cut-Off Length | 1.28 IN |
| Length | 2.75 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Heavy |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 32.4 MM |
| Length | 69.9 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053531145 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25720-0812 Cross References
| Brand | Part Number |
|---|---|
| Continental Belt | B2-DHFX-0820 |
| Dayco | 116160 |
| N/A | 925007003, M21612-08-20 |
| NAPA | G25720-0812 |
