(888) 312-8812 Login SignupGATES G25715-2038 Male DIN 24 Cone - Heavy Series (MegaCrimp)
Tap to view 3 more
$19099
Limited availability at this price!
In Stock
Get it by Friday, Jun 26
GATES G25715-2038 Part Description
Manufacturer
Product Description

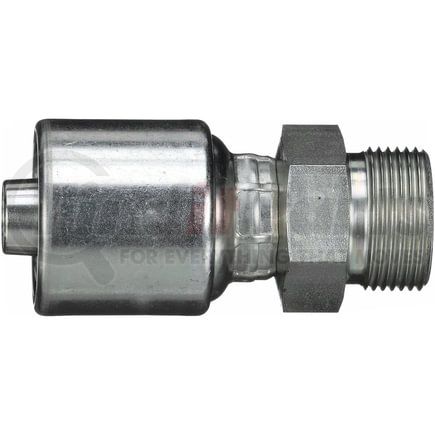

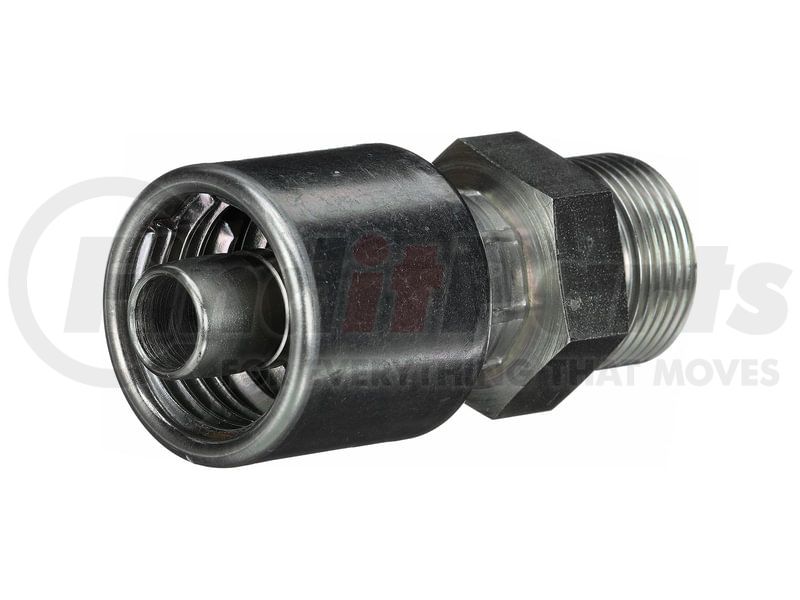

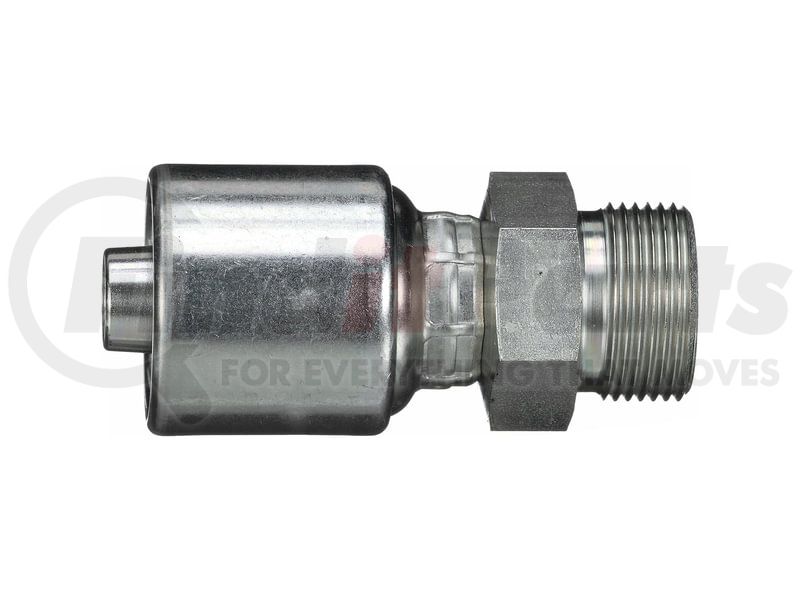

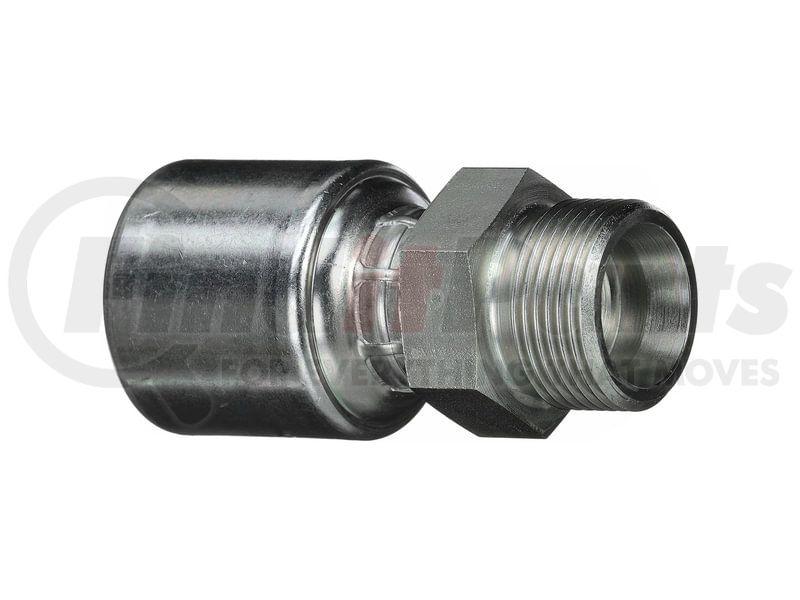

Male DIN 24 Cone - Heavy Series (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25715-2038 Specifications
Product Attributes

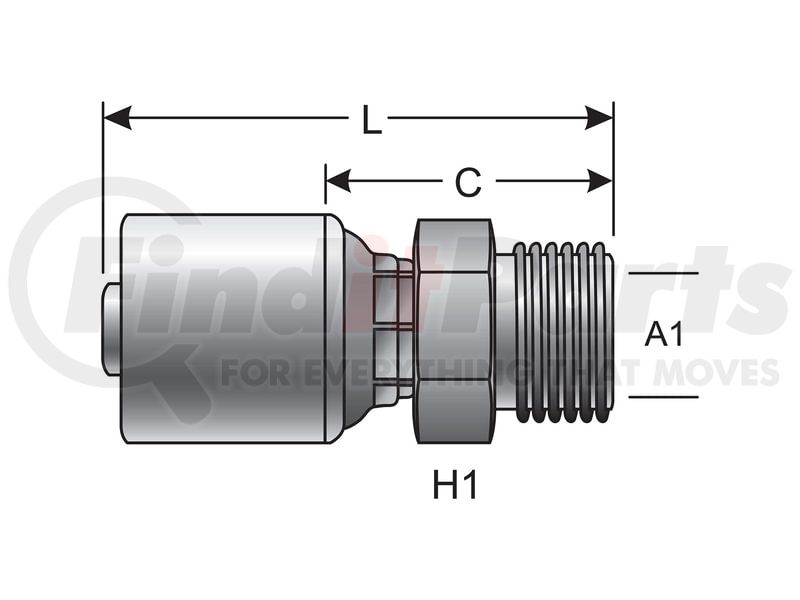

| Coupling Description | MegaCrimp Male DIN 24 Cone - Heavy Series |
| Industrial Description | 20G-38MDH |
| Thread Size | M52X2.0 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 38 MM |
| Stem Hex Size | 55 MM |
| Cut-Off Length | 1.93 IN |
| Length | 3.72 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Heavy |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 49.1 MM |
| Length | 94.4 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00072053497434 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25715-2038 Cross References
| Brand | Part Number |
|---|---|
| Caterpillar | 124-2252 |
| N/A | 04032613, M11210-20-52 |
| NAPA | G25715-2038 |
| Weatherhead | 20Z88C |
