(888) 312-8812 Login SignupGATES G25510-0604 SAE Male Flareless Assembly (MegaCrimp)
Tap to view 3 more
$3549
Limited availability at this price!
In Stock
Get it by Thursday, Jul 30
GATES G25510-0604 Part Description
Manufacturer
Product Description

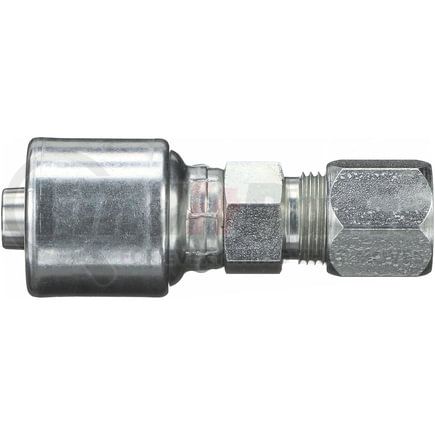

SAE Male Flareless Assembly (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25510-0604 Specifications
Product Attributes
| Coupling Description | MegaCrimp SAE Male Flareless Assembly |
| Industrial Description | 6G-4MFA |
| Thread Size | 7/16-20 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | .625 IN |
| Nut Hex Size | .5625 IN |
| Cut-Off Length | 1.07 IN |
| Length | 2.17 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 24 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 27.1 MM |
| Length | 55 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | MX |
| Stock Status | N |
| UPC | 00072053173307 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
