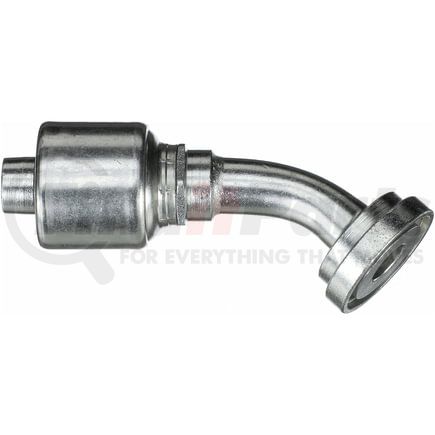

(888) 312-8812 Login SignupGATES G25307-0808 Code 61 O-Ring Flange - 45 Bent Tube (MegaCrimp)
Tap to view 3 more
$8049
Limited availability at this price!
In Stock
Get it by Monday, Jun 29
GATES G25307-0808 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25307-0808 Specifications
Product Attributes
| Coupling Description | MegaCrimp Code 61 O-Ring Flange - 45 Bent Tube |
| Industrial Description | 8G-8FL45M |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Flange Thickness | .27 in |
| Flange Diameter | 1.19 IN |
| Drop Length | .75 IN |
| Cut-Off Length | 2.37 IN |
| Length | 3.39 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flange Groove |
| Termination | Code 61 |
| Bent Tube Angle | 45 |
| Inside Diameter | 12.7 MM |
| Flange Thickness | 6.9 MM |
| Flange Diameter | 30.2 MM |
| Drop Length | 19 MM |
| Cut-Off Length | 60.3 MM |
| Length | 86.2 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053696677 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25307-0808 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1A8FLA8 |
| Caterpillar | 124-2075 |
| Dayco | 109440, HY08-08PA45 |
| Goodyear | 13340-0808, 14340-0808, B2-FL45-0808, UC-FL45-0808 |
| Kurt Hydraulics | C6145-08-08 |
| N/A | 04032410, M23341-08-08 |
| NAPA | G25307-0808 |
| Parker | 11743-8-8, 117HY-8-8 |
| Weatherhead | 08UG41, 08ZG41, 08U-G41, 08Z-G41 |
