(888) 312-8812 Login SignupGATES G25239-0506 Female Flat-Face O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Tap to view 3 more
$48.58
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES G25239-0506 Part Description
Manufacturer
Product Description

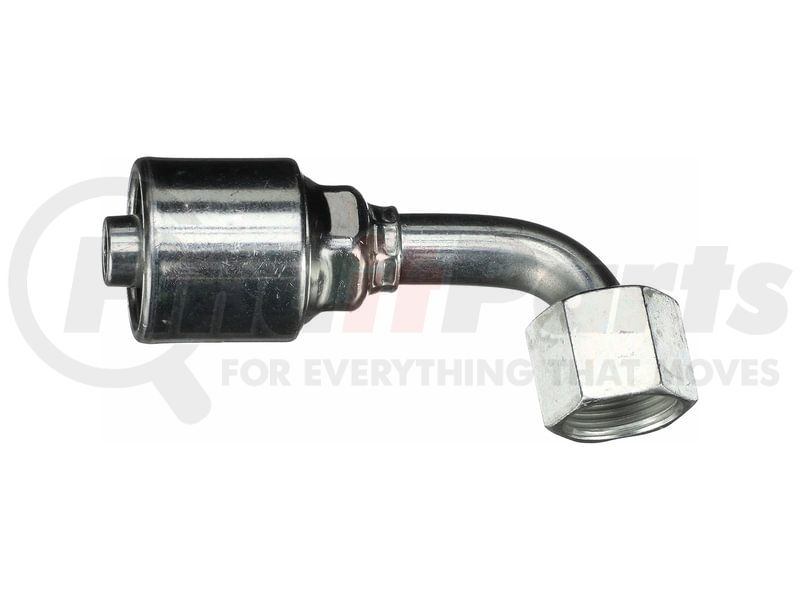

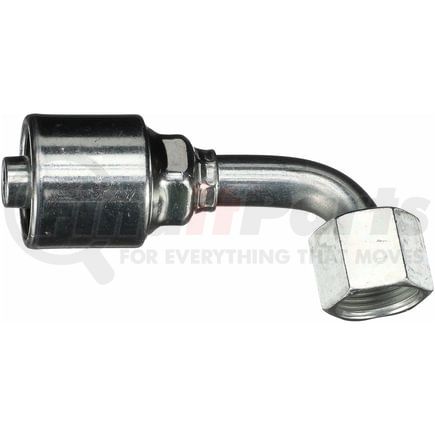

Female Flat-Face O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25239-0506 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 5G-6FFORX90S |
| Thread Size | 11/16-16 |
| Inside Diameter | .3125 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |

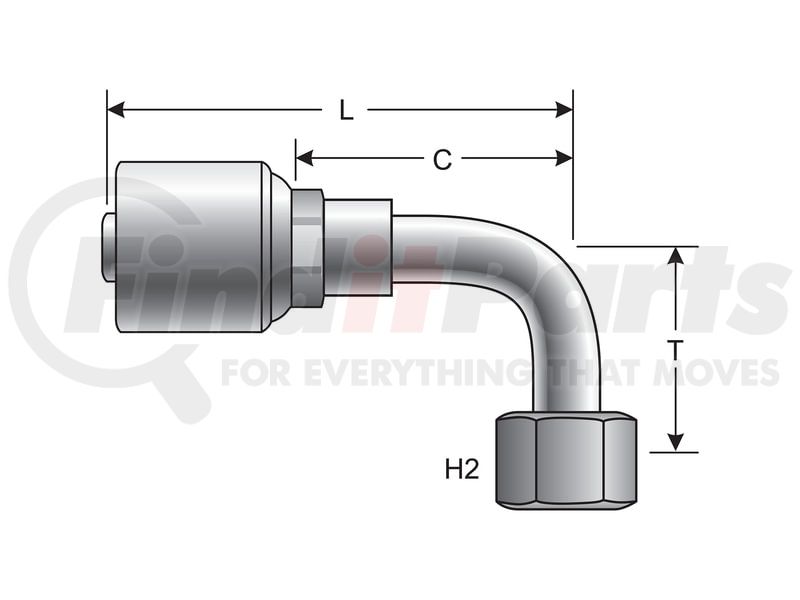

| Nut Hex Size | 22 MM |
| Drop Length | .91 IN |
| Cut-Off Length | 1.73 IN |
| Length | 2.83 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 7.9 MM |
| Drop Length | 23 MM |
| Cut-Off Length | 44 MM |
| Length | 72 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053776249 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
